Gap Dimensions Of Rear Door

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

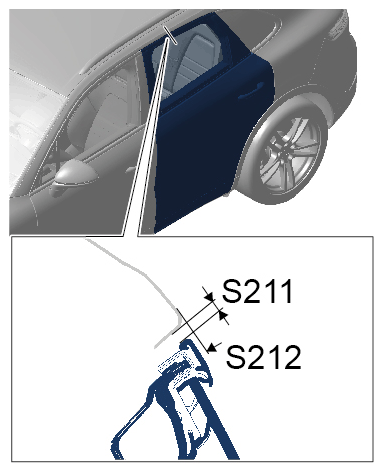

Moulding to side panel (S211)		Gap dimension	4.9 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Moulding to side panel (S212)	Offset	Gap dimension	- 0.8 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

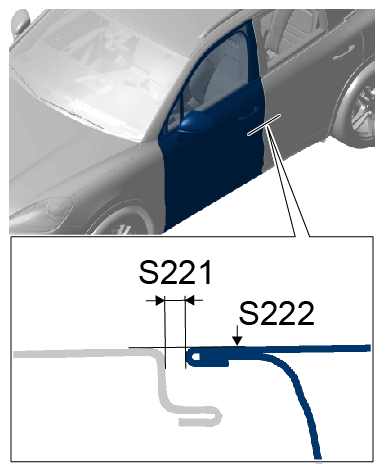

Front door to rear door (S221)		Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front door to rear door (S222)	Offset	Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

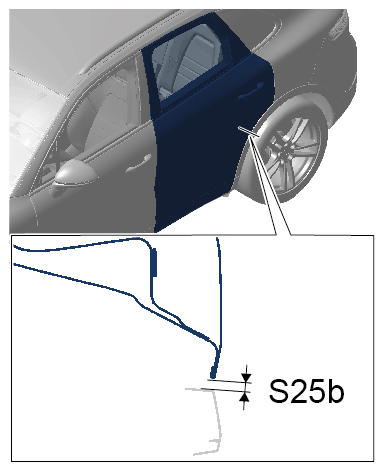

Wheel arch trim to rear door (S25b)		Gap dimension	3.4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

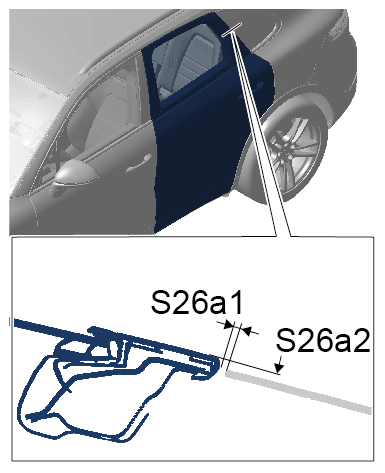

C-pillar cover to rear window (S26a1)		Gap dimension	3.4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
C-pillar cover to rear window (S26a2)	Offset	Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

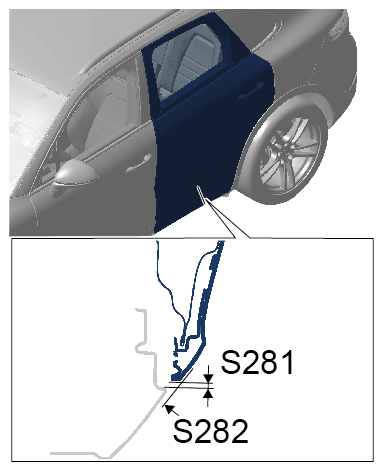

Door sill to door trim panel (S281)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Door sill to door trim panel (S282)	Offset	Gap dimension	- 4.8 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
