Gap Dimensions Of Front Lid

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

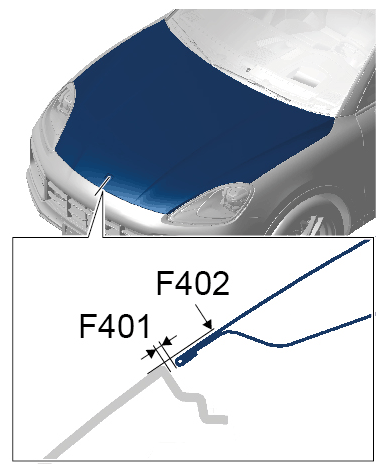

Front apron to front lid (F401)		Gap dimension	2.9 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front apron to front lid (F402)	Offset	Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

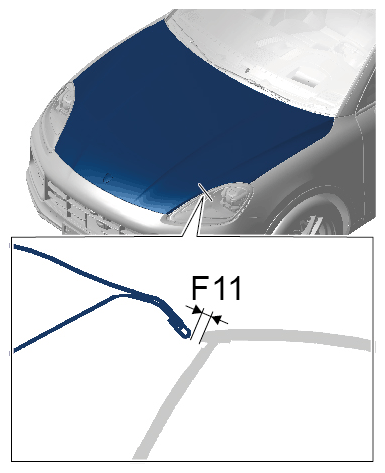

Main headlight to front lid (F11)		Gap dimension	2.9 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

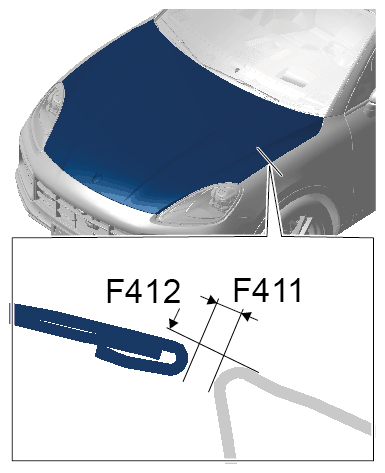

Front lid to wing (F411)		Gap dimension	2.9 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (F412)	Offset	Gap dimension	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
