WM, 5X00IN41 Gap Dimension: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1

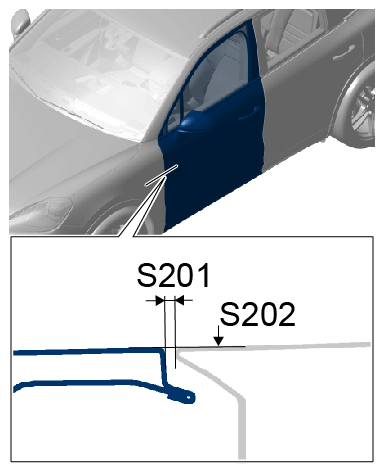

Wing to door (S201)		Gap dimension	3.4 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Wing to door (S202)	Offset	Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

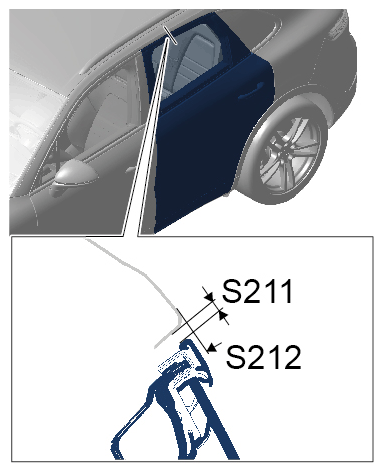

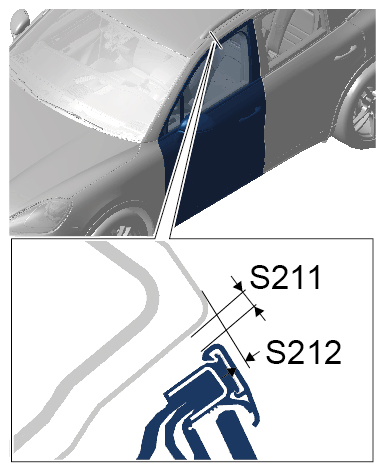

Moulding to side panel (S211)		Gap dimension	4.9 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Moulding to side panel (S212)	Offset	Gap dimension	- 0.8 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

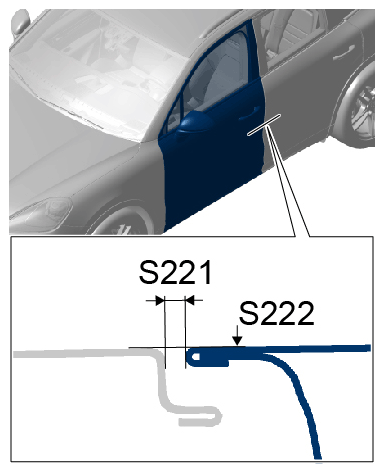

Front door to rear door (S221)		Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front door to rear door (S222)	Offset	Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

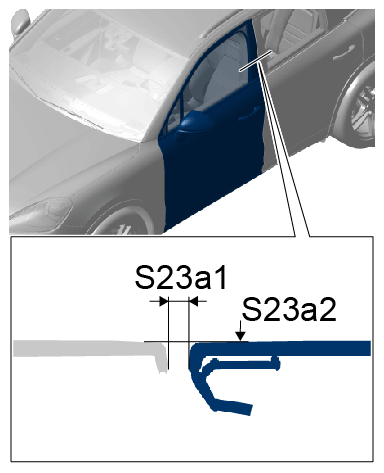

Trim, front to rear (S23a1)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Trim, front to rear (S23a2)	Offset	Gap dimension	0 mm	+ 1.5 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

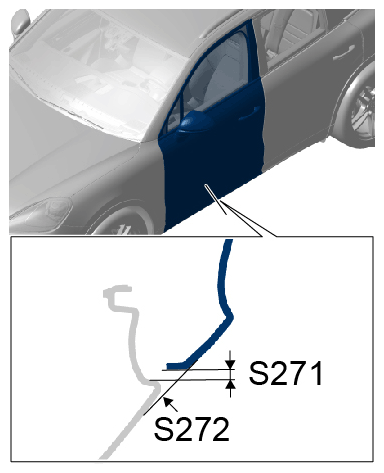

Door sill to door (S271)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Door sill to door (S272)	Offset	Gap dimension	- 3 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Moulding to side panel (S211)		Gap dimension	4.9 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Moulding to side panel (S212)	Offset	Gap dimension	- 0.8 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front door to rear door (S221)		Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front door to rear door (S222)	Offset	Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

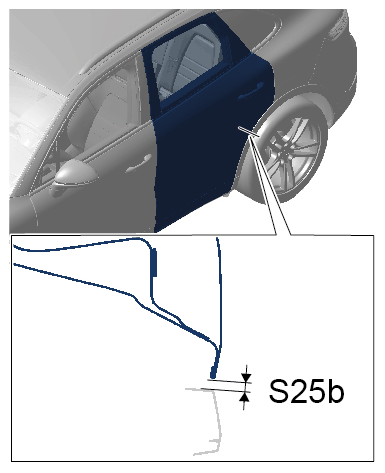

Wheel arch trim to rear door (S25b)		Gap dimension	3.4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

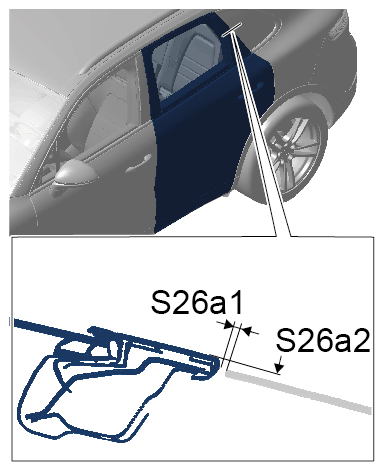

C-pillar cover to rear window (S26a1)		Gap dimension	3.4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
C-pillar cover to rear window (S26a2)	Offset	Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

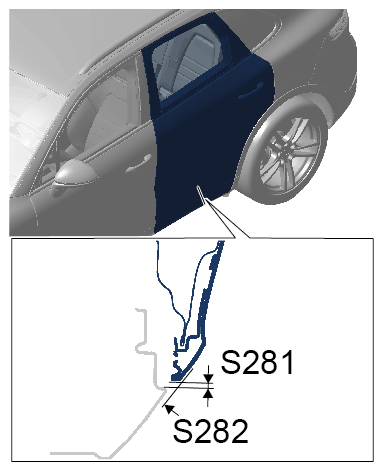

Door sill to door trim panel (S281)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Door sill to door trim panel (S282)	Offset	Gap dimension	- 4.8 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

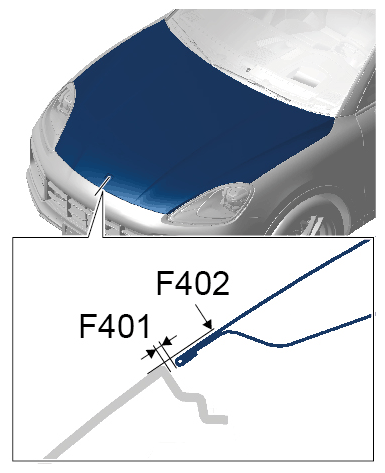

Front apron to front lid (F401)		Gap dimension	2.9 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front apron to front lid (F402)	Offset	Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

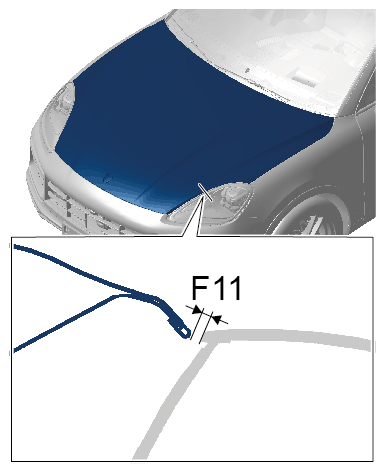

Main headlight to front lid (F11)		Gap dimension	2.9 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

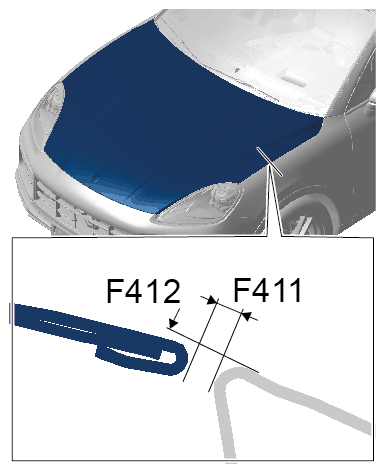

Front lid to wing (F411)		Gap dimension	2.9 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (F412)	Offset	Gap dimension	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

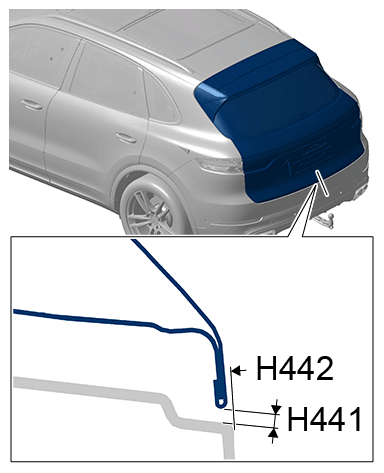

Rear lid to rear apron (H441)		Gap dimension	4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron (H442)	Offset	Gap dimension	1 mm	+ 1.4 mm,- 1 8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

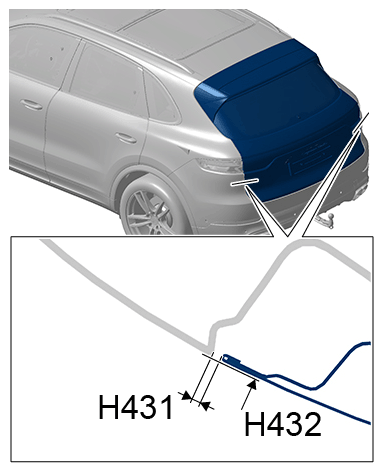

Rear lid to rear apron, side (H431)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron, side (H432)	Offset	Gap dimension	0.7 mm	+ 0.6 mm,- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

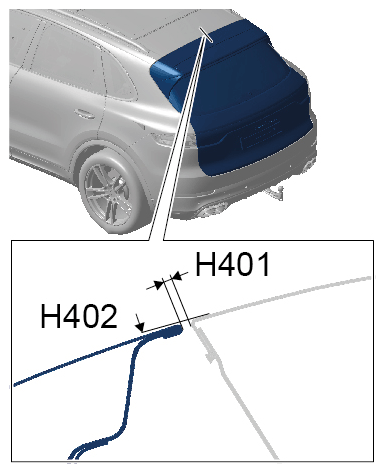

Rear lid to roof (H401)		Gap dimension	5.5 mm	+ 1.5 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof (H402)	Offset	Gap dimension	- 1.2 mm	+ 1 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Fin to roof spoiler (HP258_1)	Offset	Gap dimension	0.4 mm	+ 0.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_2)	Gap	Gap dimension	5.2 mm	+ 1.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_2)	Offset	Gap dimension	0.6 mm	+ 0.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_3)	Gap	Gap dimension	5.1 mm	+ 1.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_3)	Offset	Gap dimension	0.3 mm	+ 0.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_4)	Gap	Gap dimension	4.7 mm	+ 1.5 mm,- 0.5 mm
Fin to roof spoiler (HP258_4)	Offset	Gap dimension	0 mm	+ 0.5 mm,- 0.5 mm
Fin to side panel (HP260)	Gap	Gap dimension	3.5 mm
Fin to roof (HP261_1)	Gap	Gap dimension	2.5 mm	+ 0.5 mm,- 0.5 mm
