Rear Lid (Coupe)

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear lid

Rear lid
> Tightening torque 12 N.m (9 ft.lb)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge

Rear lid hinge
> Tightening torgue 23 N.m (17 ft.lb)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for guide wedge

> Tightening torgue 6 N.m (4.5 ft.lb)
Guide wedge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball hitch

Ball hitch
> Tightening torgue 10 N.m (7.5 ft.lb)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover

> Tightening torque 4 N.m (3 ft.lb)
Number plate cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock, rear

Upper part of lid lock, rear
Cover section for anti-theft protection
Electric plug connection
> Tightening torque 30 N.m (22 ft.lb)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear lid lock

> Tightening torque 21 N.m (6 ft.lb)
Lower part of rear lid lock

Location	Description	Type	Basic value	Tolerance

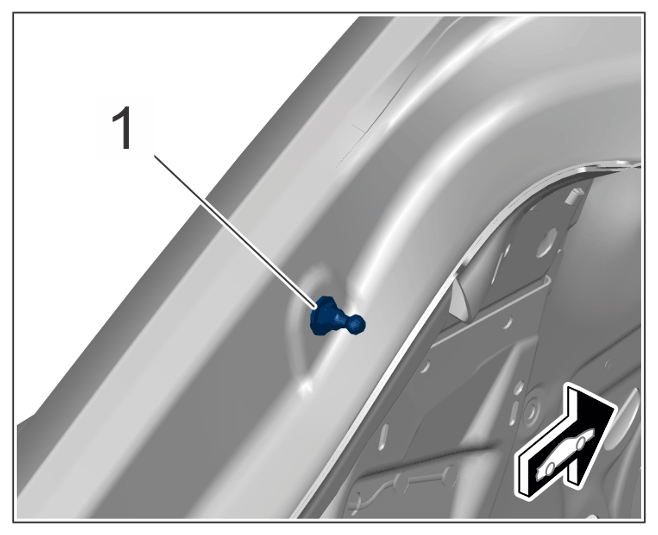

Ball joint for actuating cylinder to body	Item 1/Tighten again after a waiting time of 5 minutes	Tightening torque	25 N.m (19 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball joint
