Lock Carrier

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

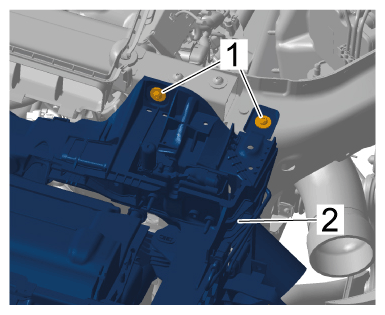

Screws securing upper lock carrier to body front section	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

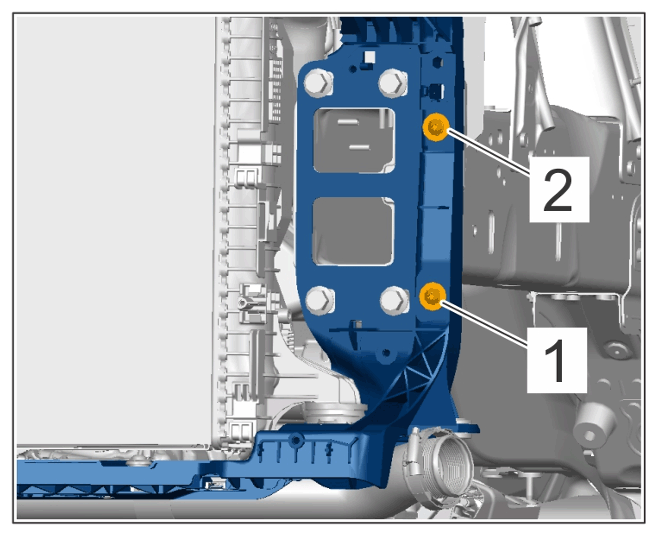

Bottom screw securing lower lock carrier to longitudinal member (off-road)	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
Top screw securing lower lock carrier to longitudinal member (off-road)	Item 2	Tightening torque	25 N.m (19 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screws securing lower lock carrier to longitudinal member	Item 1	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

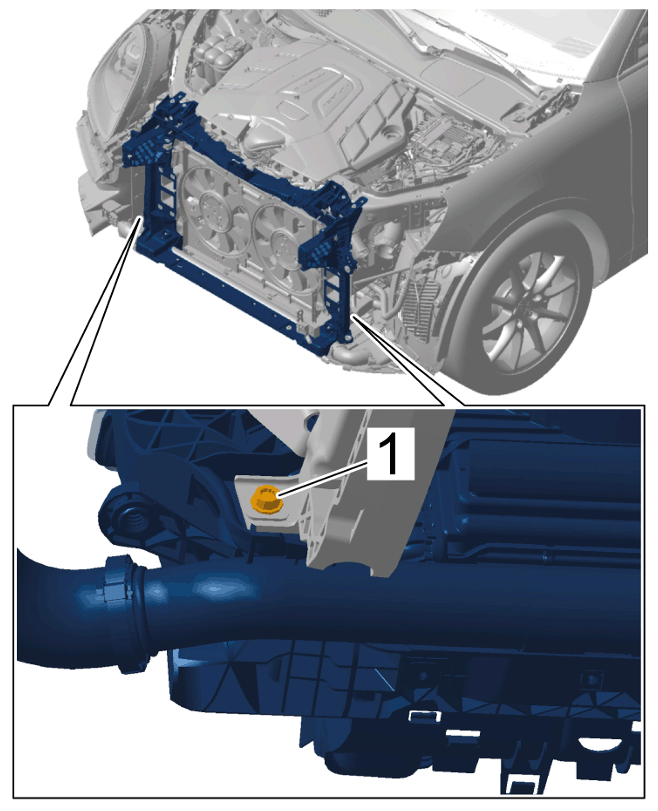

Screw securing radiator holder to lock carrier	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for radiator holder

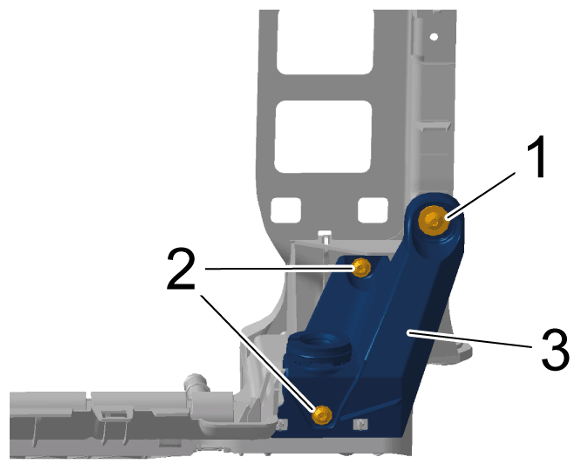

Screws securing radiator holder to lock carrier at the side	Item 2	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for radiator holder

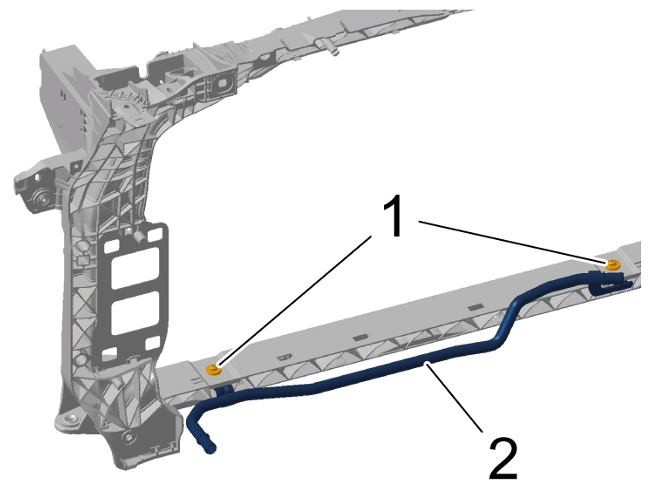

Screws securing lower coolant line to lock carrier	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

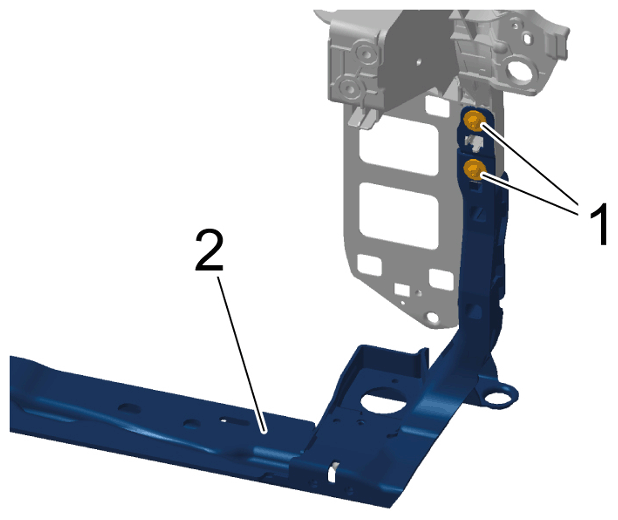

Screws securing lock carrier lower part to lock carrier upper part (off-road)	Item 1	Tightening torque	9 N.m (6.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lower part of lock carrier

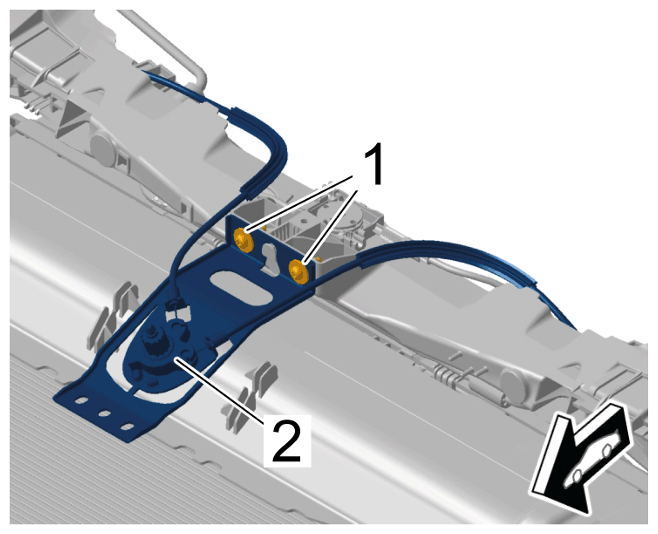

Screws securing lid lock cable to carrier module	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws and release element
