Heat Shields On Underbody

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Heat shield on underbody, right	Item 2	Tightening torque	2.5 N.m (1.75 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shields on right underbody
Heat shield on centre tunnel, left	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Heat shield on cardan shaft centre bearing	Item 3	Tightening torque	2.1 N.m (1.5 ft.lb)

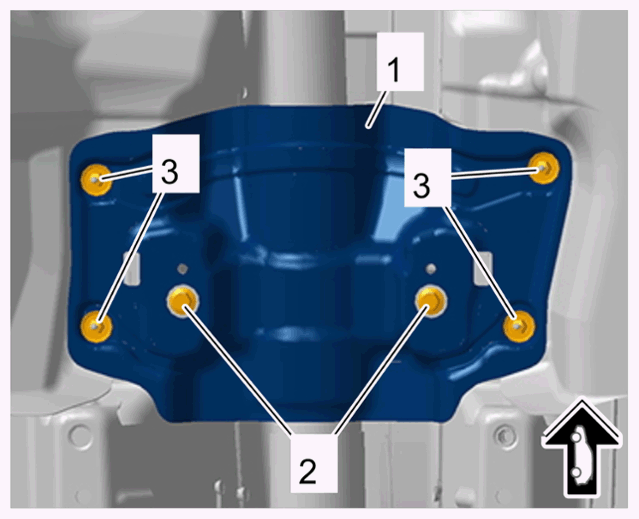

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield for cardan shaft
Cardan shaft centre bearing	Item 2	Tightening torque	20 N.m (15 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield for cardan shaft
Heat shield on tunnel, left	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on underbody, left
Heat shield on tunnel, left	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Fastening nut securing heat shield to rear silencer	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Nut on heat shield on longitudinal member, left	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
