Heat Shields On Engine Compartment

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Nuts securing heat shield on firewall upper section to body	Item 2	Tightening torque	2.5 N.m (1.75 ft.lb)

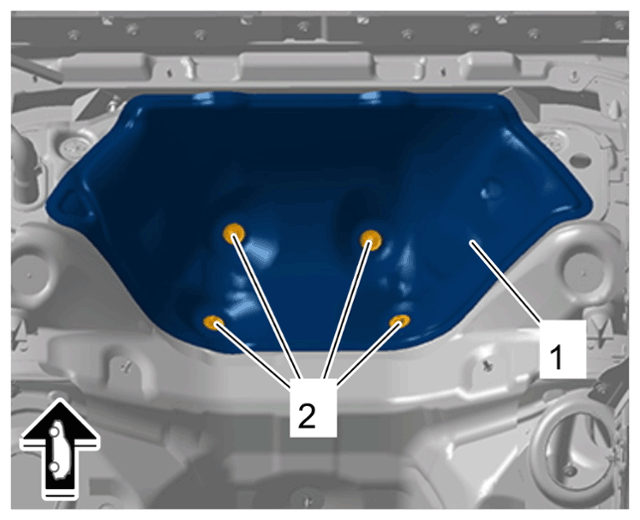

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on firewall upper section
Nuts securing heat shield on right longitudinal member to body	Item 2	Tightening torque	2.5 N.m (1.75 ft.lb)

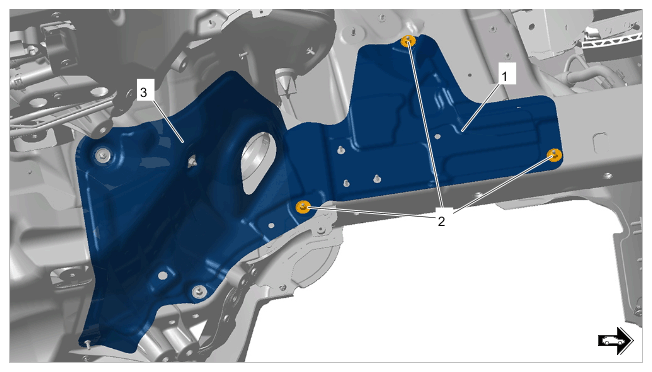

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat protection on right longitudinal member
Nuts securing heat shield on front right longitudinal member to body	Item 2	Tightening torque	5 N.m (3.5 ft.lb)

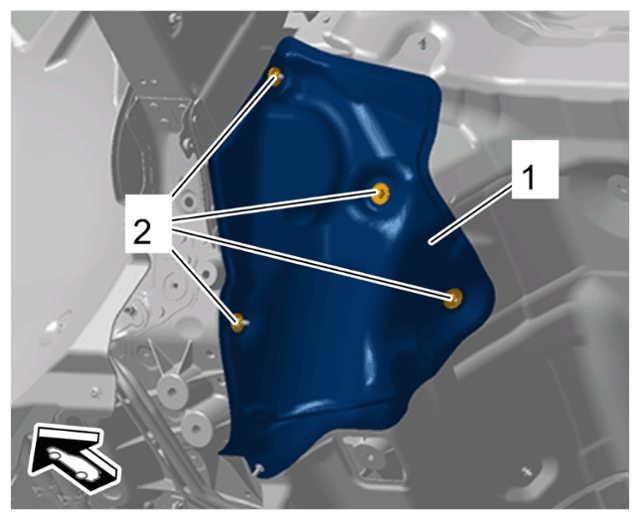

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat protection on front right longitudinal member
Nuts securing heat shield on left longitudinal member to body	Item 2	Tightening torque	2.5 N.m (1.75 ft.lb)

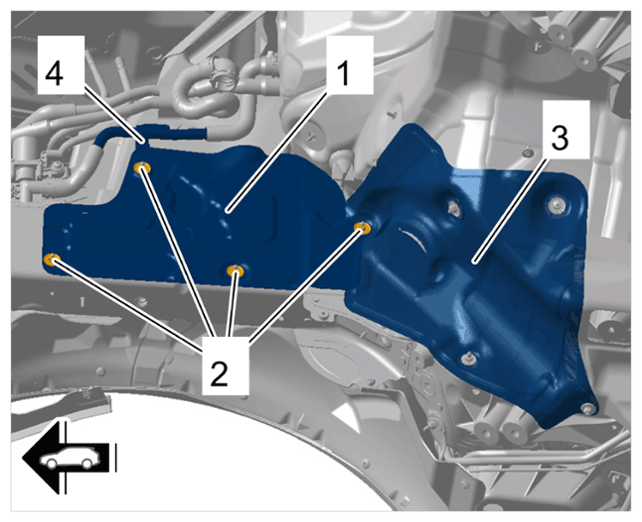

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on left longitudinal member
Nuts securing heat shield on front left longitudinal member to body	Item 2	Tightening torque	5 N.m (3.5 ft.lb)

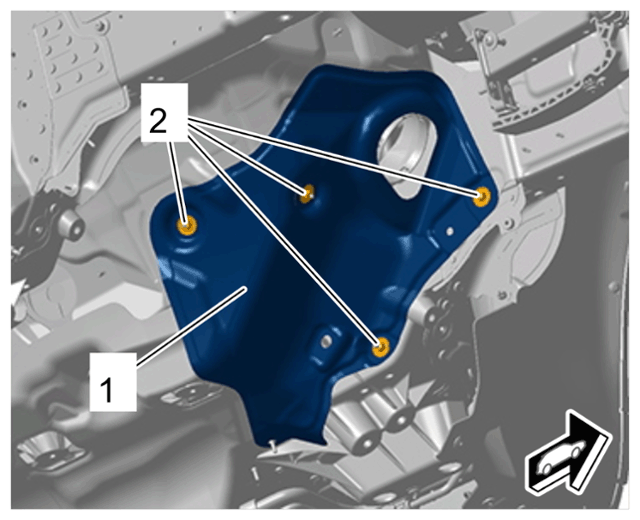

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on front left longitudinal member
