Headlight Mounting

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Fastening screws for headlight mounting Item 2 Tightening torque 6 N.m (4.5 ft.lb)

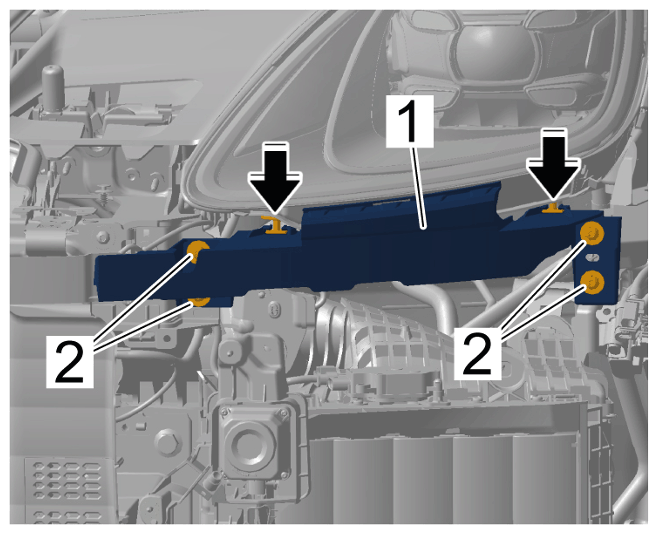

G14274202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlight mounting
