Front Wing

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

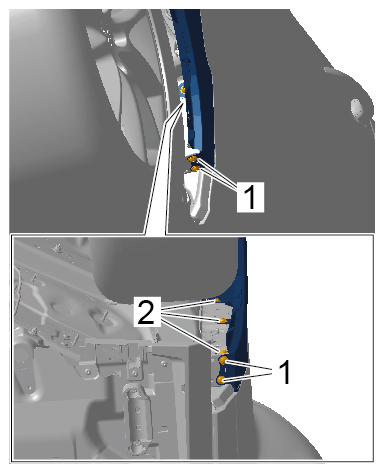

Front wing connection panel to upper front-end	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

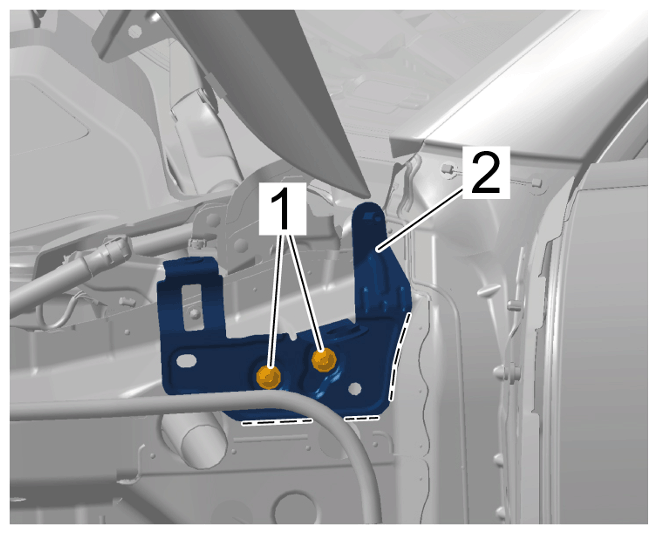

Rear wing connection panel to upper front-end	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

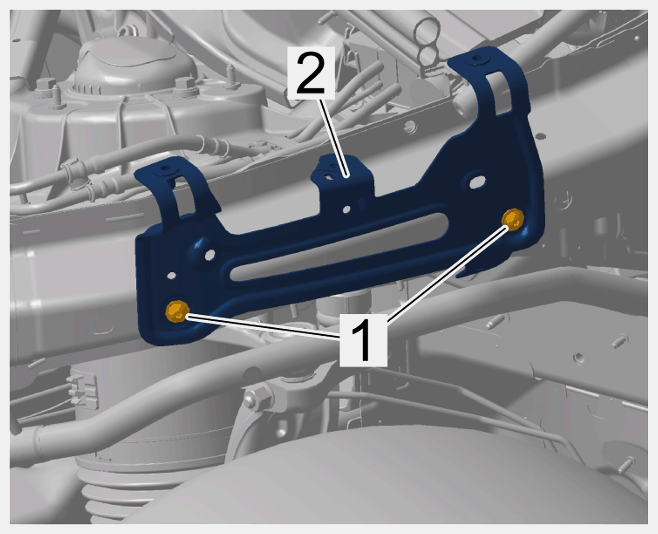

Front wing to lower front-end	Item 1 and 2	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

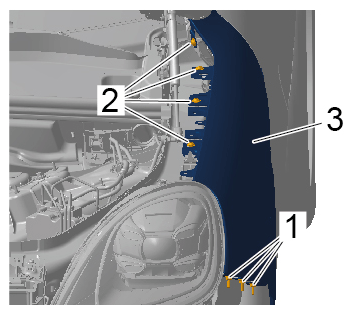

Front wing to upper front-end	Item 1 and 2	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

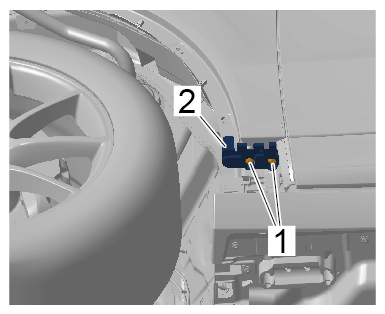

Bracket to wing	Item 1	Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

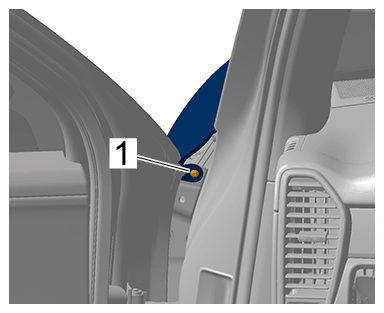

Front wing - rear fastening screw, top	Item 1	Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper fastening screw
