Front Underbody Cover

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Front section of front underbody cover	Item 2	Tightening torque	3 N.m (2 ft.lb)

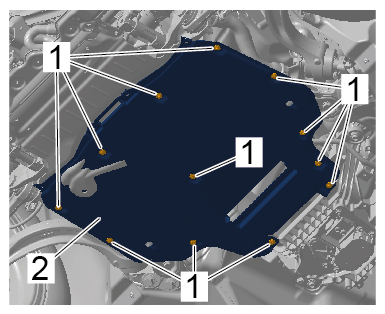

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front section of front underbody cover
Front section of front underbody cover	Item 1	Tightening torque	6 N.m (4.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front section of front underbody cover
Rear section of front underbody cover	Item 1	Tightening torque	3 N.m (2 ft.lb)

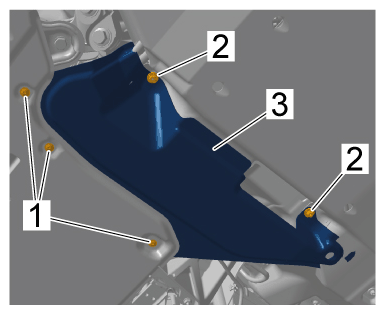

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear section of front underbody cover
Side section of front underbody cover	Item 2	Tightening torque	3 N.m (2 ft.lb)

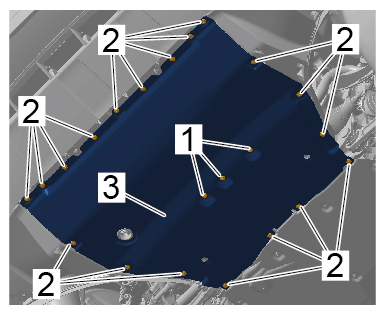

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for front underbody cover
