Front Lid

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

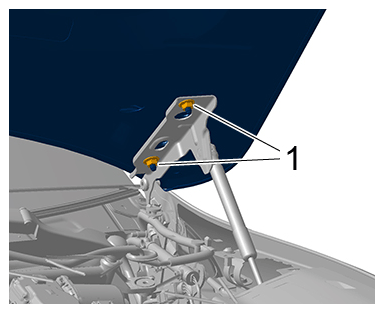

Fastening screws for front lid release	Item 1	Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

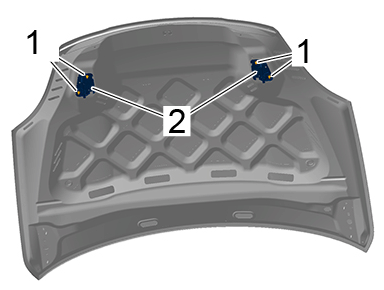

Lid to lid hinge	Item 1	Tightening torque	24 N.m (18 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

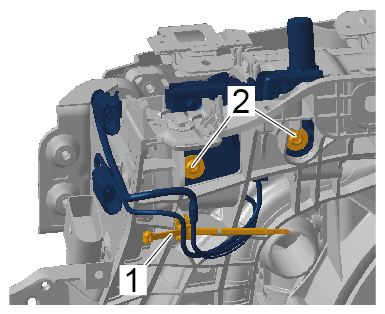

Upper part of lid lock to lid	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of lid lock
Lower part of lock to lock carrier	Item 2	Tightening torque	11 N.m (8 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

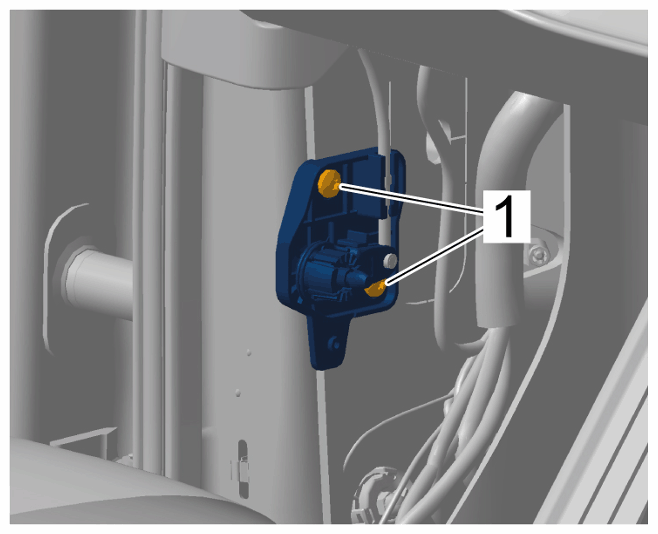

Front lid hinge to bodyshell	Item 1	Tightening torque	21 N.m (16 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid hinge
