Front Heat Shield
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |
| Front heat shield, side |
Item 1 |
Tightening torque |
9 N.m (6.5 ft.lb) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

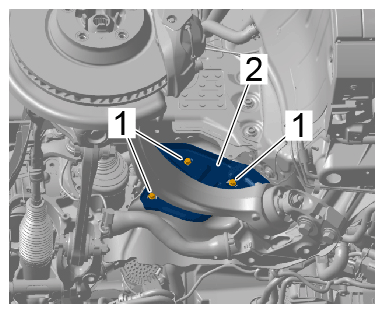

Front heat shield, side |
|
|
|
|
| Front heat shield, bottom |
Item 1 |
Tightening torque |
9 N.m (6.5 ft.lb) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

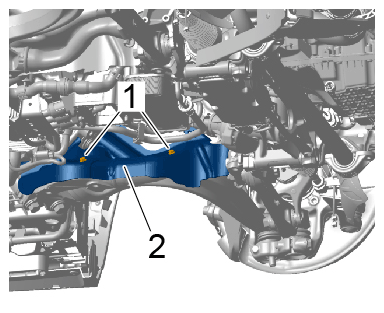

Front heat shield, bottom |
|
|
|
|
