Dashboard Bracket

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

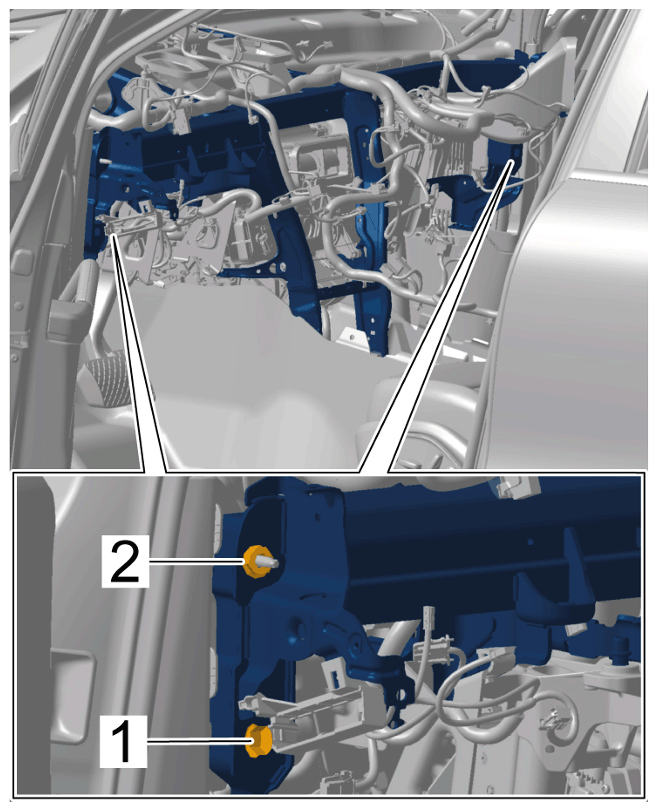

Screws on pillars	Item 1	Tightening torque	20 N.m (15 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Nuts on pillars	Item 2	Tightening torque	20 N.m (15 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

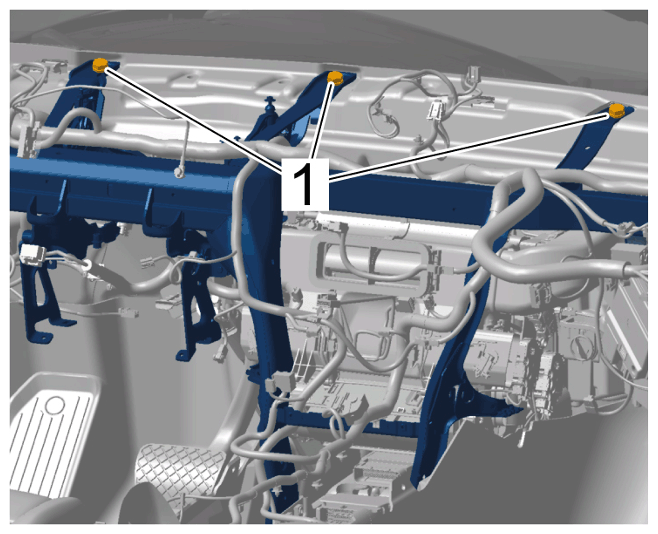

Screws, top	Item 1	Tightening torque	20 N.m (15 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

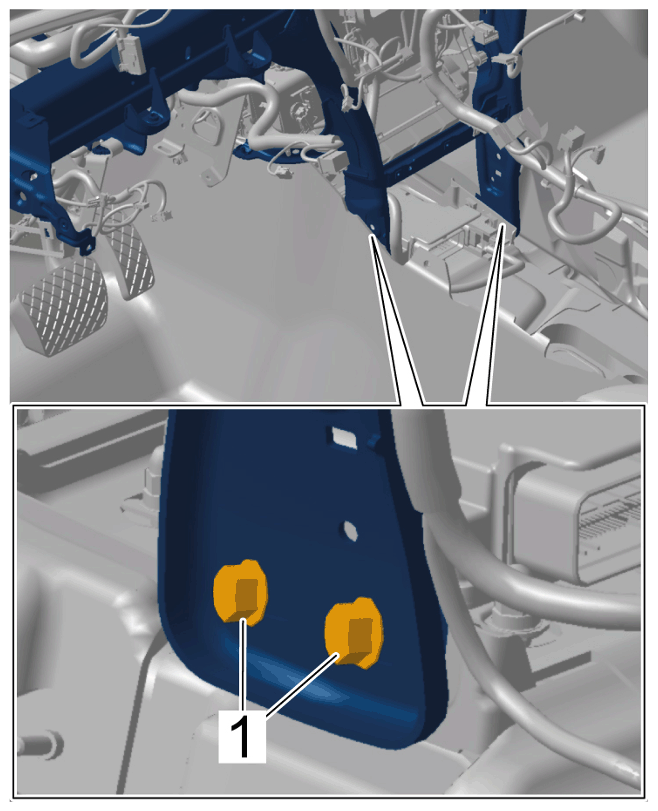

Screws, bottom	Item 1	Tightening torque	20 N.m (15 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Carpet

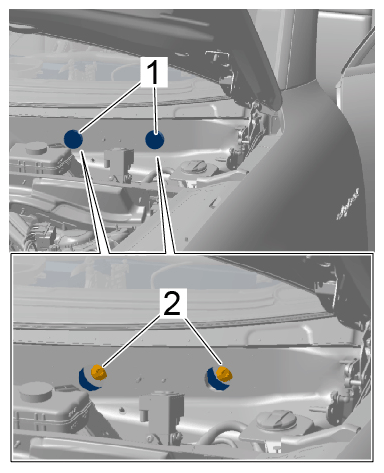

Screws, front	Item 2	Tightening torque	20 N.m (15 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Stoppers
