Cross Panel

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance
Nut securing power distributor at the front to external power connection	Item 3	Tightening torque	9 N.m (6.5 ft.lb)

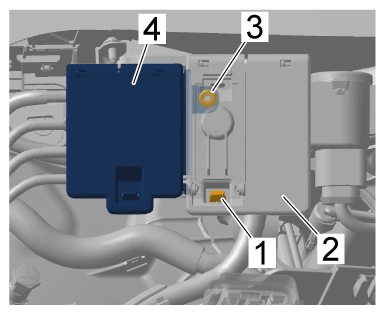

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power distributor, front
Nuts securing external power connection to bracket	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

Location	Description	Type	Basic value	Tolerance
Spring nuts securing heat protection panel to cross panel	Item 1	Tightening torque	2.5 N.m (1.75 ft.lb)

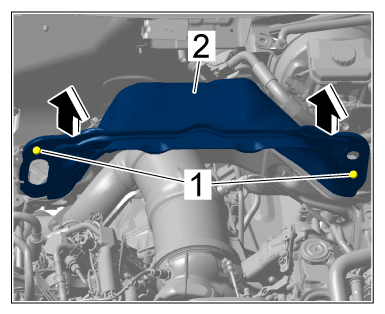

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross panel

Location	Description	Type	Basic value	Tolerance
Screws securing cross panel to bracket	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

Location	Description	Type	Basic value	Tolerance
Screws securing cross panel (lower section) to body	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross panel (lower section)
