Cover For Centre Underbody
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |
| Fastening screws for centre underbody cover |
Item 2 and 3 |
Tightening torque |
3 (2 ftlb.) N m |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

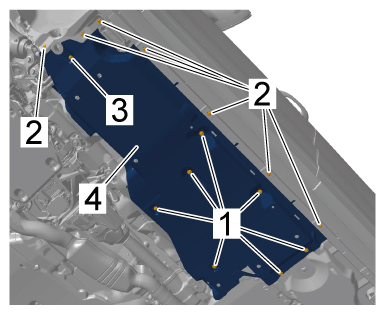

Cover for centre underbody |
|
|
|
|
| Fastening nuts for centre underbody cover |
Item 1 |
Tightening torque |
2 N.m (1.5 ft.lb) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cover for centre underbody |
|
|
|
|
