WM, 5X00IN40 Technical Values: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2

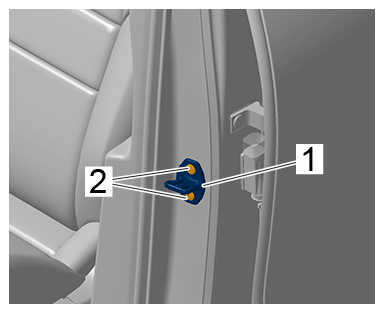

Lock peg to bodyshell Item 2 Tightening torque 25 N.m (19 ft.lb)
G14274004Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg (striker pin)

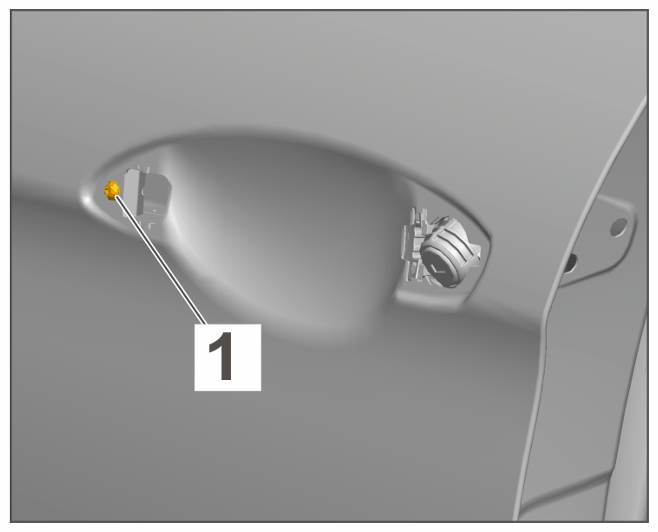

Screw for door handle (inner part) Item 1 Tightening torque 1.5 N.m (1 ft.lb)
G14274005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for door handle

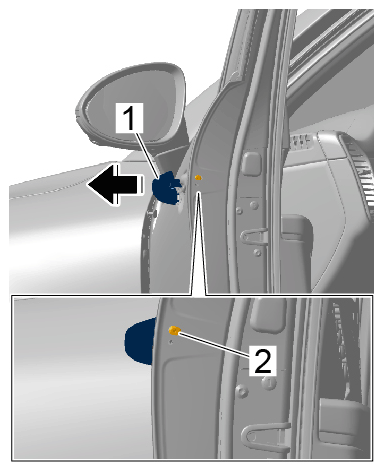

Adjusting screw for door handle in service position Item 2 Tightening torque 3.5 N.m (2.6 ft.lb)
G14274006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door handle in service position

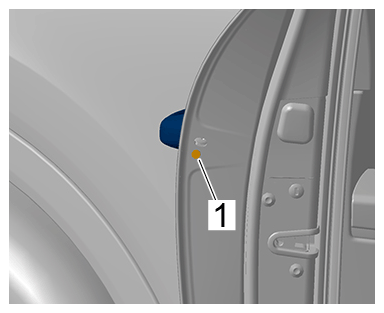

Screw on door handle Item 1 Tightening torque 2.5 N.m (1.9 ft.lb)
G14274007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Door lock to door Item 1 Tightening torque 19 N.m (14 ft.lb)
G14274008Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door lock

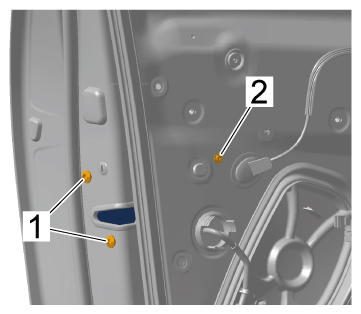

Fastening anti-theft protection cover to door Item 2 Tightening torque 3.5 N.m (2.6 ft.lb)
G14274009Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door lock

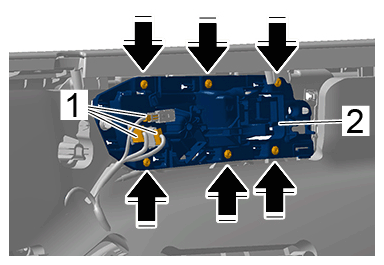

Door opener to door panel Arrows Tightening torque 2.8 N.m (2.1 ft.lb)
G14274010Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

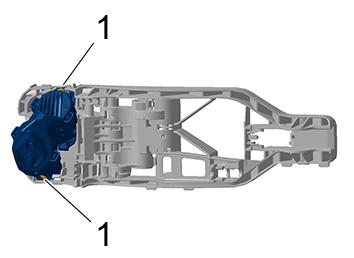

Lock cylinder to door handle inner part Item 1 Tightening torque 0 N.m (0 ft.lb)
G14274011Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Door arrester to bodyshell Item 1 Tightening torque 33 N.m (24 ft.lb)
G14274012Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

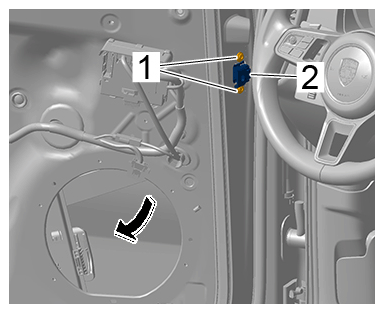

Door arrester to door Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274013Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing door arrester to door

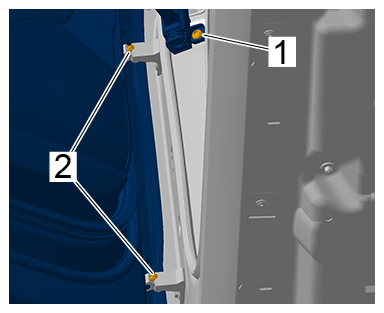

Door hinge Item 2 Tightening torque 27 N.m (20 ft.lb)
G14274014Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

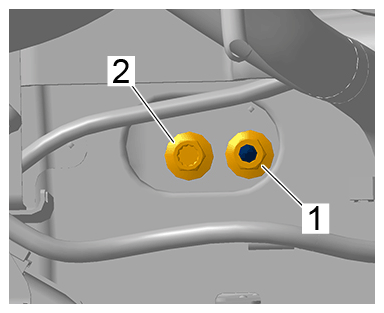

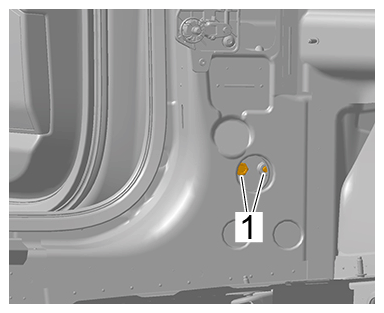

Door hinges to bodyshell Items 1 and 2 Tightening torque 32 N.m (24 ft.lb)
+ 45°
G14274015Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Top nut
G14274016Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom nut

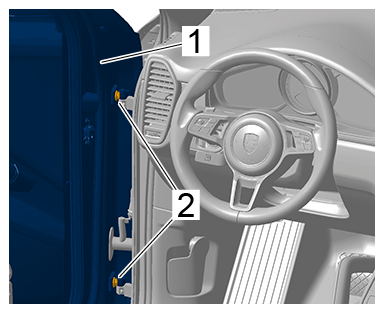

Screws securing door hinges to door Item 1 Tightening torque 50 N.m (37 ft.lb)
G14274017Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge

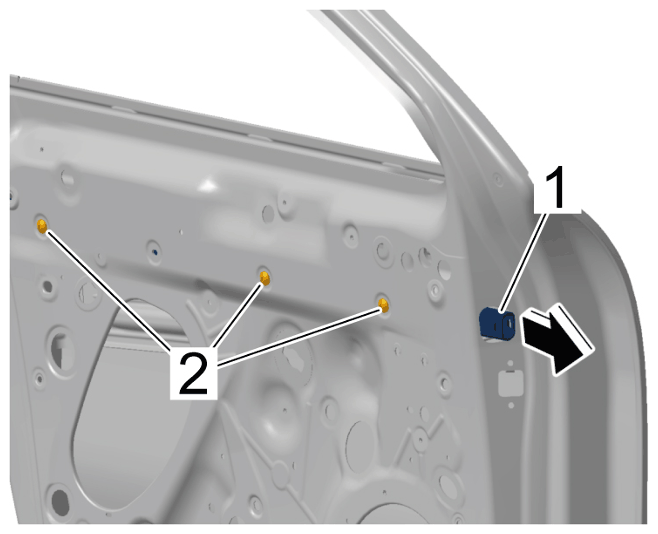

Screws securing guide rail to door Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274018Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail

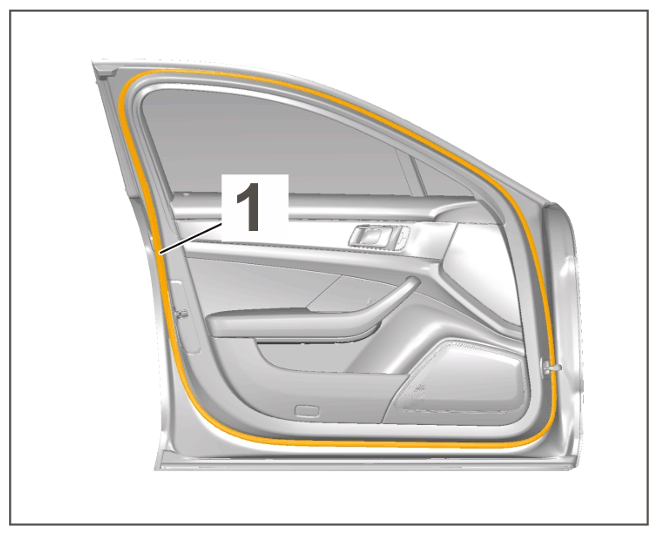

Contact force on bonding area on door   Contact force 50 N
G14274019Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area on door

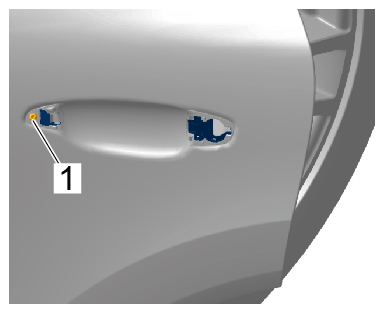

Screw securing door handle (inner part) to bodyshell Item 1 Tightening torque 1.5 N.m (1 ft.lb)
G14274020Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on door handle (inner part)

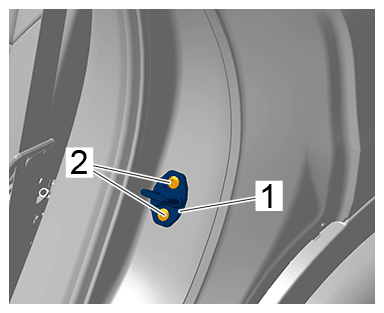

Lock peg to bodyshell Item 2 Tightening torque 25 N.m (19 ft.lb)
G14274021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear striker pin (lock peg)

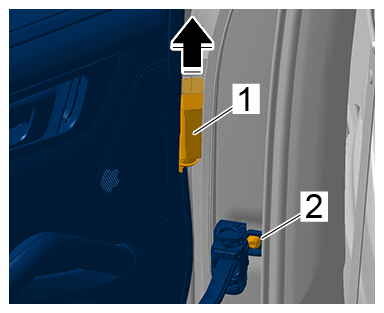

Door arrester to bodyshell Item 1 Tightening torque 33 N.m (24 ft.lb)
G14274022Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

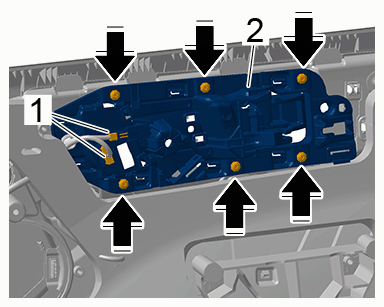

Door opener to door panel Arrows Tightening torque 2.8 N.m (2.1 ft.lb)
G14274023Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

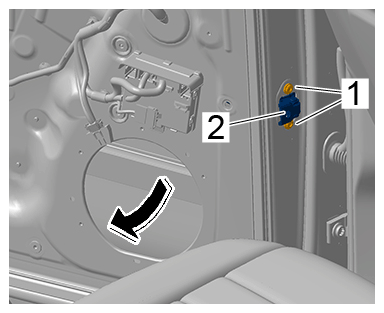

Door arrester to door Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274024Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door arrester

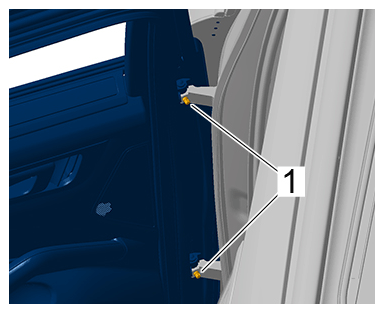

Door hinge Item 1 Tightening torque 27 N.m (20 ft.lb)
G14274025Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door hinge

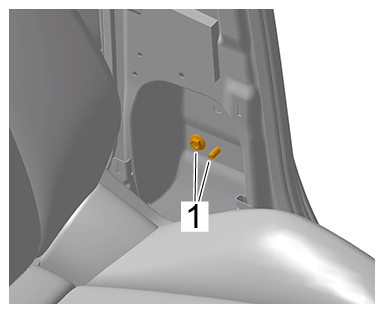

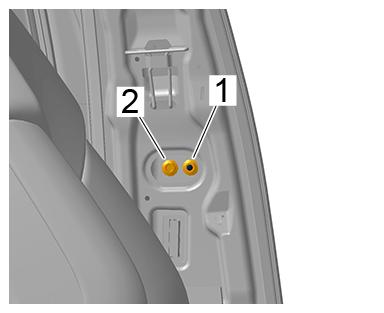

Door hinges to bodyshell Items 1 and 2 Tightening torque 32 N.m (24 ft.lb)
+ 45°
G14274026Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut
G14274027Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

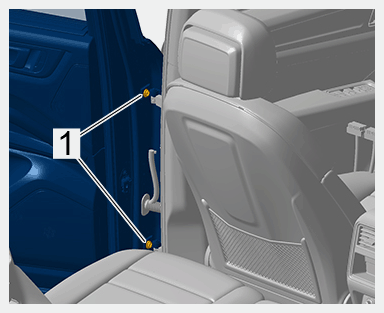

Fastening screws securing door hinges to door Item 1 Tightening torque 50 N.m (37 ft.lb)
G14274028Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door hinge (door side)

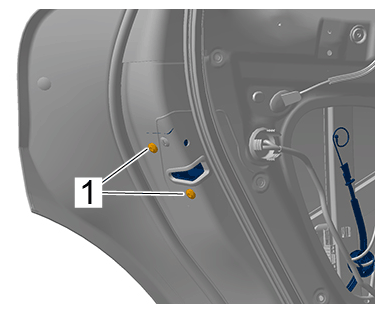

Door lock to door Item 1 Tightening torque 19 N.m (14 ft.lb)
G14274029Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Contact force for bonding outer seal for rear door   Contact force 50 N

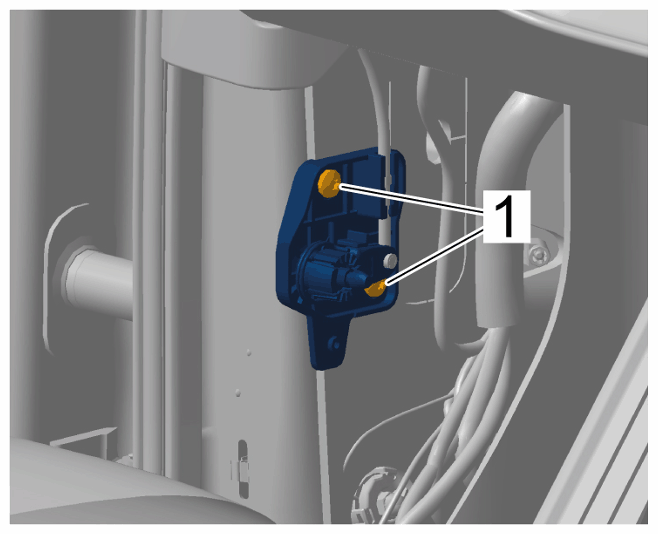

Fastening screws for front lid release Item 1 Tightening torque 2 N.m (1.5 ft.lb)
G14274030Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

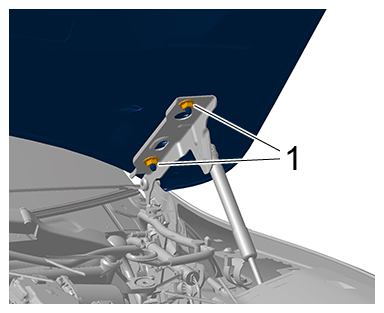

Lid to lid hinge Item 1 Tightening torque 24 N.m (18 ft.lb)
G14274031Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

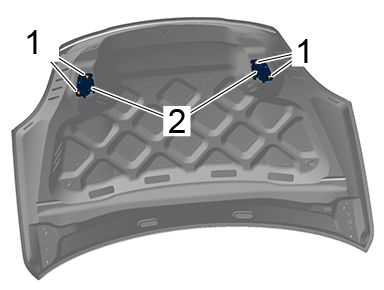

Upper part of lid lock to lid Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274032Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock

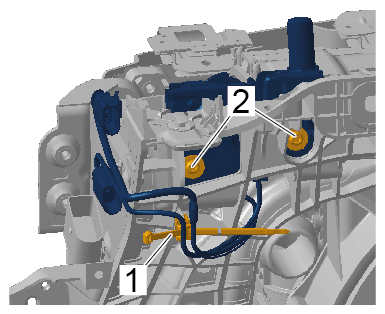

Lower part of lock to lock carrier Item 2 Tightening torque 11 N.m (8 ft.lb)
G14274033Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

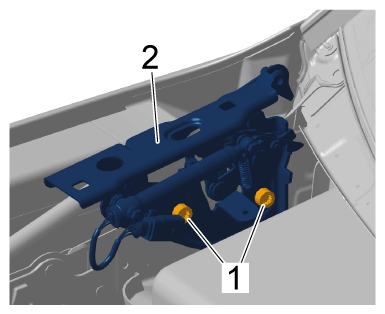

Front lid hinge to bodyshell Item 1 Tightening torque 21 N.m (16 ft.lb)
G14274034Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge

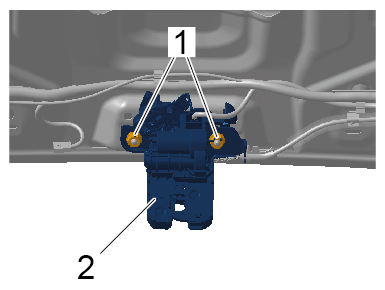

Rear lock upper part to rear lid Item 1 Tightening torque 21 N.m (16 ft.lb)
G14274035Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

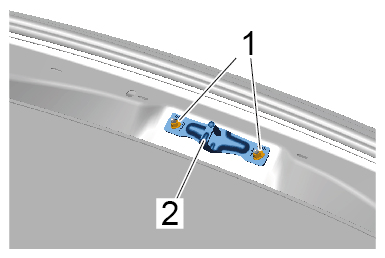

Rear lock lower part to rear lock carrier Item 1 Tightening torque 21 N.m (16 ft.lb)
G14274036Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

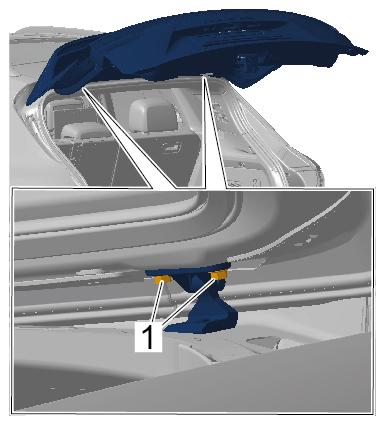

Rear lid to lid hinge Item 1 Tightening torque 12 N.m (9 ft.lb)
G14274037Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

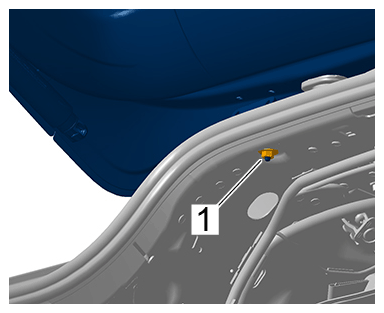

Rear lid hinge to bodyshell Item 1 Tightening torque 23 N.m (17 ft.lb)
G14274038Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut

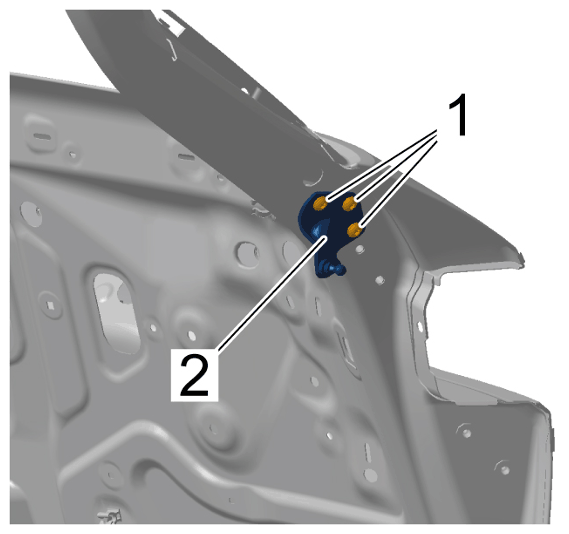

Fastening screws for ball joint Item 1 Tightening torque 10 N.m (7.5 ft.lb)
G14274039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for ball joint

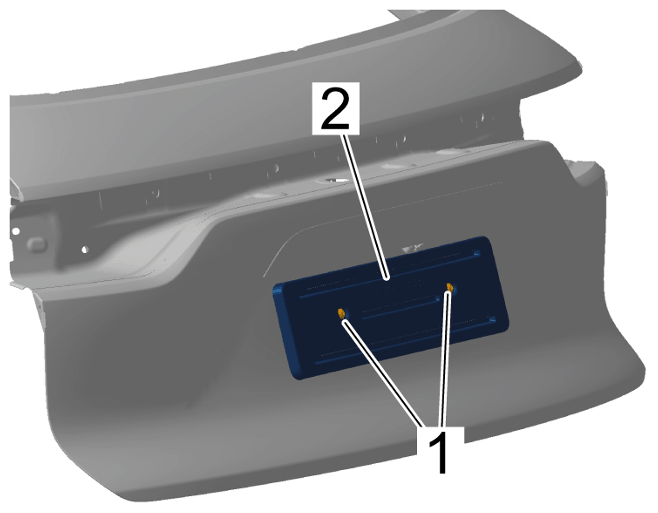

Fastening screws for number plate cover Item 1 Tightening torque 4 N.m (3 ft.lb)
G14274040Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover

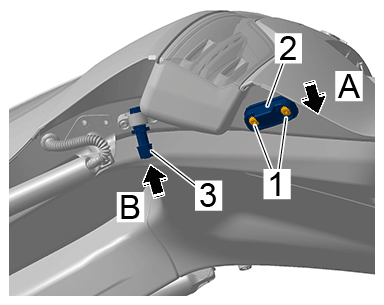

Guide wedge to rear lid Item 1 Tightening torque 6 N.m (4.5 ft.lb)
G14274041Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Rear lid to lid hinge   Tightening torque 12 N.m (9 ft.lb)
Nut securing rear lid hinge to bodyshell   Tightening torque 23 N.m (17 ft.lb)
Screws securing guide wedge to rear lid   Tightening torque 6 N.m (4.5 ft.lb)
Screws securing ball hitch to rear lid   Tightening torque 10 N.m (7.5 ft.lb)
Screws for number plate cover   Tightening torque 4 N.m (3 ft.lb)
Screws for upper part of rear lid lock   Tightening torque 30 N.m (22 ft.lb)
Screws securing lower part of rear lid lock to lock carrier   Tightening torque 21 N.m (16 ft.lb)

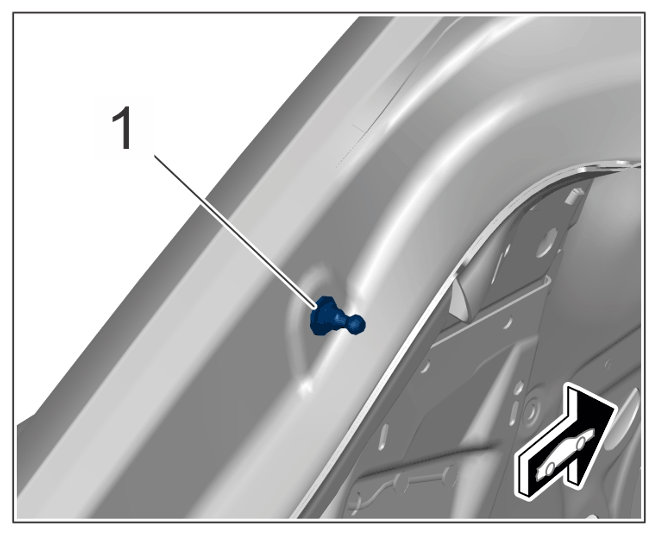

Ball joint for actuating cylinder to body Item 1/Tighten again after a waiting time of 5 minutes Tightening torque 25 N.m (19 ft.lb)
G14274042Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball joint

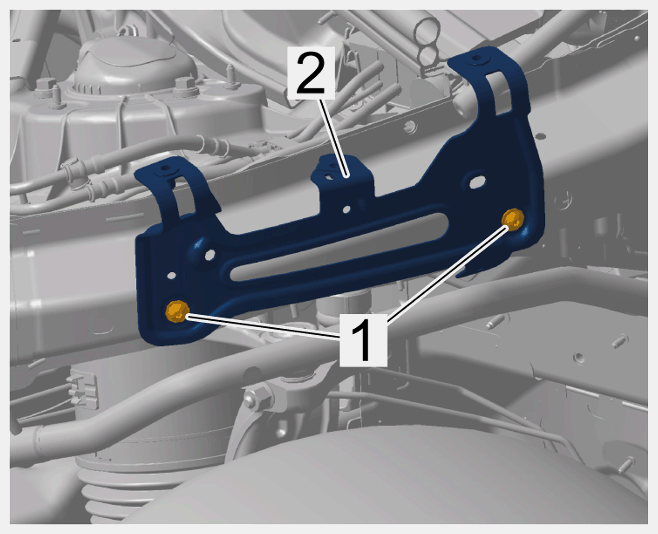

Front wing connection panel to upper front-end Item 1 Tightening torque 10 N.m (7.5 ft.lb)
G14274043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

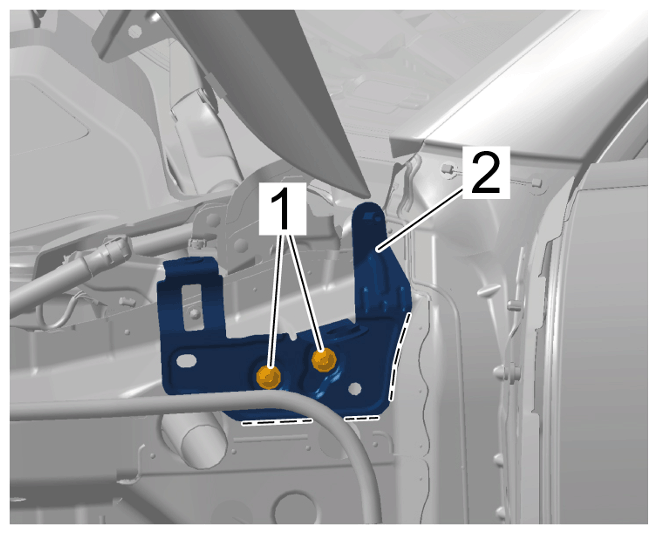

Rear wing connection panel to upper front-end Item 1 Tightening torque 10 N.m (7.5 ft.lb)
G14274044Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

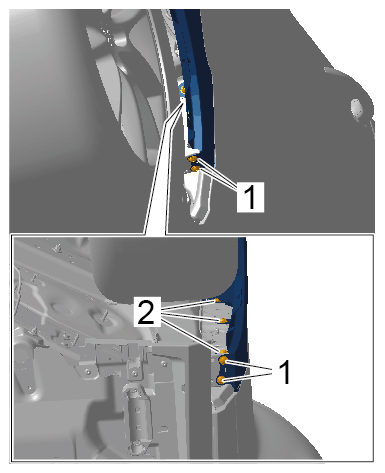

Front wing to lower front-end Item 1 and 2 Tightening torque 10 N.m (7.5 ft.lb)
G14274045Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

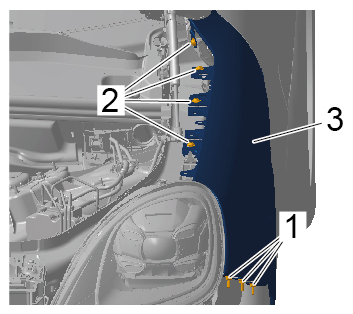

Front wing to upper front-end Item 1 and 2 Tightening torque 10 N.m (7.5 ft.lb)
G14274046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

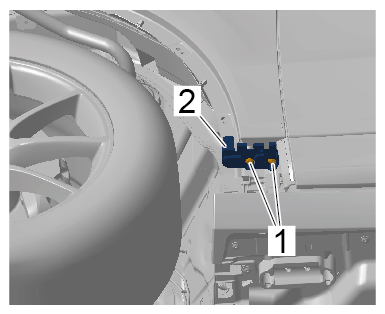

Bracket to wing Item 1 Tightening torque 2 N.m (1.5 ft.lb)
G14274047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

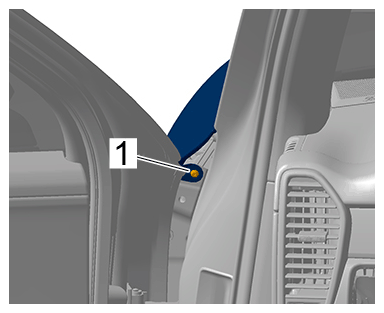

Front wing - rear fastening screw, top Item 1 Tightening torque 2 N.m (1.5 ft.lb)
G14274048Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper fastening screw

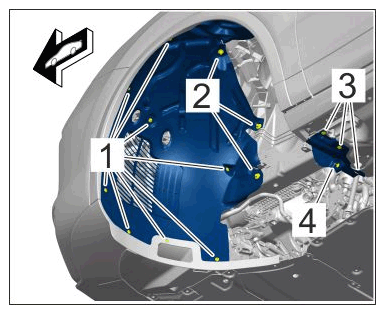

Screws securing front wheel housing liner to front end Item 1 (screws) Tightening torque 2.0 N.m (1.5 ft.lb)
G14274049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
G14274050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

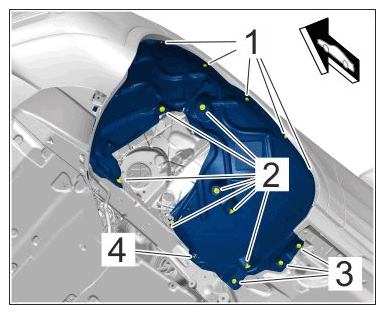

Nuts securing front wheel housing liner to front end Item 2 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
G14274052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Screws securing front wheel housing liner to underbody Item 3 Tightening torque 3.0 N.m (2.0 ft.lb)
G14274053Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
G14274054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

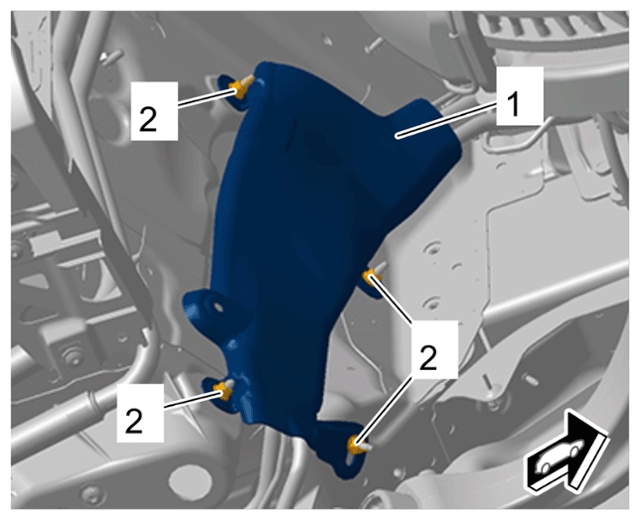

Cover for fuel line at front right wheel housing Item 2 Tightening torque 4.5 N.m (3.25 ft.lb)
G14274055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on fuel line, front right

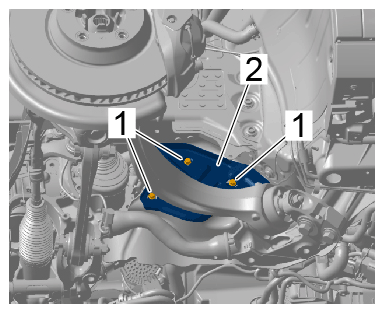

Front heat shield, side Item 1 Tightening torque 9 N.m (6.5 ft.lb)
G14274056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front heat shield, side

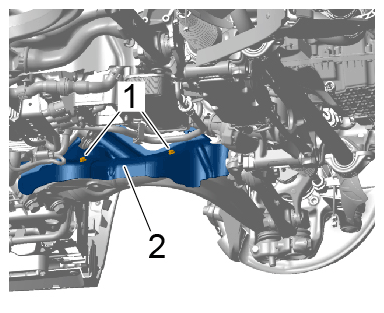

Front heat shield, bottom Item 1 Tightening torque 9 N.m (6.5 ft.lb)
G14274057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front heat shield, bottom

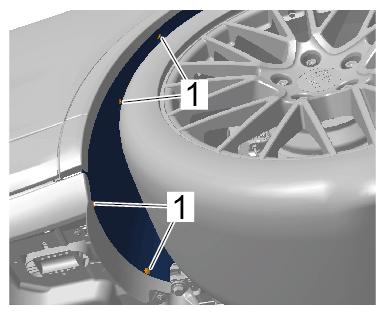

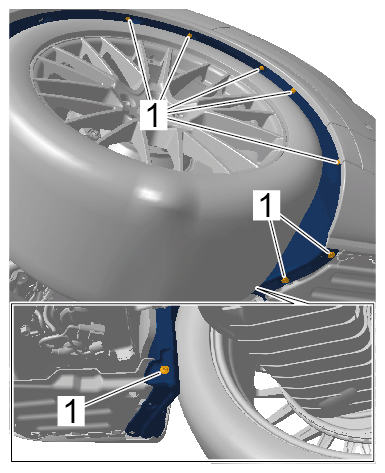

Fastening screw for rear wheel housing liner Item 1 Tightening torque 2 N.m (1.5 ft.lb)
G14274058Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for wheel housing liner
G14274059Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for wheel housing liner

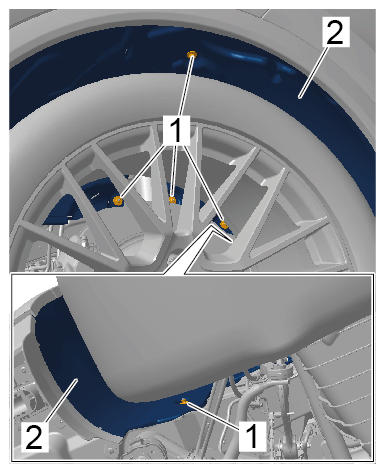

Nuts on rear wheel housing liner Item 1 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274060Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on wheel housing liner

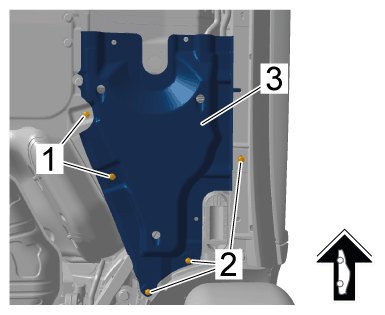

Fastening screw for rear underbody cover, left Item 2 Tightening torque 3 N.m (2 ft.lb)
G14274061Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear underbody cover, left

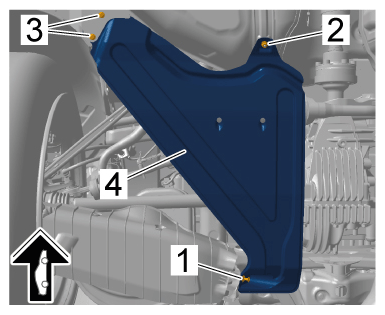

Nut for rear underbody cover, right Item 2 Tightening torque 2 N.m (1.5 ft.lb)
G14274062Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear cover, right
Screw for rear underbody cover, right Item 3 Tightening torque 2 N.m (1.5 ft.lb)
G14274063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear underbody cover, right
Nut for rear underbody cover Item 2 Tightening torque 2 N.m (1.5 ft.lb)
G14274064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear underbody cover, centre

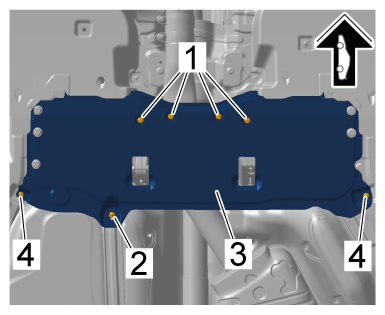

Screws for rear underbody cover Item 4 Tightening torque 3 N.m (2 ft.lb)
G14274065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear underbody cover, centre

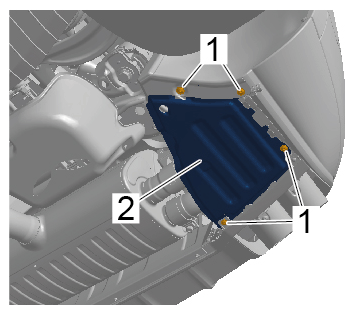

Rear underbody cover to bumper Item 1 Tightening torque 3 N.m (2 ft.lb)
G14274066Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear underbody cover, left

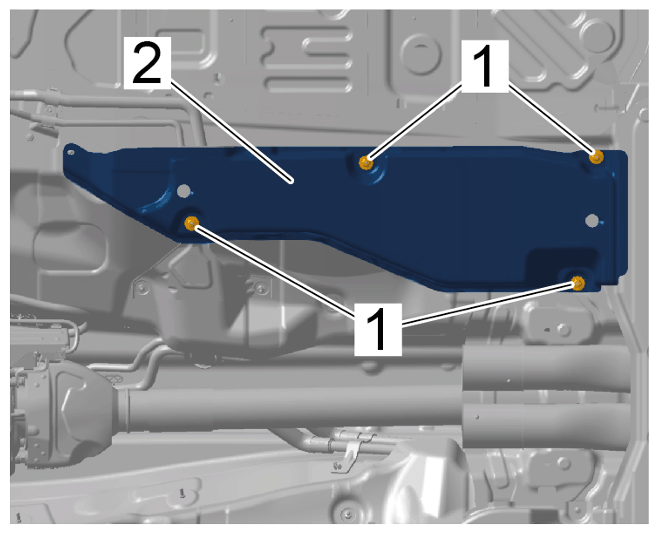

Tunnel cover, left Item 1 Tightening torque 2 N.m (1.5 ft.lb)
G14274067Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underbody cover, left
Front section of front underbody cover Item 2 Tightening torque 3 N.m (2 ft.lb)
G14274068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front section of front underbody cover

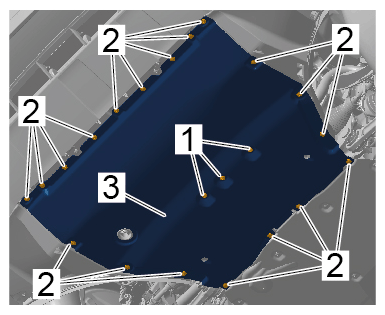

Front section of front underbody cover Item 1 Tightening torque 6 N.m (4.5 ft.lb)
G14274069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front section of front underbody cover

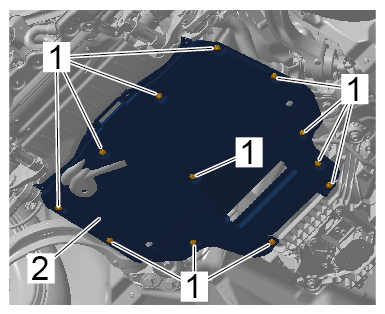

Rear section of front underbody cover Item 1 Tightening torque 3 N.m (2 ft.lb)
G14274070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear section of front underbody cover

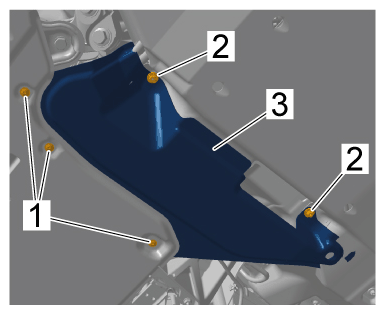

Side section of front underbody cover Item 2 Tightening torque 3 N.m (2 ft.lb)
G14274071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for front underbody cover

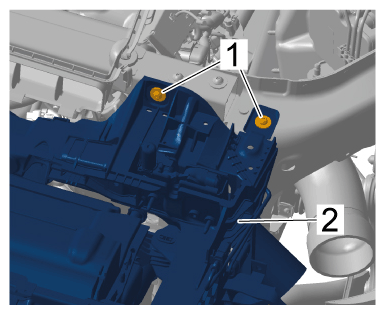

Screws securing upper lock carrier to body front section Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

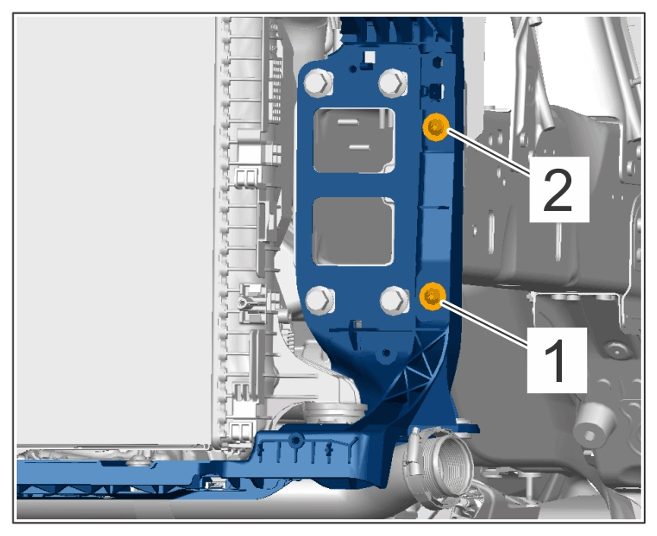

Bottom screw securing lower lock carrier to longitudinal member (off-road) Item 1 Tightening torque 10 N.m (7.5 ft.lb)
G14274073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Top screw securing lower lock carrier to longitudinal member (off-road) Item 2 Tightening torque 25 N.m (19 ft.lb)
G14274074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

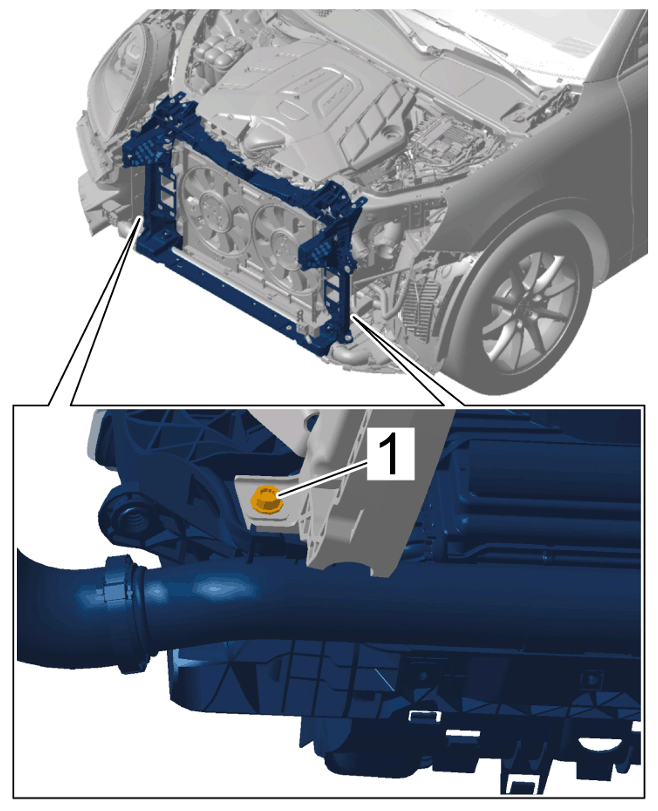

Screws securing lower lock carrier to longitudinal member Item 1 Tightening torque 23 N.m (17 ft.lb)
G14274075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing radiator holder to lock carrier Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274076Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for radiator holder

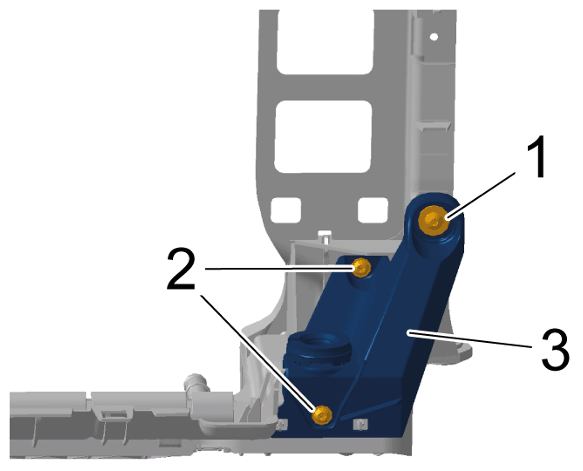

Screws securing radiator holder to lock carrier at the side Item 2 Tightening torque 8 N.m (6 ft.lb)
G14274077Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for radiator holder

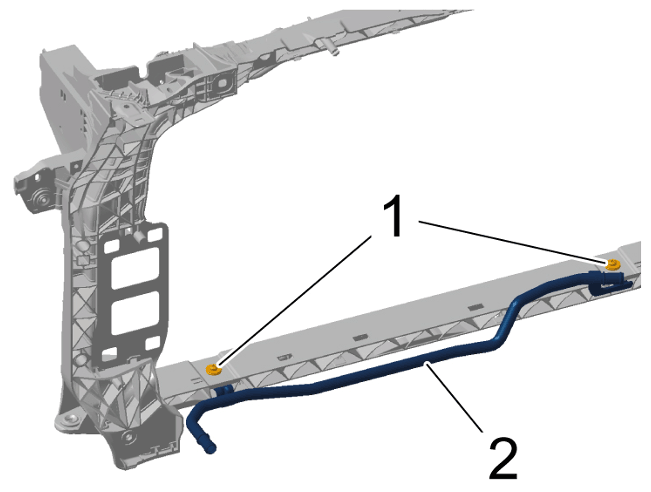

Screws securing lower coolant line to lock carrier Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274078Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws securing lock carrier lower part to lock carrier upper part (off-road) Item 1 Tightening torque 9 N.m (6.5 ft.lb)

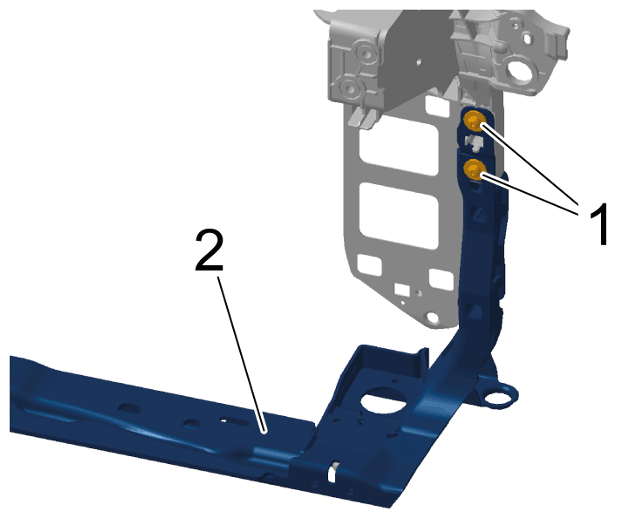

G14274079Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for lower part of lock carrier

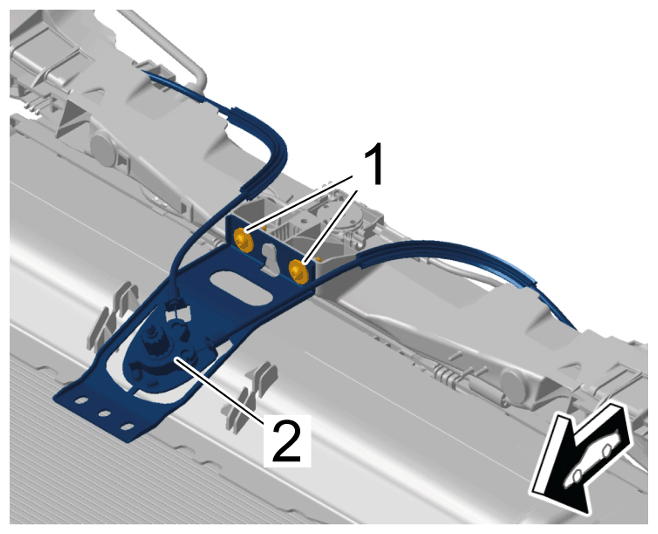

Screws securing lid lock cable to carrier module Item 1 Tightening torque 8 N.m (6 ft.lb)
G14274080Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws and release element
Fastening screws for centre underbody cover Item 2 and 3 Tightening torque 3 N.m (2 ft.lb)
G14274081Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for centre underbody

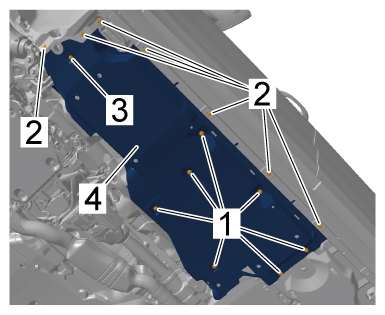

Fastening nuts for centre underbody cover Item 1 Tightening torque 2 N.m (1.5 ft.lb)
G14274082Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for centre underbody

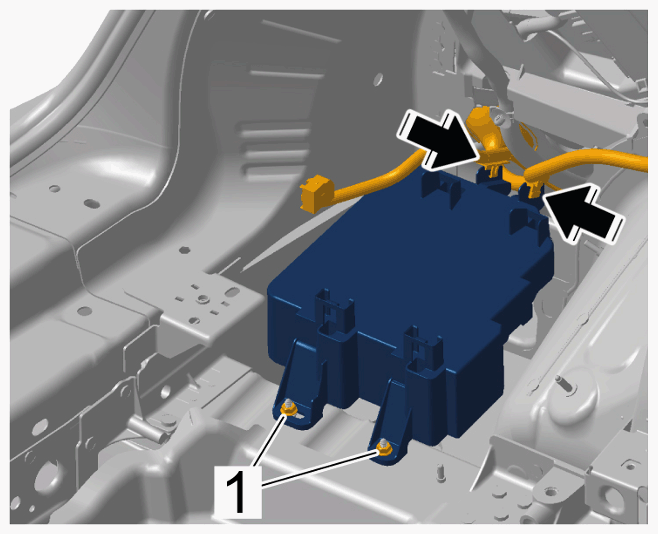

Fastening nuts for rear-end electronics control unit holder Item 1 Tightening torque 3 N.m (2 ft.lb)
G14274083Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

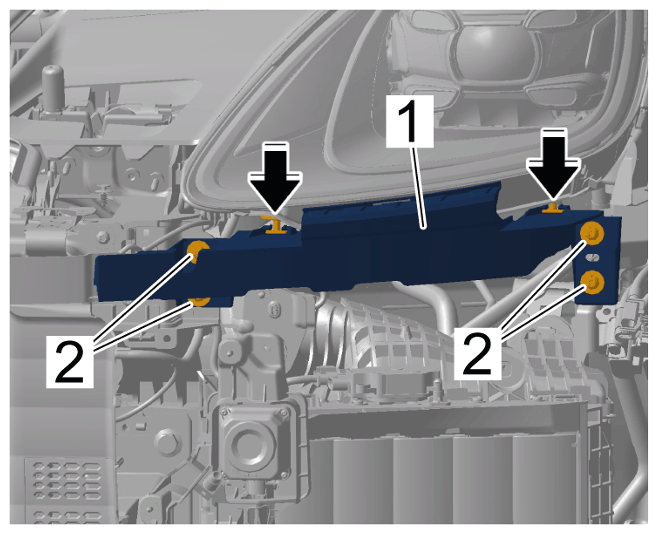

Fastening screws for headlight mounting Item 2 Tightening torque 6 N.m (4.5 ft.lb)
G14274084Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlight mounting

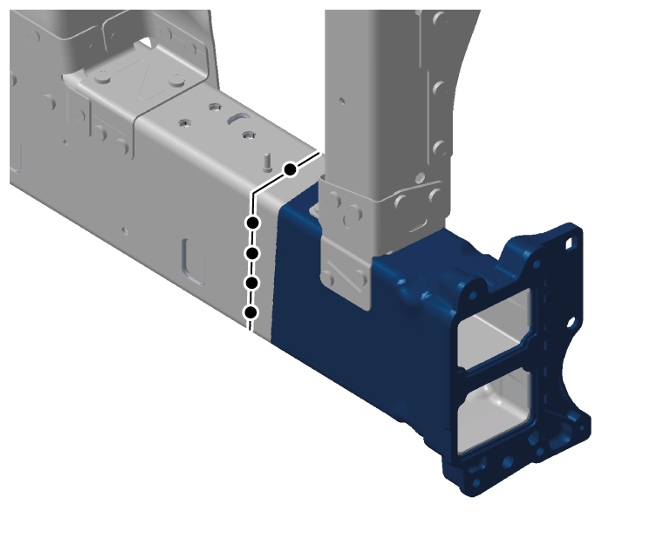

FDS screws in front side member (front section)   Tightening torque 24 N.m (18 ft.lb)
G14274085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

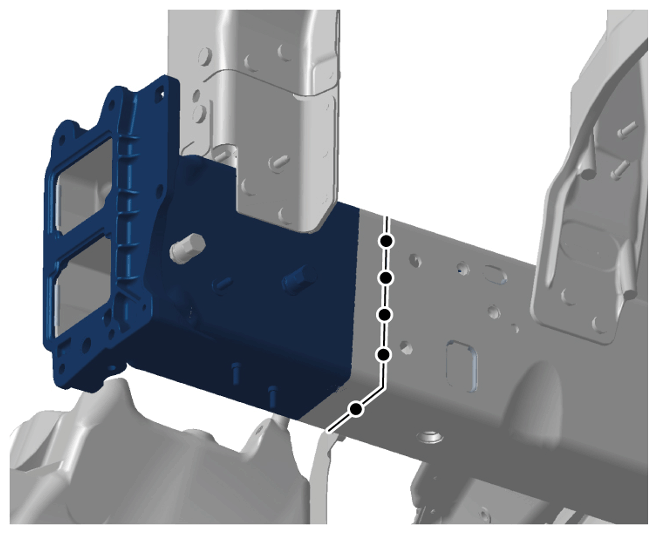

Inner screws
G14274086Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner bores

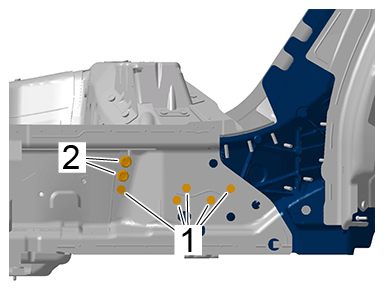

Screws for rear side member Item 2 Tightening torque 0 N.m (0 ft.lb)
G14274087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear side member

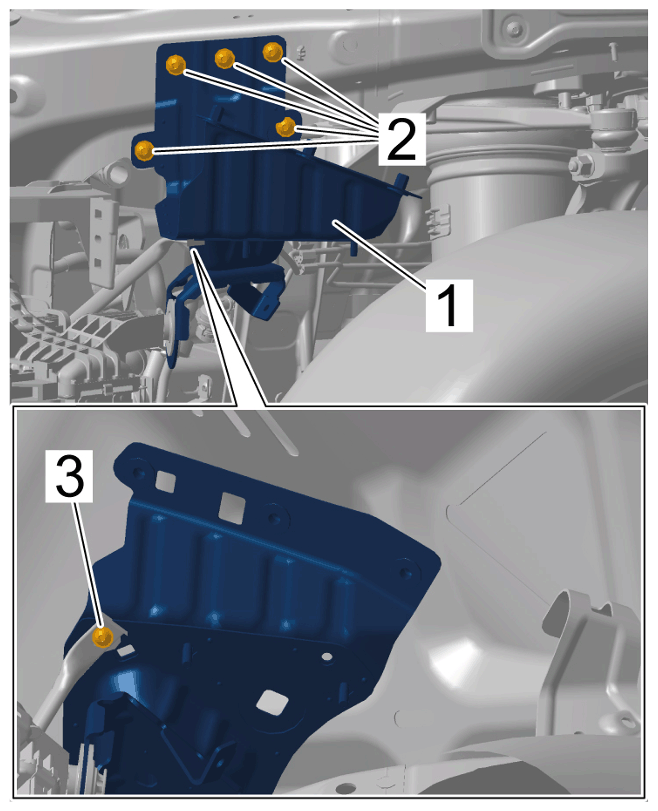

Fastening screws for support Items 2, 3 Tightening torque 10 N.m (7.5 ft.lb)
G14274088Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

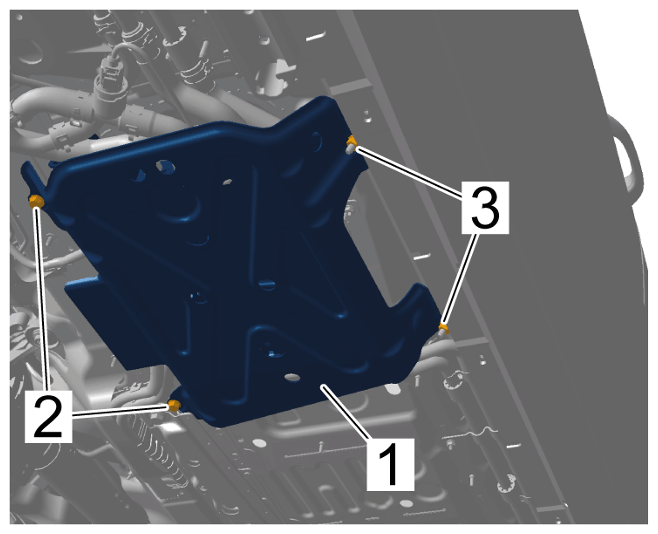

Fastening nuts for cover on power electronics for high-voltage system Item 3 Tightening torque 25 N.m (19 ft.lb)
G14274089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underride guard
Fastening screws for cover on power electronics for high-voltage system Item 2 Tightening torque 25 N.m (19 ft.lb)
G14274090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underride guard

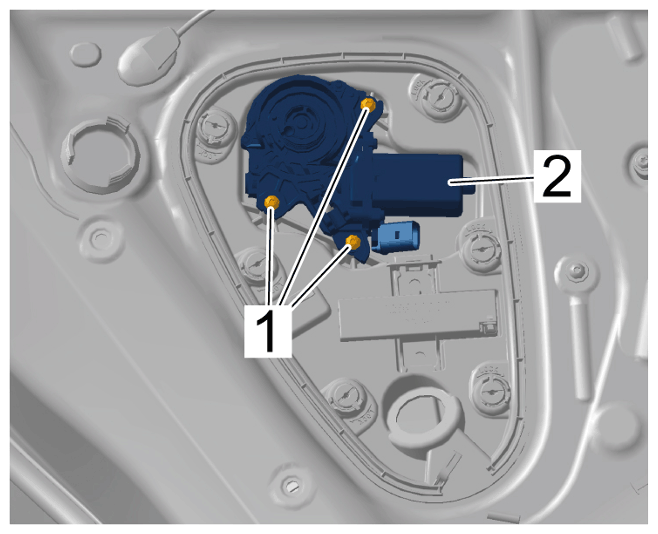

Screws for rear closing aid motor Item 1 Tightening torque 2.6 N.m (1.8 ft.lb)
G14274091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for closing aid motor

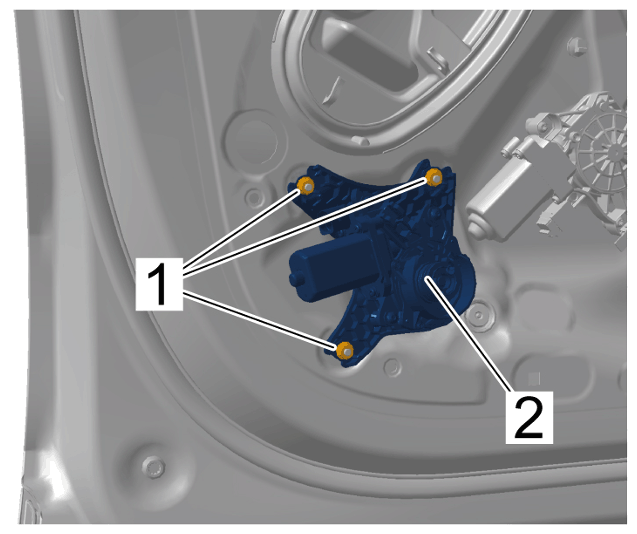

Front closing aid motor to front door Item 1 Tightening torque 7.5 N.m (5.5 ft.lb)
G14274092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

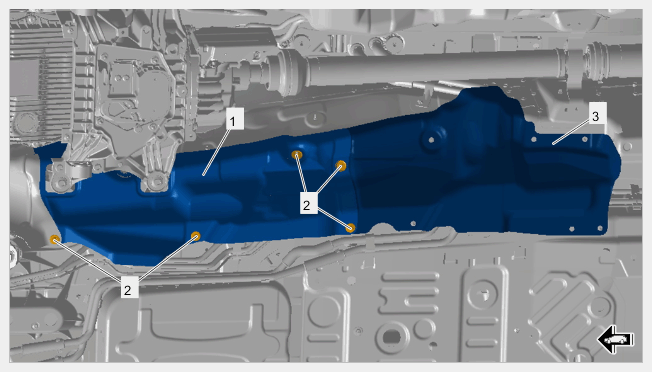

Heat shield on underbody, right Item 2 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shields on right underbody

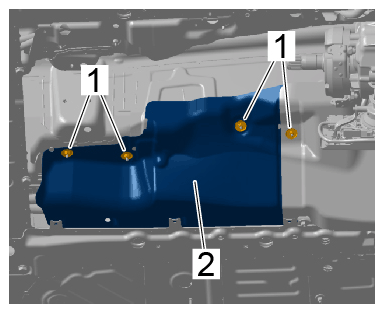

Heat shield on centre tunnel, left Item 1 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274094Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield
Heat shield on cardan shaft centre bearing Item 3 Tightening torque 2.1 N.m (1.5 ft.lb)
G14274095Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for cardan shaft

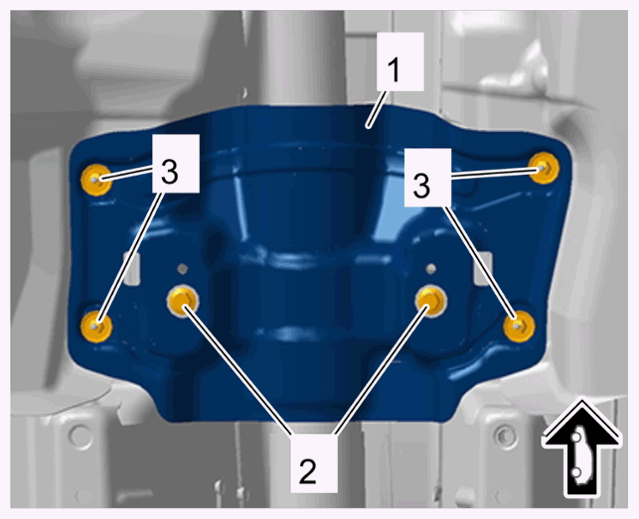

Cardan shaft centre bearing Item 2 Tightening torque 20 N.m (15 ft.lb)
G14274096Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for cardan shaft

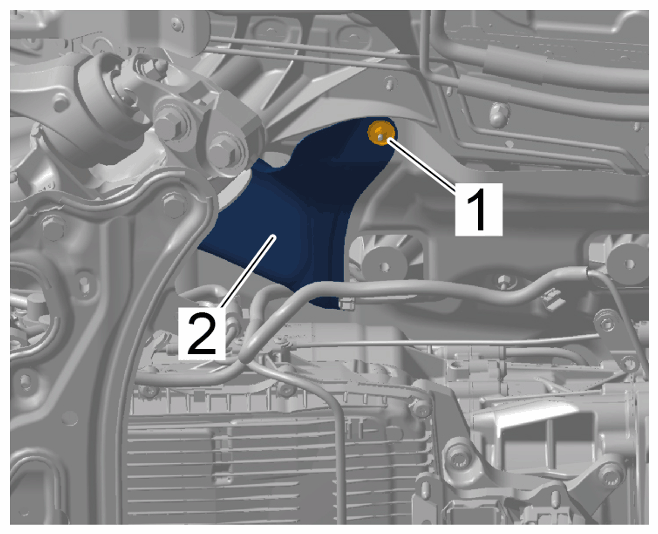

Heat shield on tunnel, left Item 1 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on underbody, left

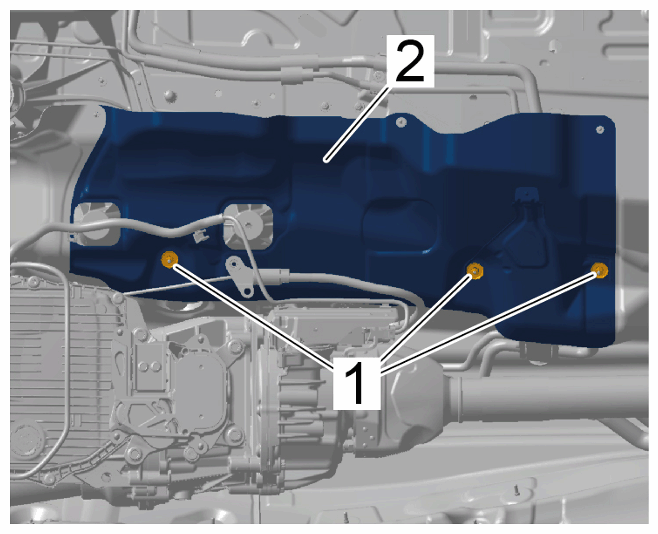

Heat shield on tunnel, left Item 1 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274098Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

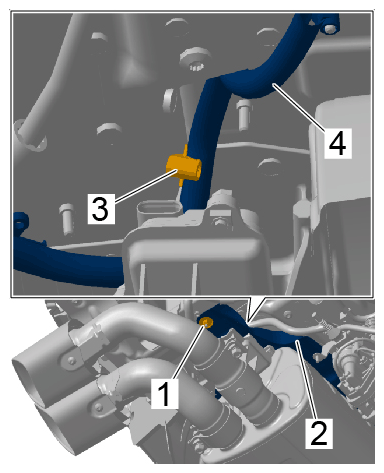

Fastening nut securing heat shield to rear silencer Item 1 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274099Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield
Nut on heat shield on longitudinal member, left Item 1 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274100Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

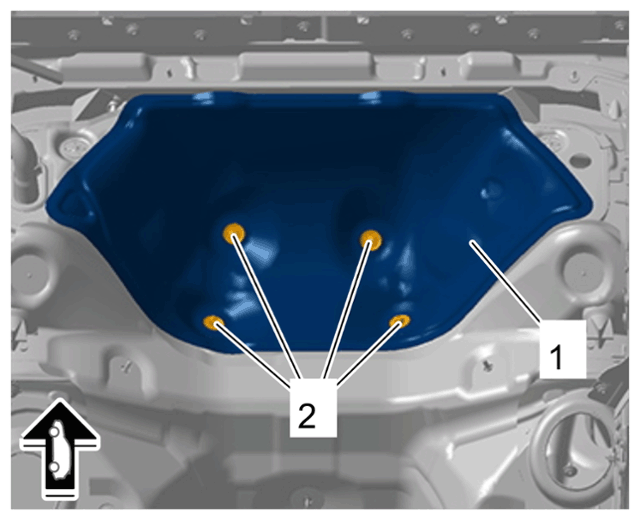

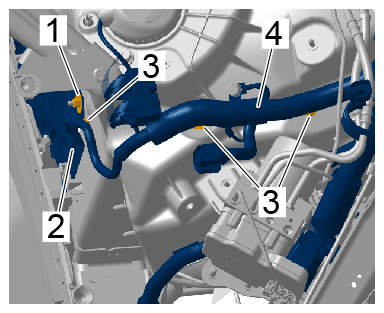

Nuts securing heat shield on firewall upper section to body Item 2 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on firewall upper section

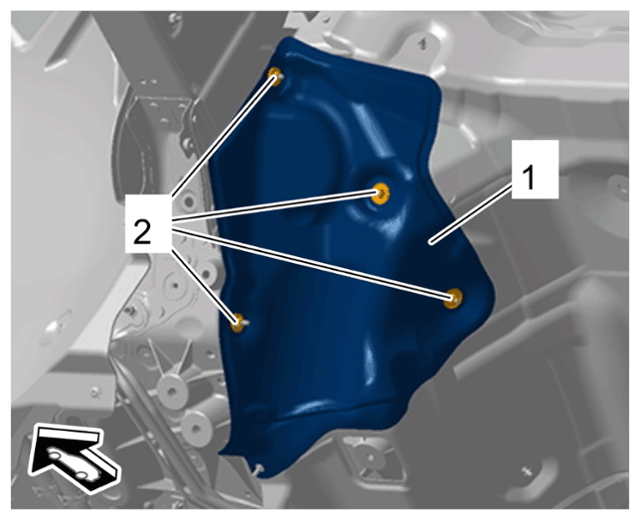

Nuts securing heat shield on right longitudinal member to body Item 2 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection on right longitudinal member

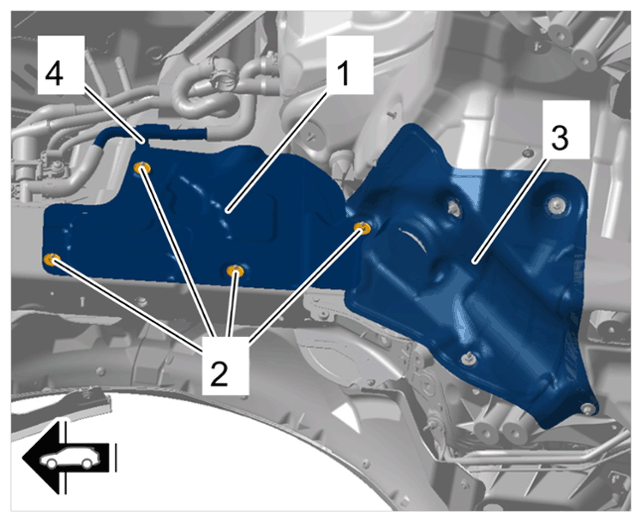

Nuts securing heat shield on front right longitudinal member to body Item 2 Tightening torque 5 N.m (3.5 ft.lb)
G14274103Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection on front right longitudinal member

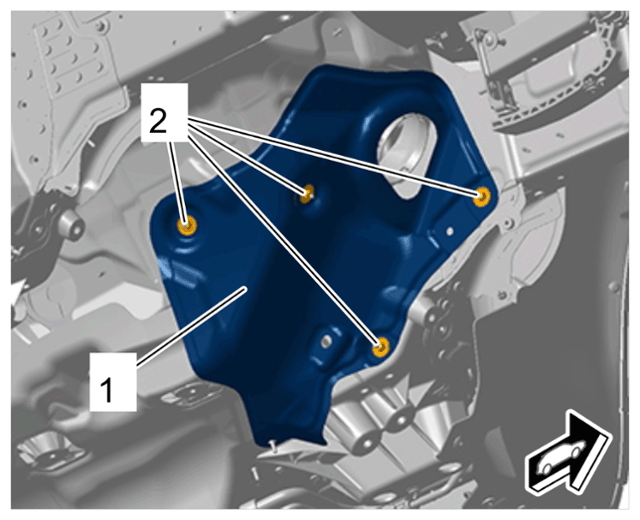

Nuts securing heat shield on left longitudinal member to body Item 2 Tightening torque 2.5 N.m (1.75 ft.lb)
G14274104Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on left longitudinal member

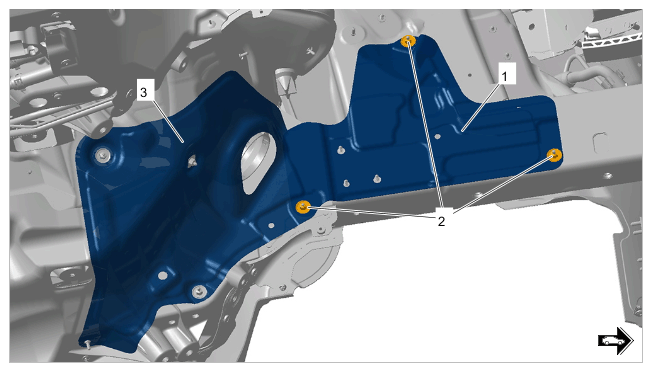

Nuts securing heat shield on front left longitudinal member to body Item 2 Tightening torque 5 N.m (3.5 ft.lb)
G14274105Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on front left longitudinal member

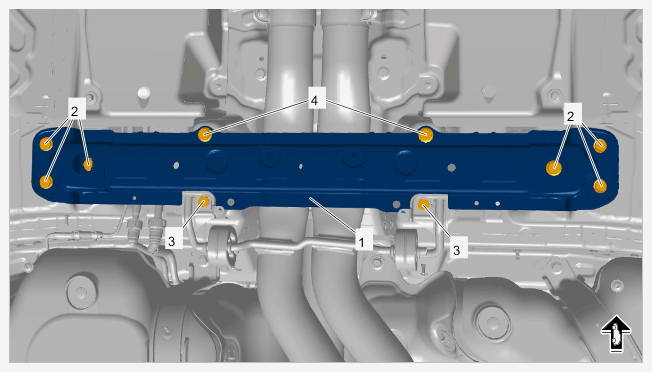

Tunnel reinforcement plate to underbody Item 2, 3, 4 Tightening torque 49 N.m (36 ft.lb)
G14274106Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tunnel strut

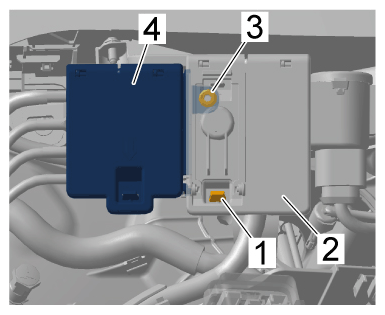

Nut securing power distributor at the front to external power connection Item 3 Tightening torque 9 N.m (6.5 ft.lb)
G14274107Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power distributor, front
Nuts securing external power connection to bracket Item 1 Tightening torque 3 N.m (2 ft.lb)
Spring nuts securing heat protection panel to cross panel Item 1 Tightening torque 2.5 N.m (1.75 ft.lb)
Screws securing cross panel to bracket Item 1 Tightening torque 10 N.m (7.5 ft.lb)

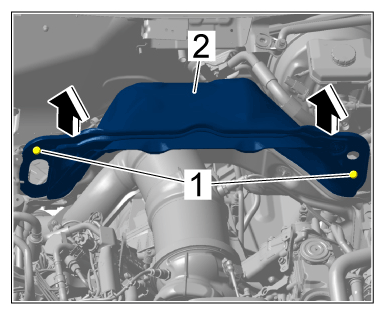

Screws securing cross panel (lower section) to body Item 1 Tightening torque 10 N.m (7.5 ft.lb)
G14274108Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel (lower section)

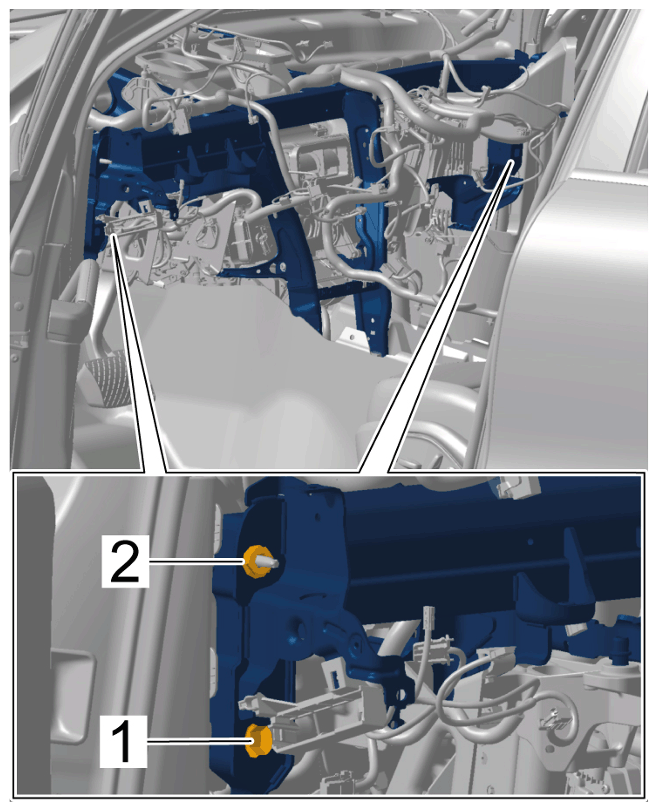

Screws on pillars Item 1 Tightening torque 20 N.m (15 ft.lb)
G14274109Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Nuts on pillars Item 2 Tightening torque 20 N.m (15 ft.lb)
G14274110Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

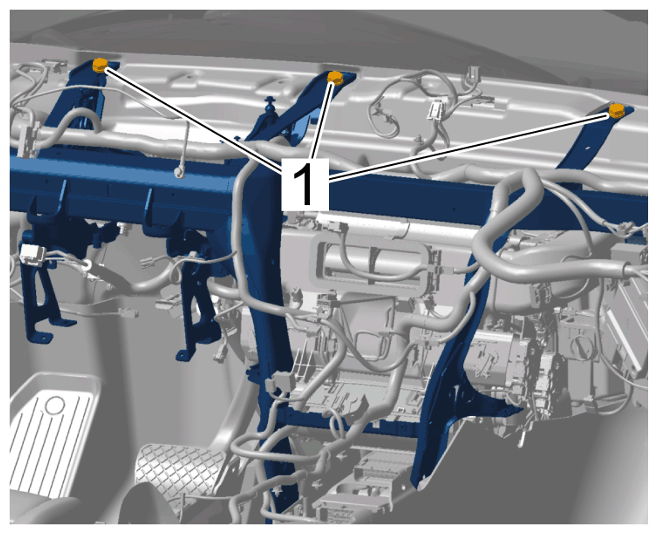

Screws, top Item 1 Tightening torque 20 N.m (15 ft.lb)
G14274111Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

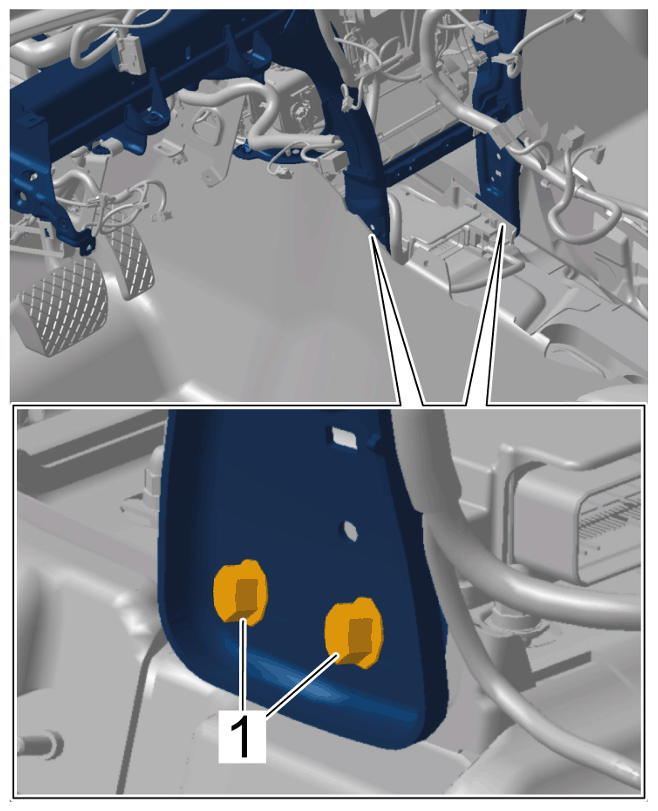

Screws, bottom Item 1 Tightening torque 20 N.m (15 ft.lb)
G14274112Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carpet

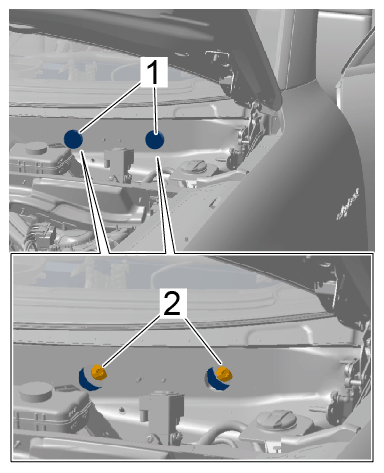

Screws, front Item 2 Tightening torque 20 N.m (15 ft.lb)
G14274113Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stoppers

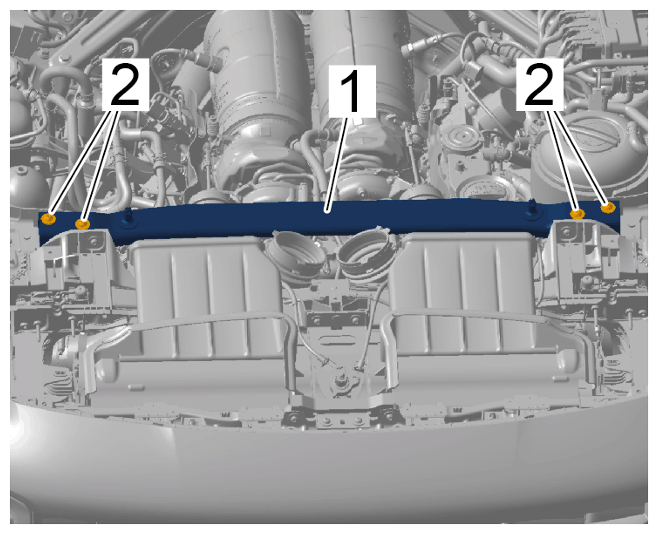

Screws securing intermediate piece to body front section Item 2 Tightening torque 10 N.m (7.5 ft.lb)
G14274114Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing intermediate piece to body front section
scientia non olet · About LEMON Manuals
