Water Drains On Rear Spoiler (PANAMERA Only)

WARNING: This page is about a different car, the 2020 Porsche Cayenne and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move rear spoiler into service position.
  2. Check for dirt under the rear spoiler in the water drain area -1-  and clean if necessary.

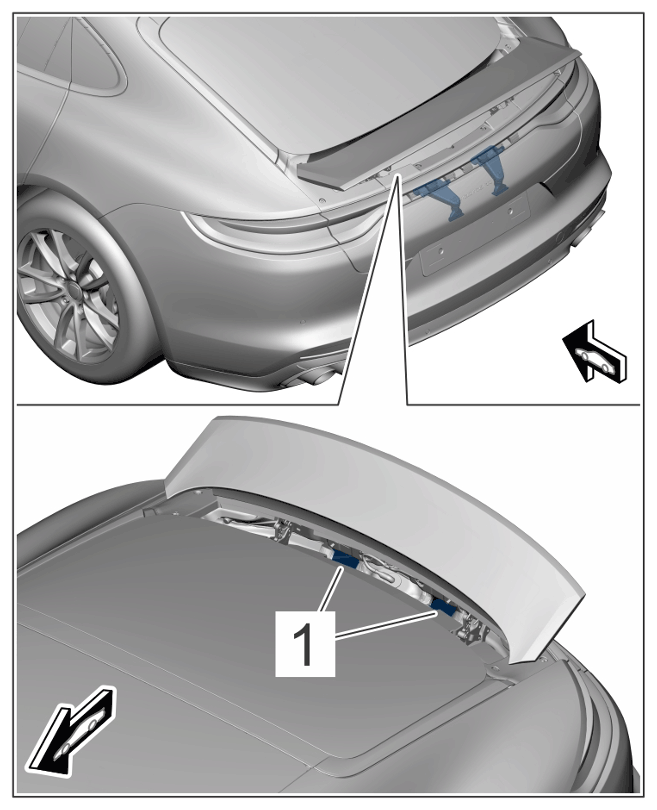

    G15208181Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Water drain

  3. Open the rear lid.
  4. Check water drain sleeves -1-  on the bottom of the rear lid and clean if necessary.

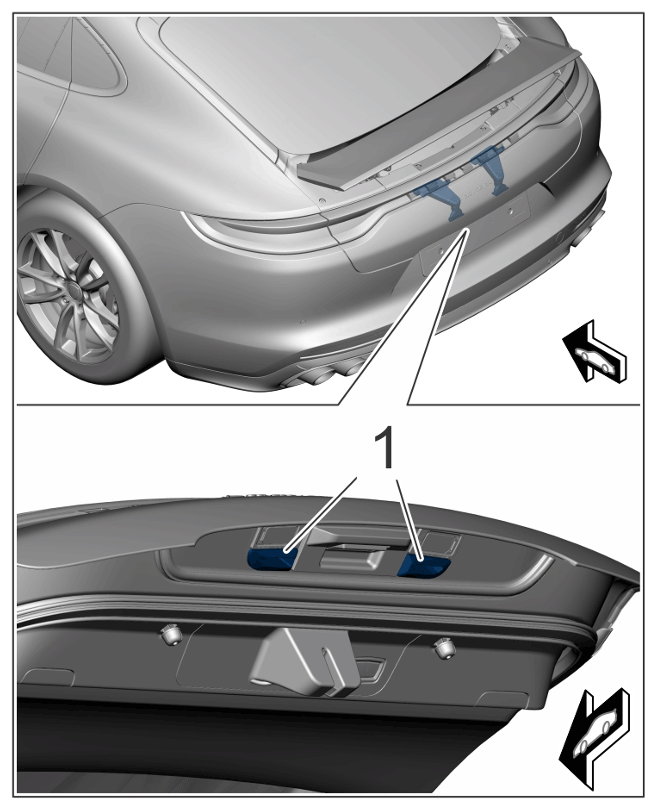

    G15208182Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Water drain sleeves

  5. Close the rear lid.
  6. Pour 0.5 litre of water into water drains and check outlet at the water drain sleeves. Repeat cleaning if necessary.
