Checking Water Drains On Sliding Roof
WARNING: This page is about a different car, the 2020 Porsche Cayenne and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Before starting work, check whether the vehicle's sliding roof has internal water drains.
- Open the sliding roof completely.
- If possible, perform a visual inspection of the water drains and remove any dirt.

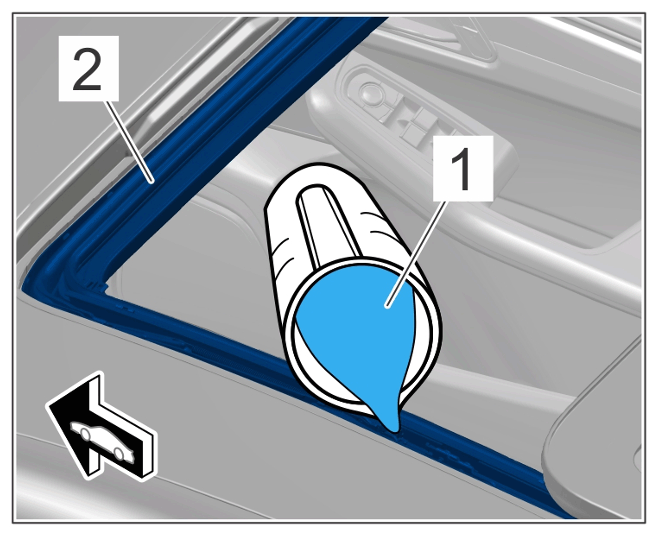

- Carefully pour 0.5 litre of water -1- into the guide rail on the sliding roof -2- and make sure that water flows directly into the front and rear water drains. Repeat the process by gradually increasing water volumes from 1 litre to 2 litres.
Checking sliding roof (shown on the Macan)
- 3.1 Check that the water drains away immediately in the outlet area and has drained fully within a very short time.
- 3.2 Stop pouring immediately if the water does not flow directly out of the drain. If the water does not emerge or only in droplets, the water drain needs to be cleaned.
