Checking Water Drains At The Front

WARNING: This page is about a different car, the 2020 Porsche Cayenne and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Find the installation position of the front water drains.
> 6048IN WATER DRAIN
Remove front cover -1- .
> WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER (9YA) / WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER (9YB)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

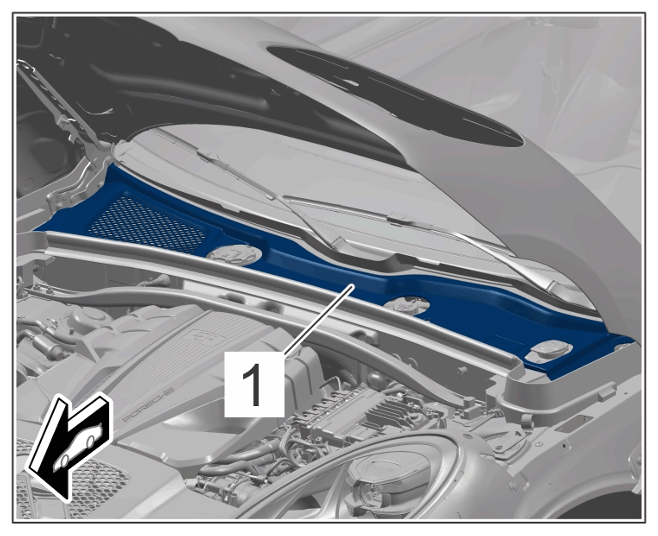

Front cover (shown on the Macan)
Check for dirt in the area around the water drains -1- at the front and remove it if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

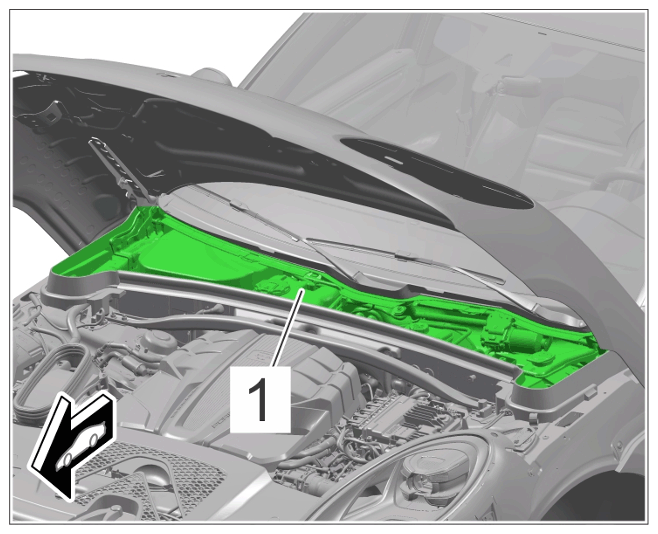

Area around water drains (shown on the Macan)
Install front cover -1- .
> WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER (9YA) / WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER (9YB)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover (shown on the Macan)
