Checking Water Drain At Charging Socket

WARNING: This page is about a different car, the 2020 Porsche Cayenne and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the flap.
  2. Visually check the water drain -2-  at the charging socket -1-  for dirt.

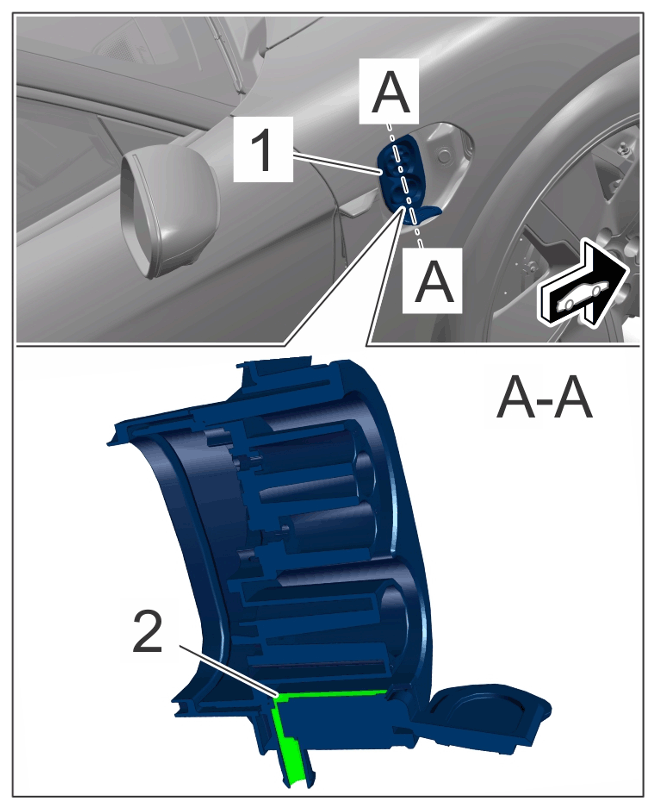

    G15208188Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Charging socket (shown on the Taycan)

  3. If cleaning is required:  Clean the water drain using compressed air.
