Checking Windscreen Wiper And Washer System
WARNING: This page is about a different car, the 2020 Porsche Cayenne and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTIFICATION
Headlight surface not cleaned properly
- Scratches
- → Use only soapy water to clean the exterior lights and the plastic headlight lenses.
- → Never use chemical cleaning agents.
- → To avoid scratches, do not rub with dry or slightly damp cloths, paper towels or insect-removal sponges.
Information
Check operation, fluid level indicator and nozzle settings. If the windscreen-washer spray nozzle setting -2- is not OK, the spray nozzles -2- must be adjusted.

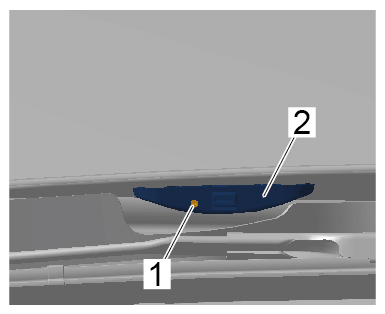

Spray nozzle
- Insert a suitable tool into the adjusting screw -1- .
- Align the spray nozzles -2- by turning the adjusting screw -1- .

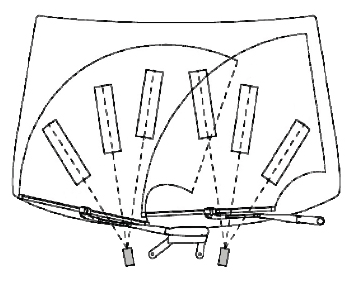

Spray pattern
