Checking Electrically Extendable Trailer Hitch
WARNING: This page is about a different car, the 2020 Porsche Cayenne and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The swivel action of the ball hitch is interrupted in the one-touch function of the rocker switch if resistance interferes with the movement sequence. The interruption is indicated by the rapid flashing of the red LED in the rocker switch.
- Overload protection is switched off by pressing the rocker switch for at least two seconds.
Information
- The vehicle must be stationary.
- Rear lid or rear window must be open.
WARNING:
Risk of injury and damage when retracting and extending the ball hitch.
- Make sure that no persons, animals or obstacles are in the movement range of the ball hitch.
- To interrupt the swivel action of the ball hitch in the event of danger, touch the rocker switch again.
- → Never swivel the ball hitch when a trailer is coupled or when bicycle racks, for example, are mounted or supported on the ball hitch.
- → Only use the trailer hitch when the ball hitch is extended fully.
- → Never insert tools of any kind into the ball hitch swivel mechanism. This could damage the locking mechanism; safe operation of the trailer hitch can then no longer be guaranteed.
- → Check that the ball hitch locks into position correctly before every journey.
Information
- The vehicle must be stationary.
- Rear lid or rear window must be open.
- The trailer must be unhitched.
- Connectors (and any adapters) must be removed from the socket.
- There must not be any accessories on the ball hitch (e.g. ball protection cap, bicycle rack, etc.).
- Extending trailer hitch

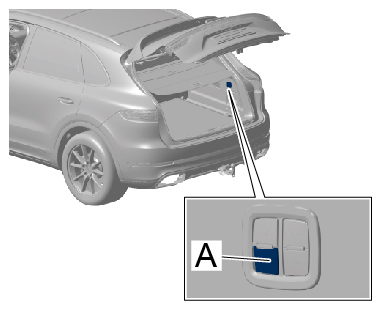

Rocker switch
- 1.1 Touch rocker switch -A - .
- 1.2 >> The ball hitch moves automatically into operating position.
- 1.3 The red LED in the rocker switch -A - flashes until the operating position is reached.
- Retracting trailer hitch
Rocker switch
- 2.1 Touch rocker switch -A - .
- 2.2 >> The ball hitch moves automatically into operating position.
- 2.3 The red LED in the rocker switch -A - flashes until the operating position is reached.
