Vehicle Coordinate System
WARNING: This page is about a different car, the 2020 Porsche Cayenne and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

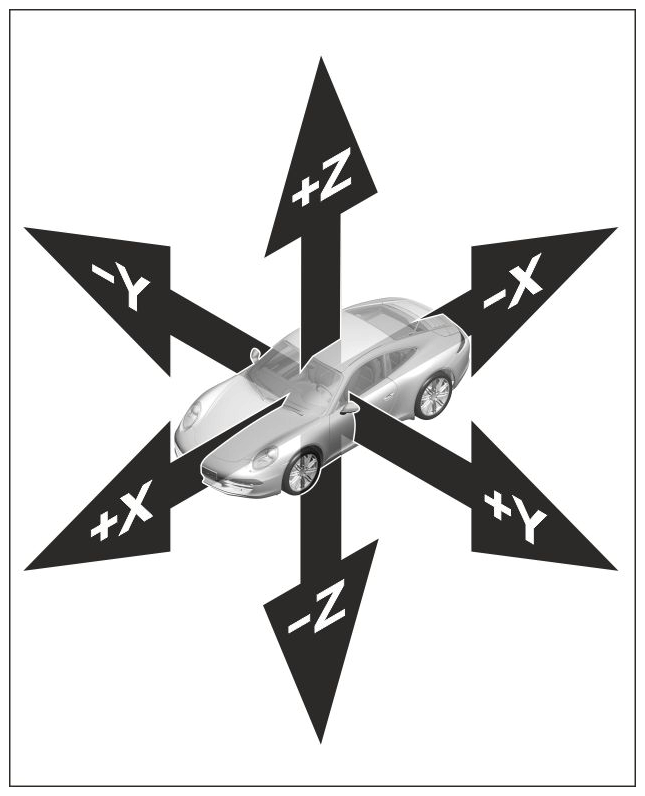

Vehicle coordinate system
- The vehicle coordinate system shows the 3 dimensions in the room.
- It is used to specify direction during adjustment work.
- It can be used for all model lines.
