WM, 631719 Removing And Installing Retaining Strip: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

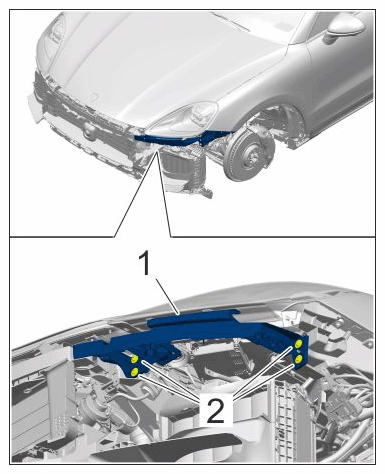

| Screws securing retaining strip to front end |
|
Tightening torque |
6 (4.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|
|

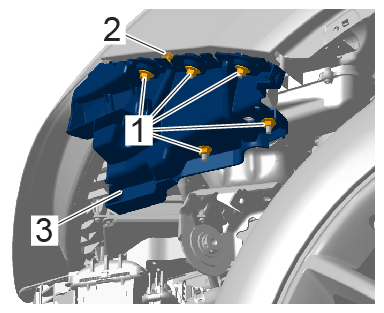

| Nuts securing retaining strip to wing |
Item 1 |
Tightening torque |
4 (3 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts |
|
|
|
|
|
