WM, 631519 Removing And Installing Front Apron: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

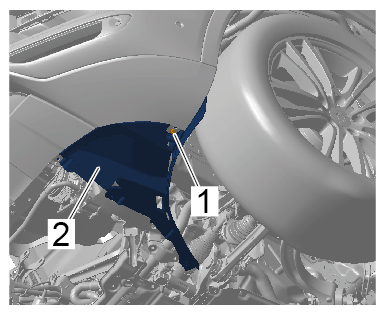

Screw securing air duct for brake to front apron, bottom	Item 1	Tightening torque	3 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on air duct for brake

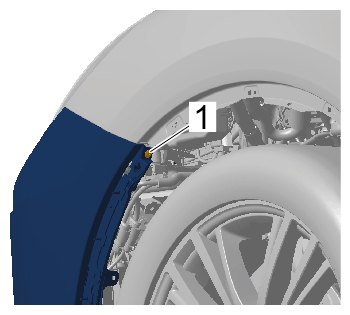

Screw securing front apron to wing	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on front apron

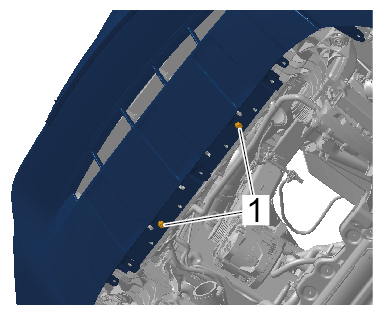

Screws securing front apron to front end, bottom	Item 1	Tightening torque	4.5 (3.25 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the bottom

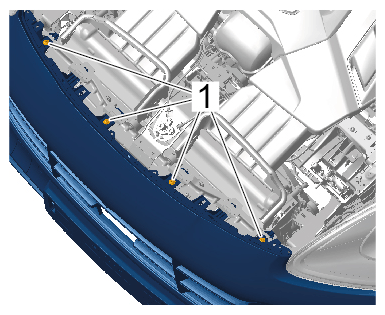

Screws securing front apron to front end, top	Item 1	Tightening torque	3 (2 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the top
