WM, 631019 Removing And Installing Front Bumper: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

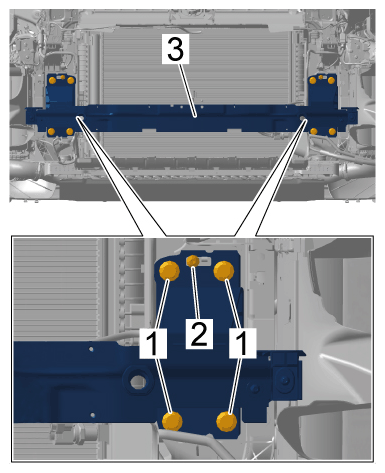

| Front bumper to front end |
Item 1 |
Tightening torque |
60 (44 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front bumper |
|
|
|
|
|
| Screw for pre-assembly of front bumper on front end |
Item 2 |
Tightening torque |
8 (6 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front bumper |
|
|
|
|
|
