WM, 536919 Removing And Installing Rear Wheel Housing Liner: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

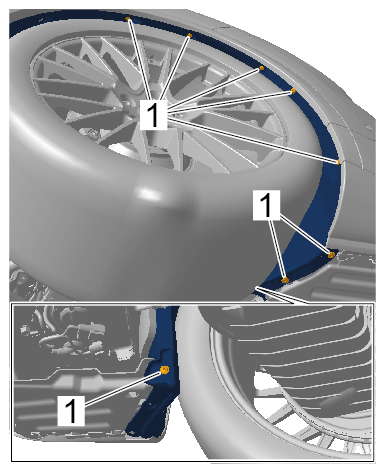

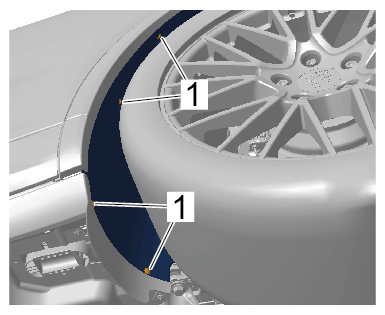

| Fastening screw for rear wheel housing liner | Item 1 | Tightening torque | 2 (1.5 ftlb.) Nm | ||
|
Fastening screw for wheel housing liner |
|||||
|
Fastening screw for wheel housing liner |
|||||

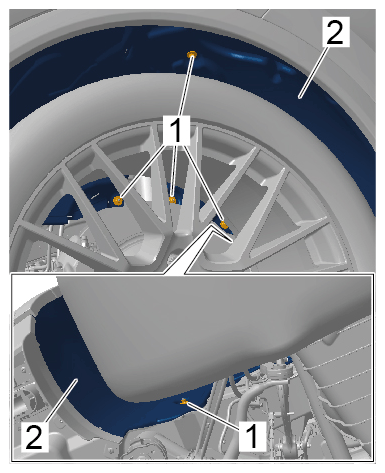

| Nuts on rear wheel housing liner | Item 1 | Tightening torque | 2.5 (1.75 ftlb.) Nm | ||
|
Nuts on wheel housing liner |
