WM, 53485505 Replacing Rear Side Member (Section): Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

PARTS DESCRIPTION

Part number Description Addition Quantity
> 99919022901 BLIND RIVETS 999.190.229.01
> 99919022901 BLIND RIVETS 999.190.227.01
> 99919022901 BLIND RIVETS 999.190.229.01
> 99919022901 BLIND RIVETS 999.190.227.01
> 99919022901 BLIND RIVETS 999.190.227.01
> 99919022901 BLIND RIVETS 999.190.229.01
> 99919022901 BLIND RIVETS 999.190.227.01

TOOLS DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14348852Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > V.A.G 2010/2A
G14348853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

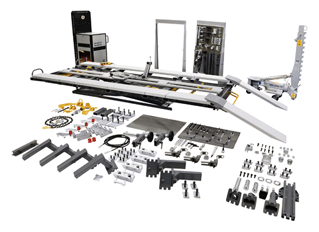

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14348854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

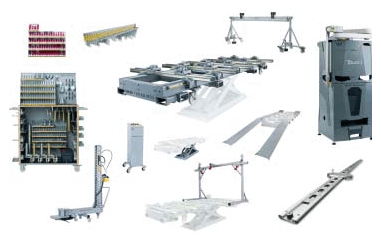

Measuring and straightening system General workshop equipment > VAS 811 017
G14348855Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14348856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

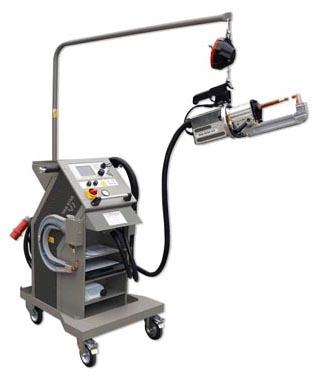

Resistance Spot Welder General workshop equipment > VAS 6755
G14348857Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G14348858Courtesy of PORSCHE CARS NORTH AMERICA, INC.

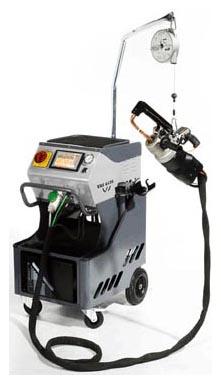

Resistance Spot Welder General workshop equipment > VAS 6530A
G14348859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14348860Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14348861Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminum/steel/MIG/MAG General workshop equipment > VAS 821 003
G14348862Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminum/steel/MIG/MAG General workshop equipment > VAS 821 005
G14348863Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminum/steel/MIG/MAG General workshop equipment > VAS 821 001
G14348864Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14348865Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminum Vehicle-specific workshop equipment > VAS 852 001
G14348866Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, aluminum General workshop equipment > VAS 6572/2
G14348867Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14348868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

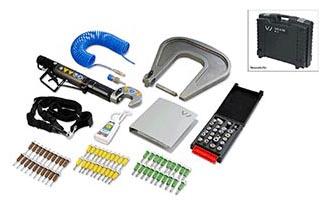

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14348869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14348870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

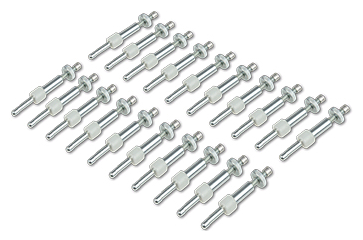

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14348871Courtesy of PORSCHE CARS NORTH AMERICA, INC.

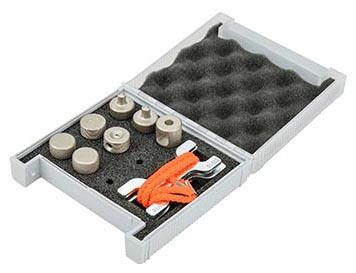

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14348872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14348873Courtesy of PORSCHE CARS NORTH AMERICA, INC.

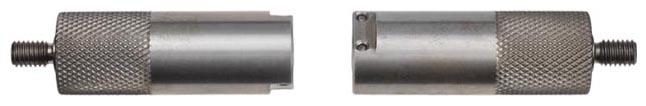

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14348874Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14348875Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G14348876Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G14348877Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G14348878Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G14348879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

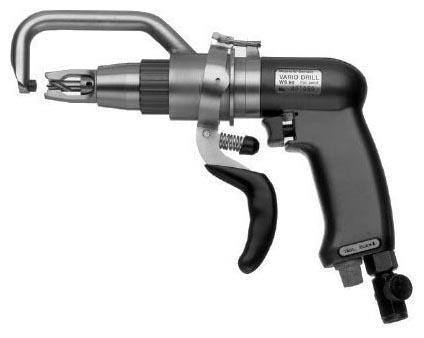

Spot-weld remover General workshop equipment > VAS 882 001
G14348880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

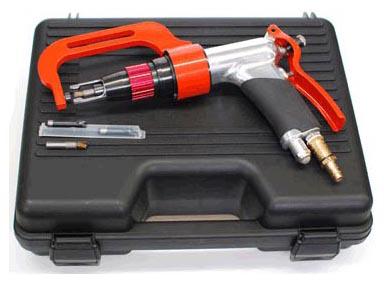

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14348881Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14348882Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14348883Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14348884Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G14348885Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14348886Courtesy of PORSCHE CARS NORTH AMERICA, INC.
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14348887Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14348888Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14348889Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14348890Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14348891Courtesy of PORSCHE CARS NORTH AMERICA, INC.

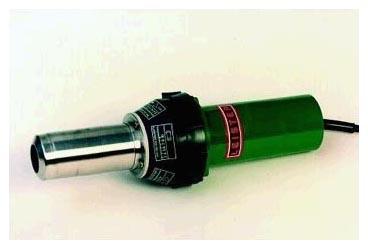

Hot-air blower General workshop equipment > V.A.G 1416
G14348892Courtesy of PORSCHE CARS NORTH AMERICA, INC.

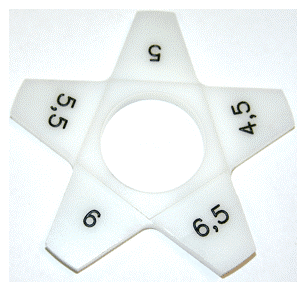

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14348893Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14348894Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14348895Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Bead of adhesive   Application depth 3 mm
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Bead of adhesive   Application depth 3 mm
Drill bit   Diameter 6.6 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive Spread out evenly Application depth 0.5 mm
Applying adhesive   Application depth 3 mm
