WM, 50811905 Removing And Installing Cross Panel (Lower Section): Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TOOLS DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

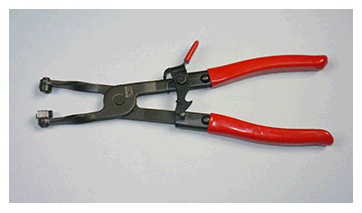

| Spring Band Clamp Pliers | Vehicle-specific workshop equipment | > VAS 6890 |
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

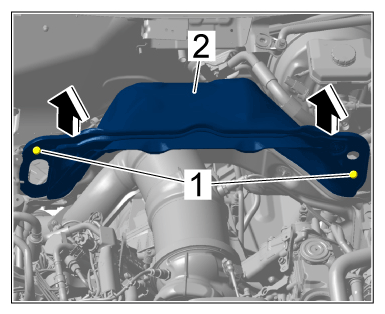

| Screws securing cross panel (lower section) to body | Item 1 | Tightening torque | 10 (7.5 ftlb.) Nm | ||
|
Cross panel (lower section) |
|||||
| Screw securing refrigerant line to bulkhead | M6 x 25 | Tightening torque | 9 (6.5 ftlb.) Nm |
