WM, 50811900 Removing And Installing Cross Panel (Upper Section): Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

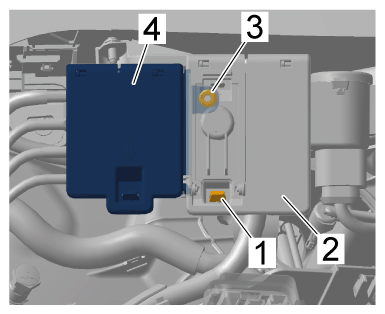

| Nut securing power distributor at the front to external power connection | Item 3 | Tightening torque | 9 (6.5 ftlb.) Nm | ||
|
Power distributor, front |
|||||
| Nuts securing external power connection to bracket | Item 1 | Tightening torque | 3 (2 ftlb.) Nm | ||
| Spring nuts securing heat protection panel to cross panel | Item 1 | Tightening torque | 2.5 (1.75 ftlb.) Nm | ||
| Screws securing cross panel to bracket | Item 1 | Tightening torque | 10 (7.5 ftlb.) Nm |
