WM, 505619 Removing And Installing Front Wheel Housing Liner: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value

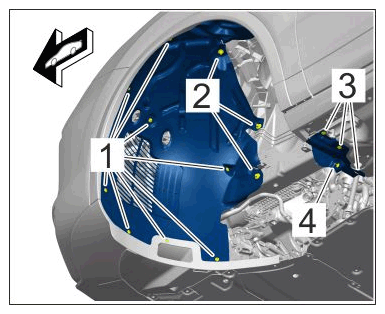

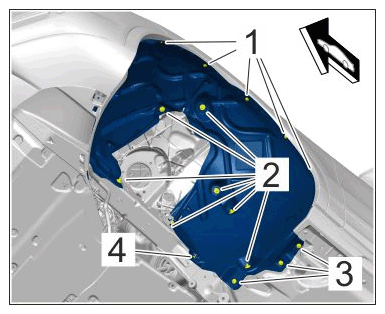

Screws securing front wheel housing line, to front end	Item 1 (screws)	Tightening torque	2.0 (1.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Screws Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Screws
Nuts securing front wheel housing liner to front end	Item 2	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts
Screws securing front wheel housing liner to underbody	Item 3	Tightening torque	3.0 (2.0 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts
