WM, 505519 Removing And Installing Front Wing: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value

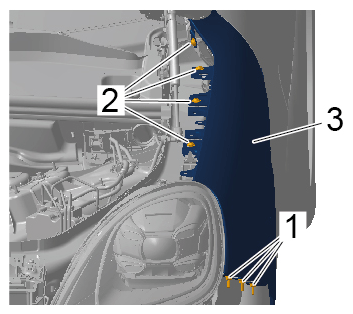

Fastening screws for headlight mounting	Item 2	Tightening torque	6 (4.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Headlight mounting

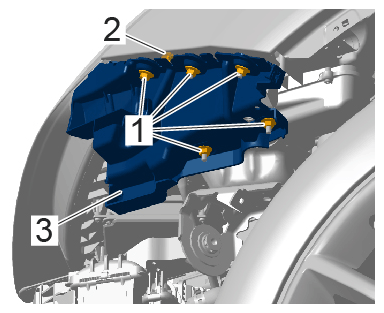

Nuts securing retaining strip to wing	Item 1	Tightening torque	4 (3 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

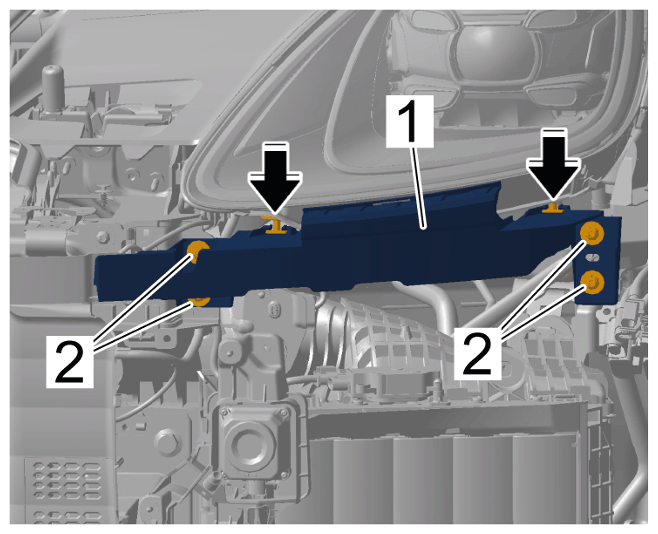

Front wing to lower front-end	Item 1 and 2	Tightening torque	10 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

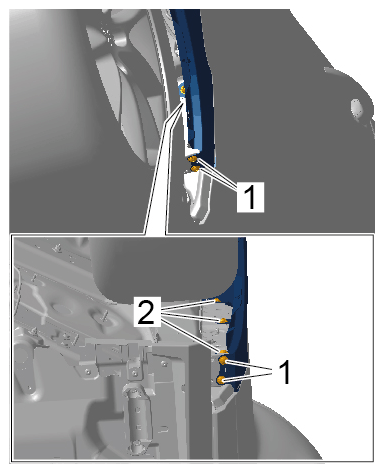

Front wing to upper front-end	Item 1 and 2	Tightening torque	10 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

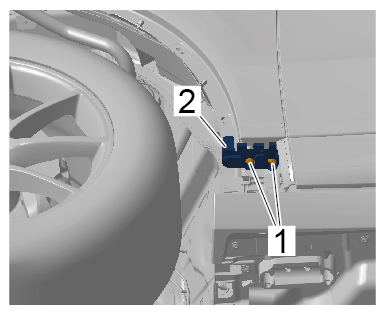

Bracket to wing	Item 1	Tightening torque	2 (1.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

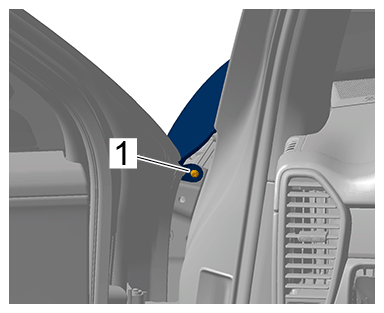

Front wing - rear fastening screw, top	Item 1	Tightening torque	2 (1.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper fastening screw
