WM, 505319 Removing And Installing Wing Connection Panel: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

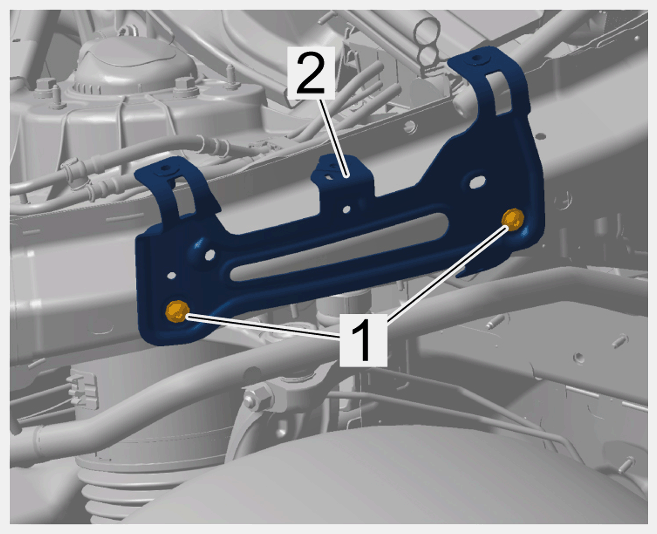

| Front wing connection panel to upper frontend | Item 1 | Tightening torque | 10 (7.5 ftlb.) Nm | ||
|
Screws |
|||||

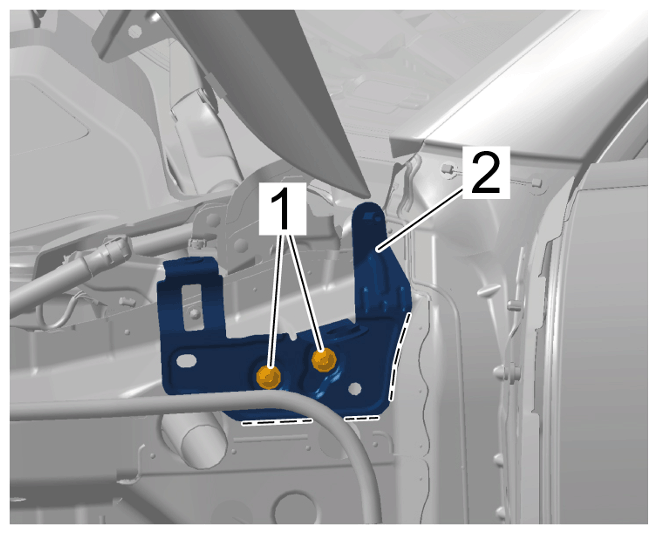

| Rear wing connection panel to upper frontend | Item 1 | Tightening torque | 10 (7.5 ftlb.) Nm | ||
|
Screws |
|||||
| Sensor for body to body (front) | Internal hexagon round-head bolt, M6 x 25 | Tightening torque | 8 (6 ftlb.) Nm |
