WM, 505219 Removing And Installing Intermediate Piece: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

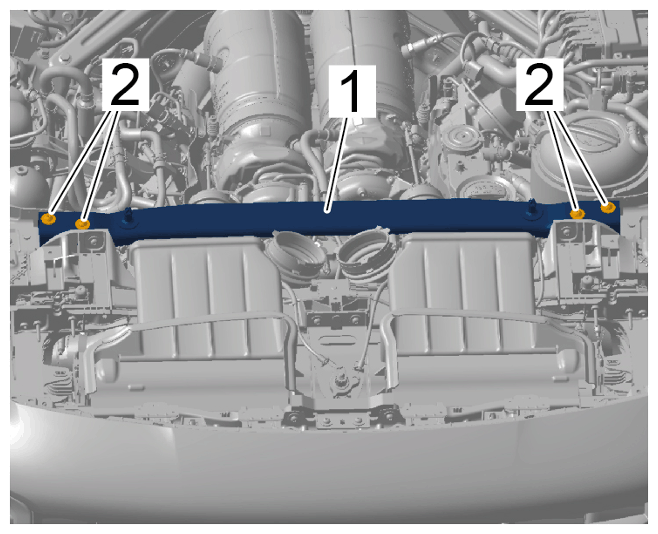

| Screws securing intermediate piece to body front section | Item 2 | Tightening torque | 10 (7.5 ftlb.) Nm | ||
|
Screws securing intermediate piece to body front section |
|||||

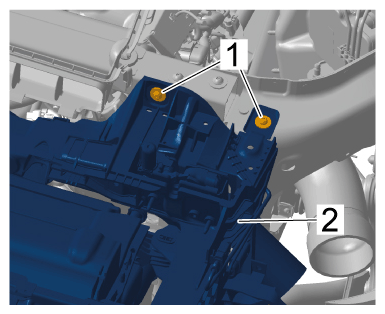

| Screws securing upper lock carrier to body front section | Item 1 | Tightening torque | 8 (6 ftlb.) Nm | ||
|
Screws |
