WM, 503855 Replacing Lock Carrier: Notes

WARNING: This page is about a different car, the 2021 Porsche Cayenne and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

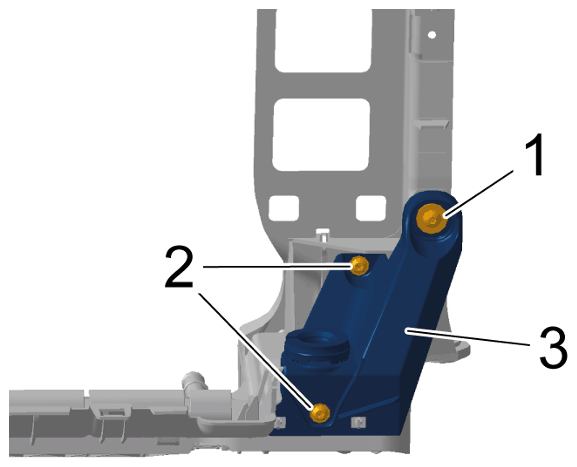

Screw securing radiator holder to lock carrier	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for radiator holder
Screws securing radiator holder to lock carrier at the side	Item 2	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for radiator holder

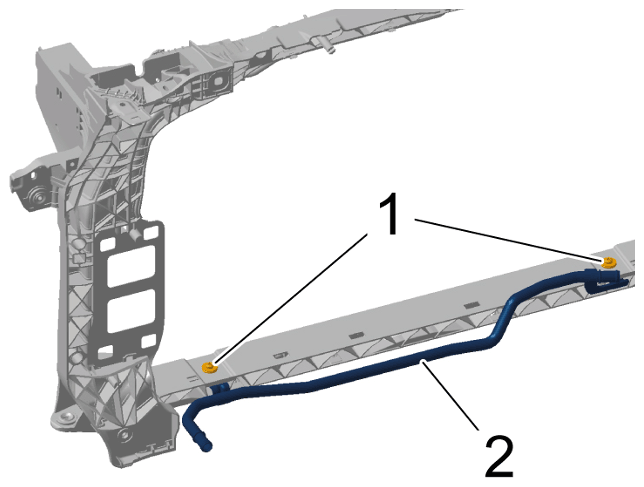

Screws securing lower coolant line to lock carrier	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

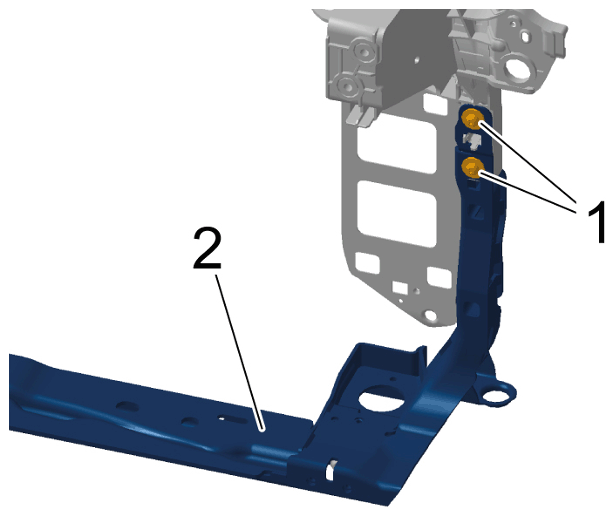

Screws securing lock carrier lower part to lock carrier upper part (off-road)	Item 1	Tightening torque	9 (6.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lower part of lock carrier
