WM, 519319 Removing And Installing Cover For Centre Underbody: Notes
WARNING: This page is about a different car, the 2021 Porsche Cayenne, 2020 Porsche Cayenne, and 2019 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

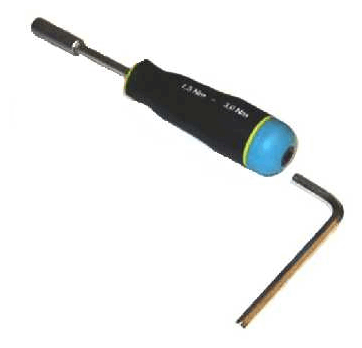

| torque screwdriver | Commercially available tool | > Nr.89 Pos.5 |
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

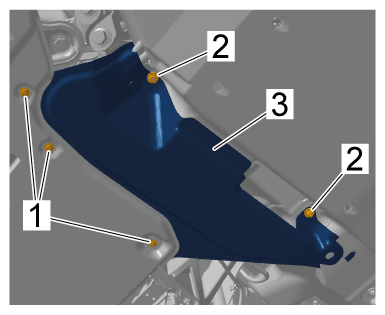

| Side section of front underbody cover | Item 2 | Tightening torque | 3 N.m (2 ft.lb) | ||
|
Fastening screws for front underbody cover |
|||||

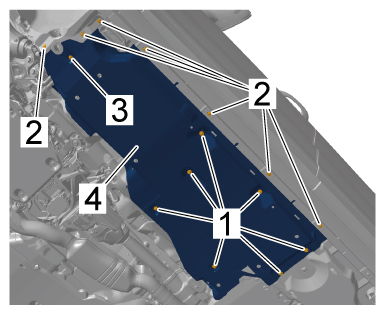

| Fastening screws for centre underbody cover | Item 2 and 3 | Tightening torque | 3 N.m (2 ft.lb) | ||
|
Cover for centre underbody |
|||||
| Fastening nuts for centre underbody cover | Item 1 | Tightening torque | 2 N.m (1.5 ft.lb) | ||
|
Cover for centre underbody |
