Removing Control Unit For Fuel Pump

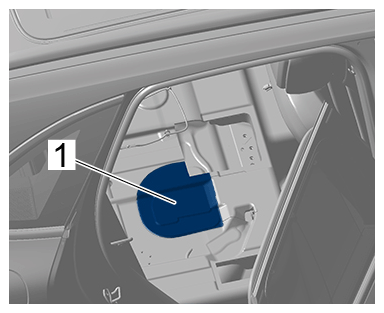

Fold over carpet -1- at the cut-out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carpet

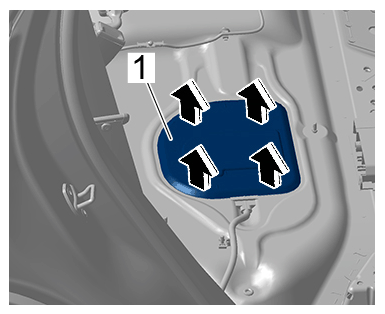

Unclip cover -1- in direction of -Arrows- and li i 't it up until electric plug connection for the fuel pump control unit is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

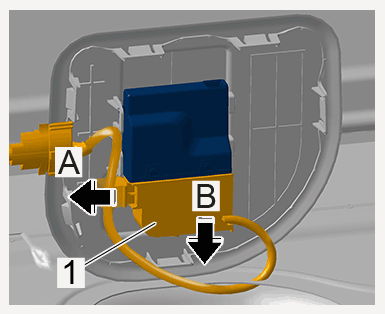

Release electric plug connection -1- (-arrow A-) and disconnect it -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

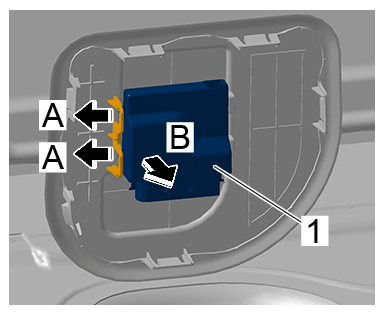

Unclip fuel pump control unit -1- (-arrows A-) and remove it -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump control unit
