Technical Values

Location	Description	Type	Basic value
Fuel line nut	M6	Tightening torque	9 Nm (6.6 ftlb.)
Fastening screw for high-pressure fuel line	Replace	tightening torque	8 Nm (5.9 ftlb.)
Fastening screw for high-pressure fuel line		final tightening torque	45°
Union nut for fuel line	Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting.	tightening torque of	10 Nm (7.4 ftlb.)
Cover for fuel line at front right wheel housing	Item 2	Tightening torque	4.5 Nm (3.25 ftlb.)

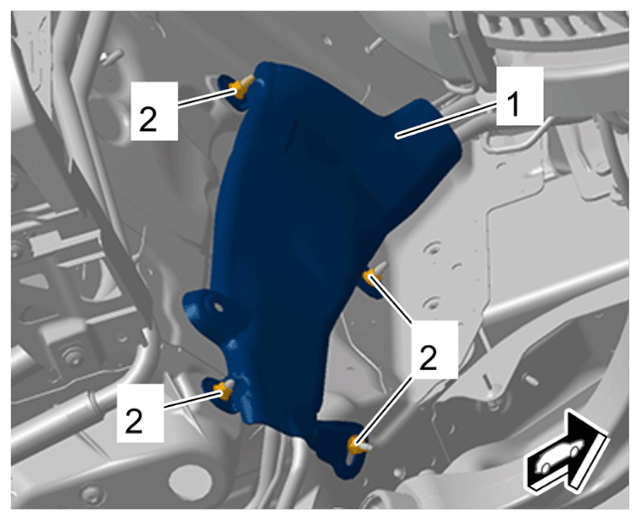

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover on fuel line, front right
Heat shield on underbody, right	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)

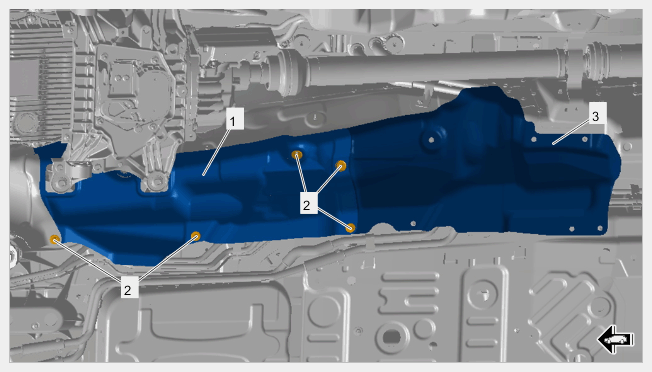

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shields on right underbody
