Remove Fuel Tank

WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    • → Avoid contact with hot parts or sources of ignition.
    • → Use suction to remove ignitable vapours.
    • → Attach warning sign in a clearly visible position.
    • → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    • → Secure collection containers/vessels to prevent them from tipping over.
WARNING: Caustic fluids
  • Danger of chemical burns
    • → Wear personal protective gear.
    • → Ensure that there is good ventilation.
    • → Avoid contact with caustic fluid.
    • → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
  1. Remove cover -1-  in floorpan.

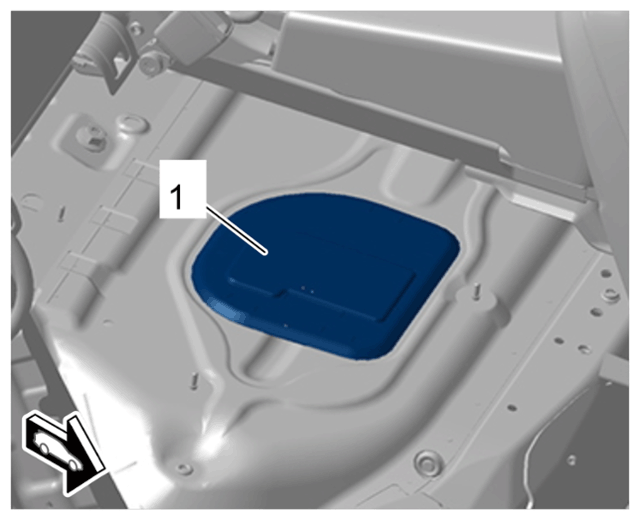

    G15241149Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover in floorpan

  2. Disconnect connections at the fuel pump unit -1-  .

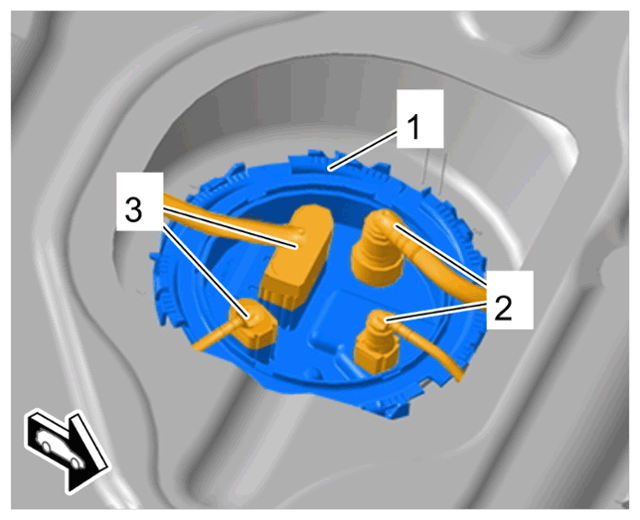

    G15241150Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel pump unit connections

    1. 2.1  Have suitable stoppers ready for closing off the line connections and connection openings.
    2. 2.2  Release and disconnect lines -2-  .
    3. 2.3  Soak up any emerging fuel using suitable aids.
    4. 2.4  Close off line connections and connection openings using suitable stoppers.
    5. 2.5  Release and disconnect electric plug connections -3-  .
  3. Remove protective cover -1-  .

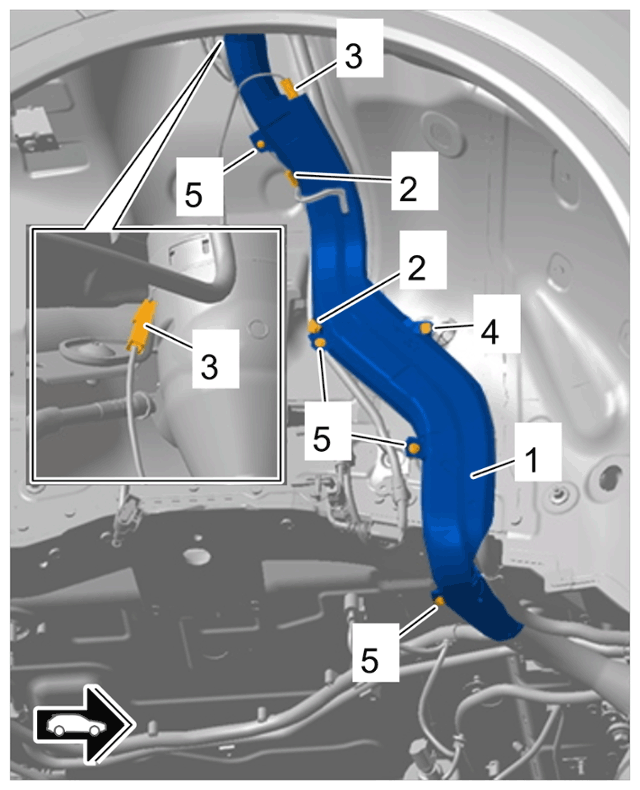

    G15241151Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protective cover

    1. 3.1  Unclip clips -2-  .
    2. 3.2  Disconnect ground line -3-  .
    3. 3.3  Screw off nut -4-  .
    4. 3.4  Unscrew screws -5-  and pull threaded plug off protective cover -1-  .
    5. 3.5  Remove protective cover -1-  .
  4. Loosen fuel filler tube -1-  .

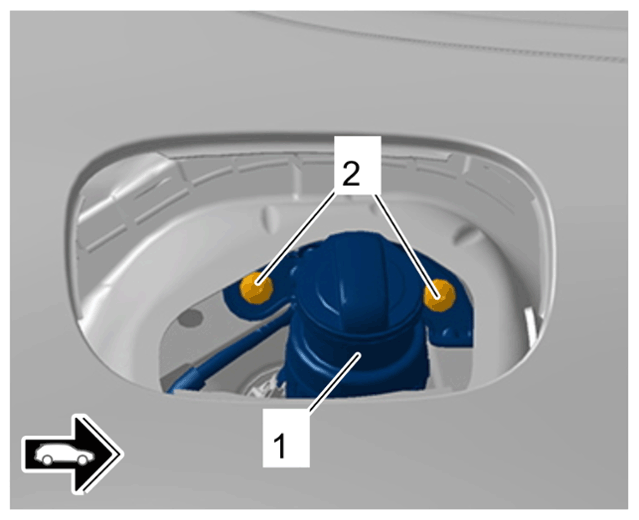

    G15241152Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel filler tube on holder

    1. 4.1  Unscrew and remove screws -2-  .
  5. Expose fuel tank -1-  .

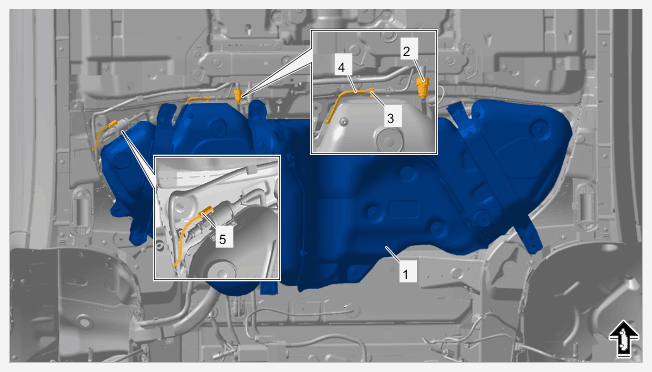

    G15241153Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank

    1. 5.1  Have suitable stoppers ready for closing off the line connections and connection openings.
    2. 5.2  Release and disconnect line -2-  .
    3. 5.3  Close off line connection and connection opening using a suitable stopper.
    4. 5.4  Loosen spring band clamp -3-  using > VAS 6890 - spring band clamp pliers  and pull off line -4-  .
    5. 5.5  Release and disconnect electric plug connection -5-  .
  6. Support the fuel tank -1-  using a suitable base -2-  and > VAS 6931 - engine and gearbox jack-3-  .

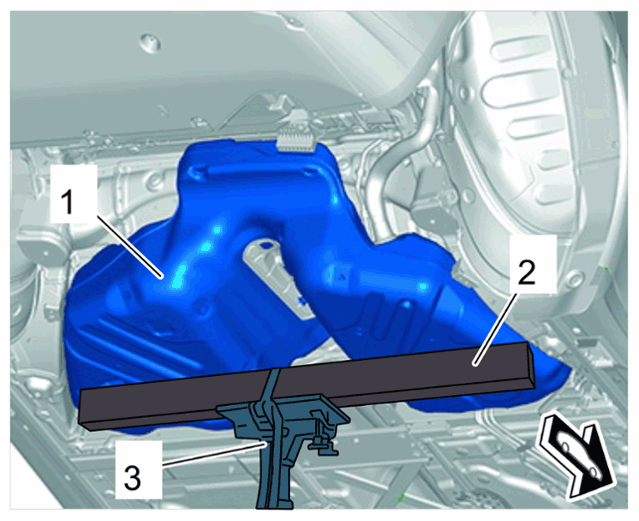

    G15241154Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank on transmission jack (shown as an example)

    Information

    You will need a second mechanic to help you with this step.

  7. Remove the fuel tank -1-  .

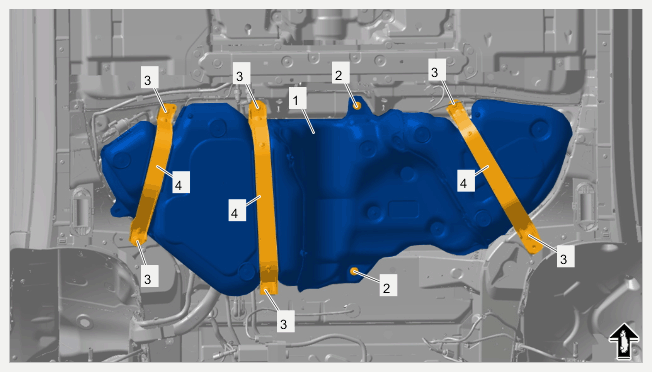

    G15241155Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank mount

    1. 7.1  Unscrew and remove screws -2 and 3-  .
    2. 7.2  Carefully lower the fuel tank -1-  using > VAS 6931 - transmission and engine jack  while another person holds the fuel tank -1-  securely.
    3. 7.3  Remove fuel tank -1-  and restraining straps -4-  from the > VAS 6931 - transmission and engine jack  .
