Tools And Materials: Notes

G15241099

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

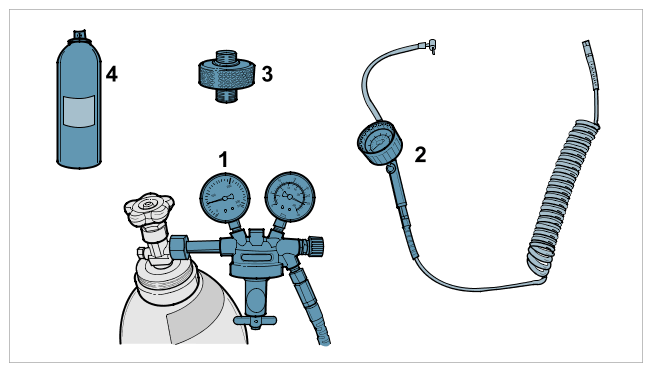

Tools for leak test

1	Commercially available pressure gauge unit (pressure reducer)
2	> VAS 6231 - Air-Spring Strut Filling Unit (connection between pressure reducer and adapter)
3	> V.A.G 1318 - K-Jetronic Tester (for fitting on the fuel supply line)
4	Commercially available leak-locating spray

G15241100

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

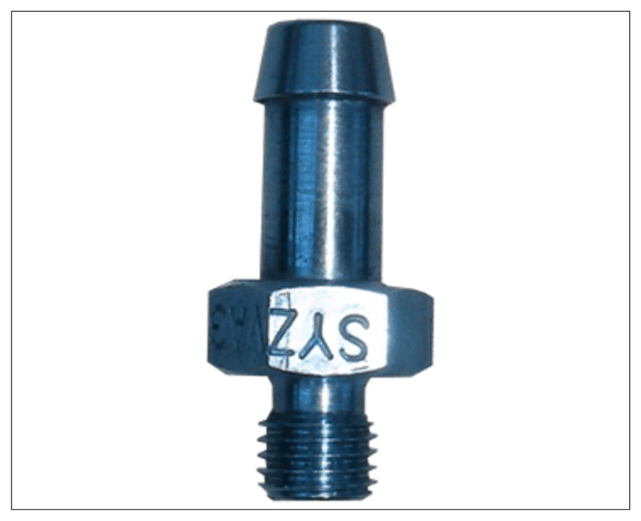

Adapter VAG 1318/11

G15241101

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

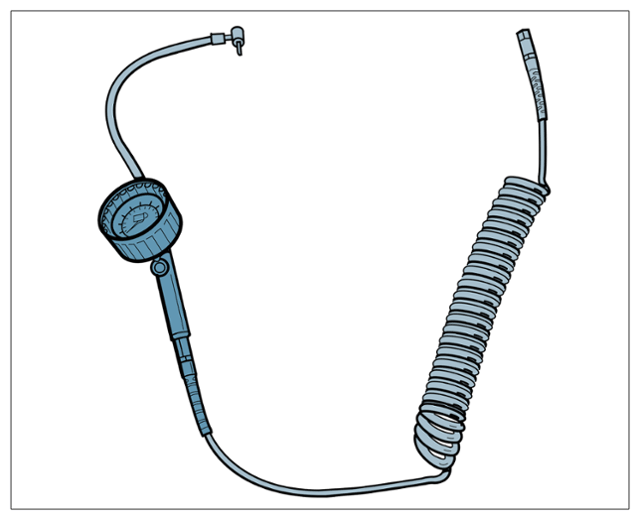

Filling unit VAS 6231

G15241102

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

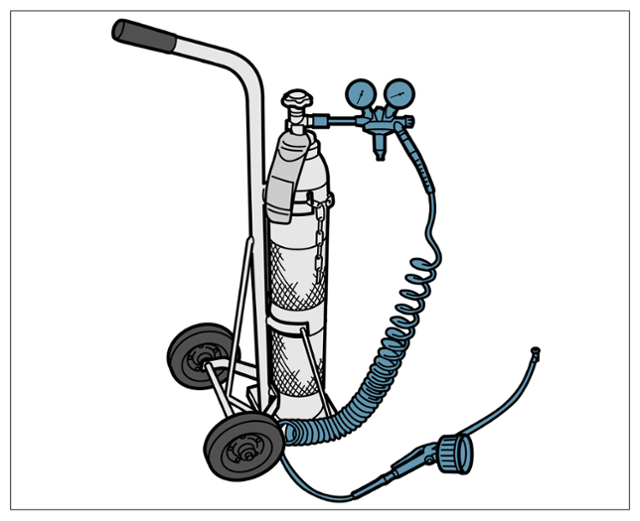

Test equipment setup
