- Loosen battery ground strap.
> 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
- Remove left rear wheel.
> 440519 REMOVING AND INSTALLING WHEEL
- Remove carbon canister and leave it hanging with lines connected.
> 202519 REMOVING AND INSTALLING CARBON CANISTER

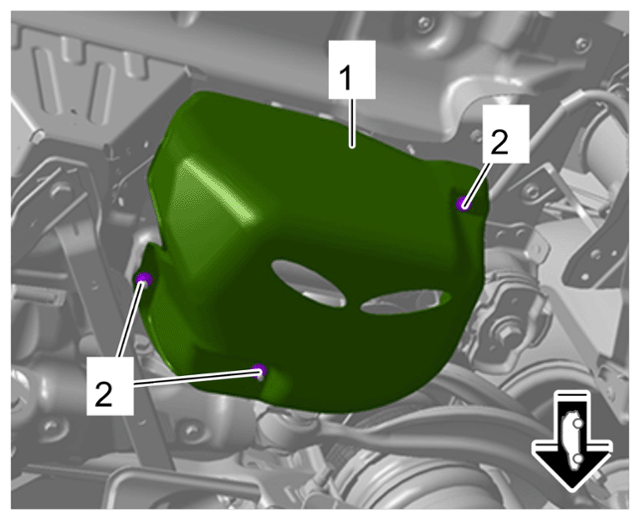

- Unscrew nuts -2-
and remove stone guard for valve unit
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Stone guard for valve unit
- Lower the headliner.
> 708419 REMOVING AND INSTALLING HEADLINER
- Remove rear apron.
> 635519 REMOVING AND INSTALLING REAR APRON
- Remove subwoofer.
With High-End sound system (Bose)
(I-no. 9VL)
> 913619 REMOVING AND INSTALLING SUBWOOFER (BOSE)
With Top Premium sound system (Burmester)
(I-no. 9VJ)
> 913619 REMOVING AND INSTALLING SUBWOOFER (BURMESTER)
- Remove rear-end electronics.
> 578919 REMOVING AND INSTALLING REAR-END ELECTRONICS
- Remove right luggage rail.
- 9.1

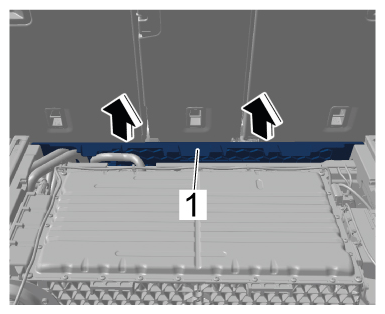

Remove floor cover -1-
in direction of -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Floor cover
- 9.2

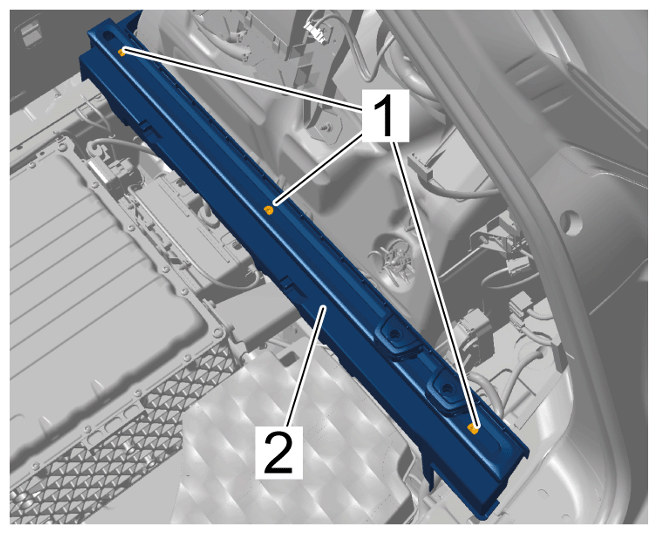

Unscrew fastening screws -1-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening screws
- 9.3
Remove right luggage rail -2-
from luggage compartment.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Right luggage rail
- Remove left tail light.
> 943119 REMOVING AND INSTALLING TAIL LIGHT
