Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

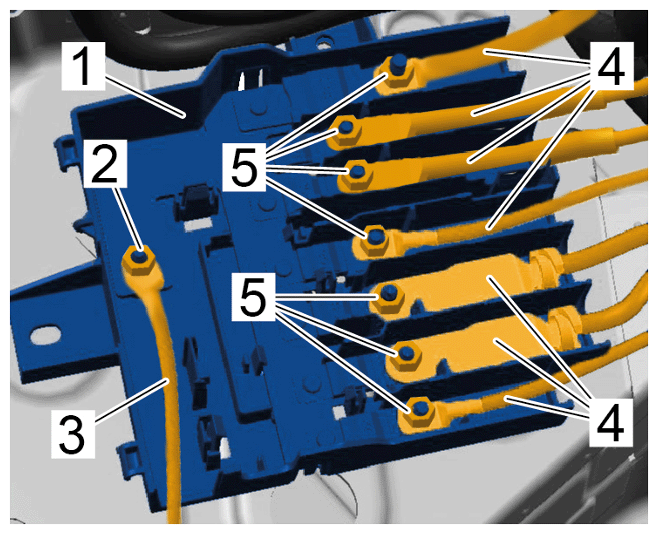

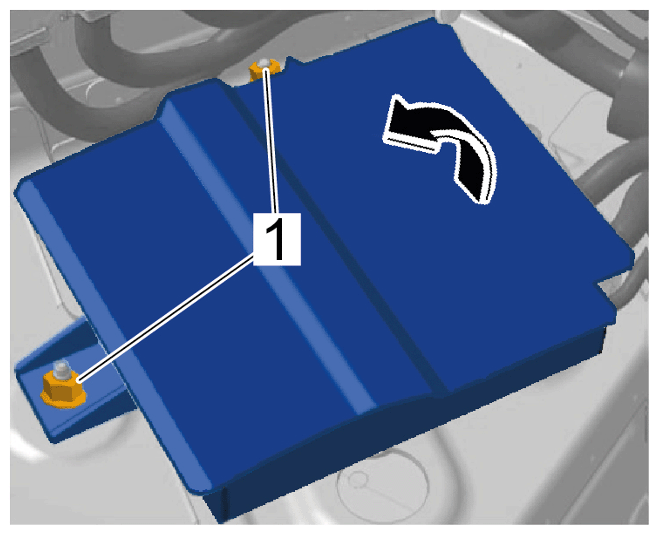

| Fastening nuts securing power distributor (main fuse box) to body | item 1 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Power distributor |
|||||
| Fastening nuts in power distributor (main fuse box) | item 2 and 5 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Power distributor |
