Removing Power Distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

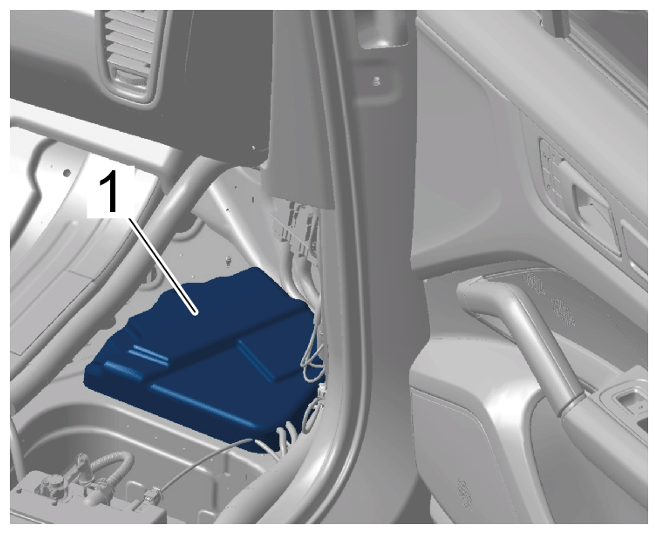

Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

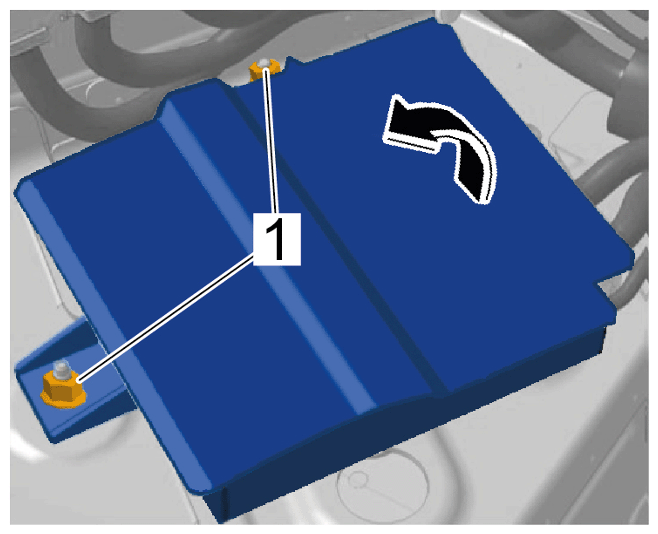

Cover on power distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

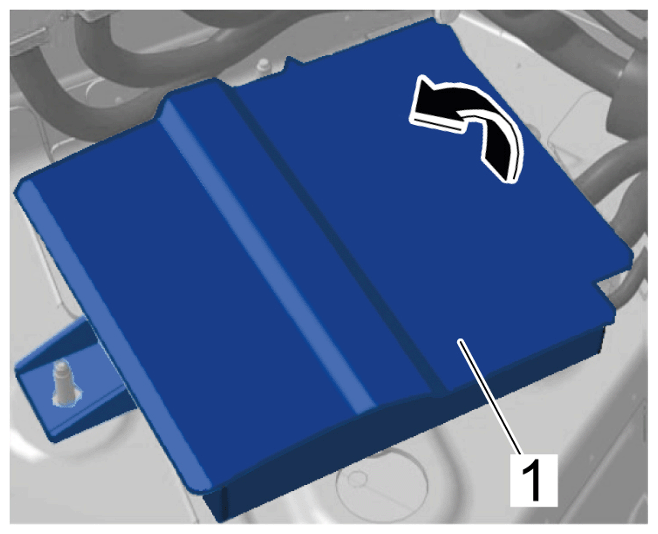

Cover on power distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

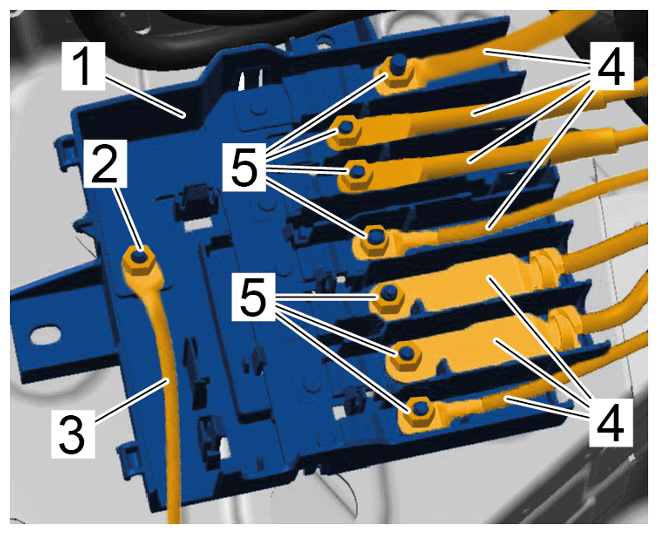

Power distributor

1. 4.1  Unscrew fastening nut -2-  and remove positive line -3-  .

   Information

   The number of electric lines will vary depending on equipment.

2. 4.2  Mark electric lines -4-  for the relevant fuse element.
3. 4.3  Unscrew fastening nuts -5-  and remove electric lines -4-  .
4. 4.4  Remove power distributor -1-  .
