97 Lines -- 9YA - Cayenne (9YA)
>>
WM, 978509 - Loosening And Securing Ground Strap For Battery
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Nut on battery ground terminal
Item 2
Tightening torque
5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

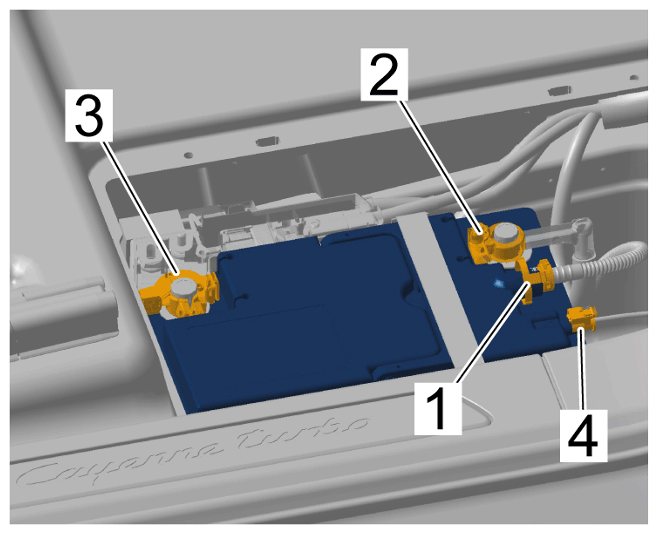

Ground strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
