Loosening Fuse Box In The Luggage Compartment

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical lo ads before disconnecting or removing them.

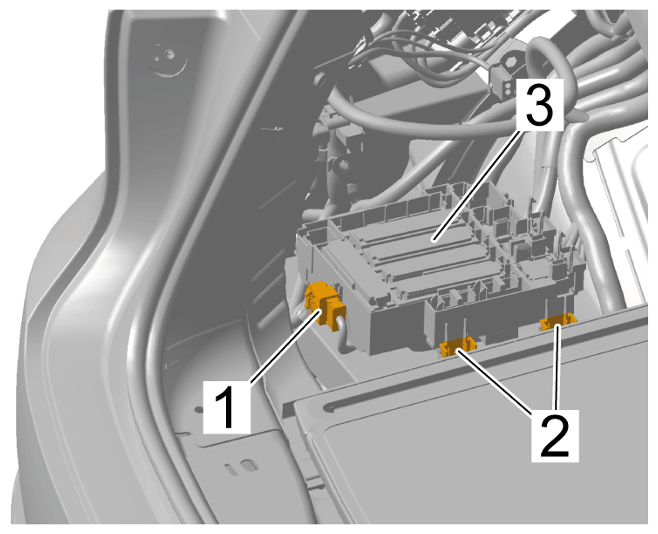

1. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

2. Unclip locking lugs -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking lugs

3. Swivel out fuse box in the luggage compartment -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuse box in luggage compartment
