Loosening Fuse Box In Front Left FOOTWELL

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

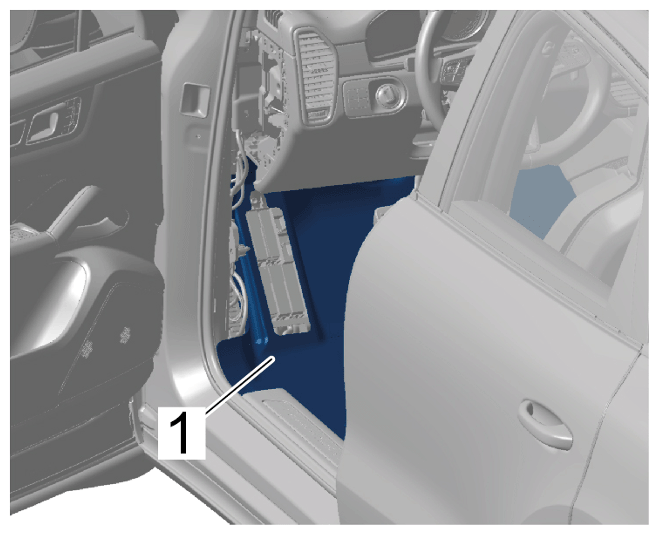

1. Fold over carpet -1-  until the fuse box in the front left footwell is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Carpet

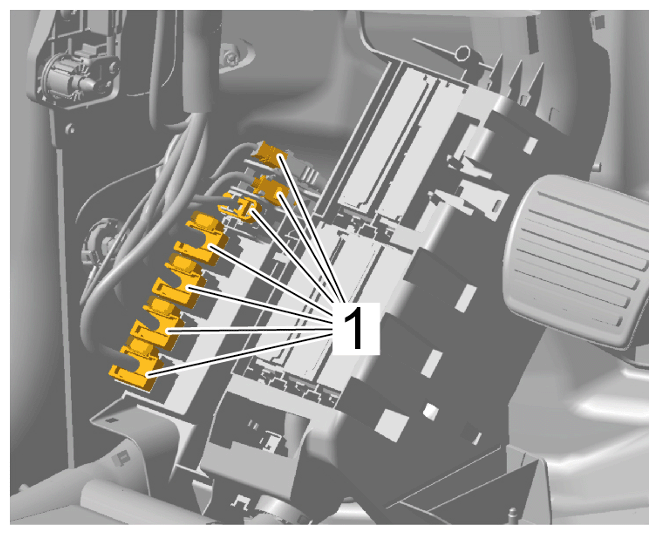

2. Release and disconnect electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

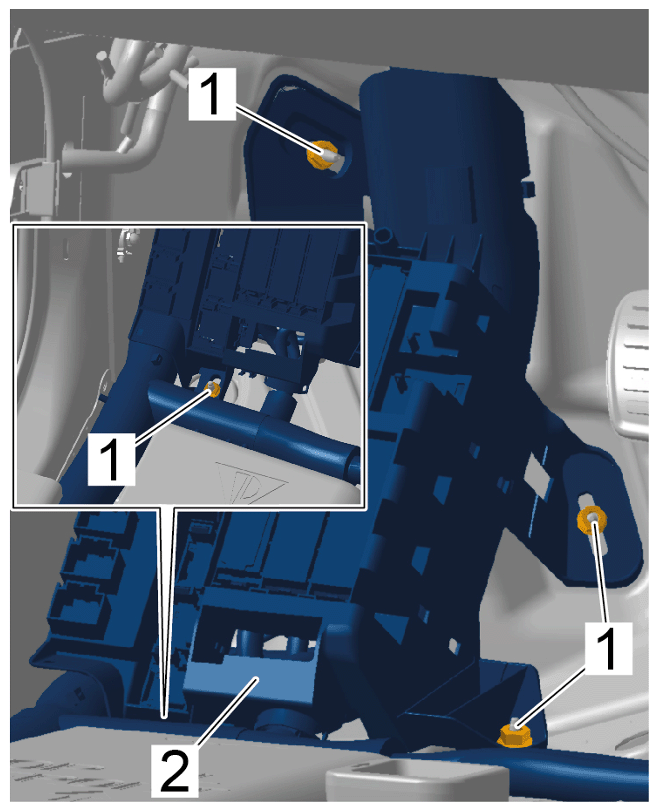

3. Unscrew fastening nuts -1-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts

4. Swivel out fuse box in front left footwell.
