Loosening Fuse Box At Side Of Dashboard

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

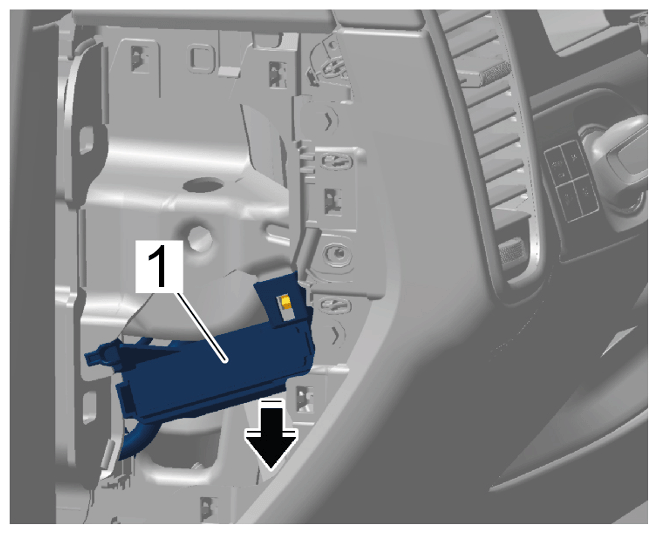

1. Unclip bracket -1-  and unscrew it from instrument panel bracket -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

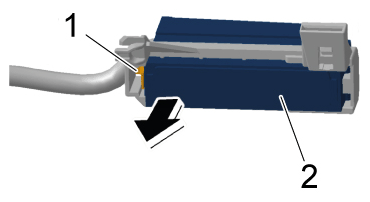

2. Release retaining lug -1-  and remove fuse box at side of dashboard -2-  from the bracket -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuse box at side of dashboard
