Removing And Installing Optical Contacts On Connector Side

Guide release tool from > VAS 1978/35-33 - release tool set into the opening on the secondary lock and lift up the locking mechanism -Arrow- until the lock engages at its top position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Secondary lock
Fit release tool from > VAS 1978/35-33 - release tool set on the primary lock and lift up the locking mechanism.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primary lock

Information

If it is not possible to pull out the optical waveguides, check again that the secondary lock is completely unlocked and that the primary lock is raised sufficiently.

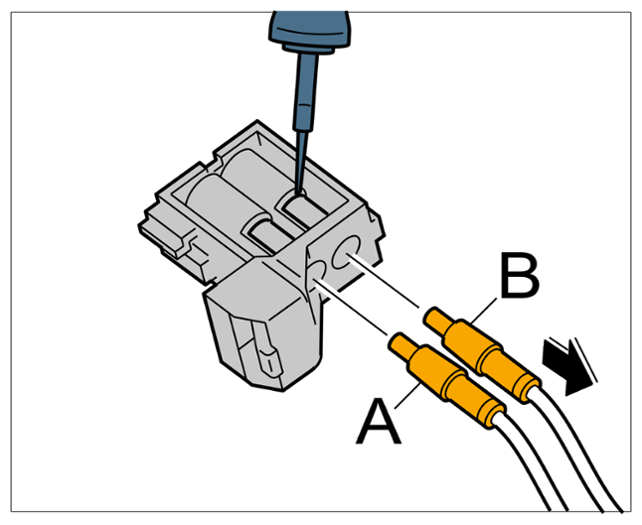

Carefully pull out optical waveguides -A and B- (-arrow-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Optical waveguide
Check locking mechanisms, connector housing and contacts for possible damage and replace damaged parts if necessary.
