Installing Optical Contacts On Connector Side

Information

Do not remove dust boot until just before connecting contacts.

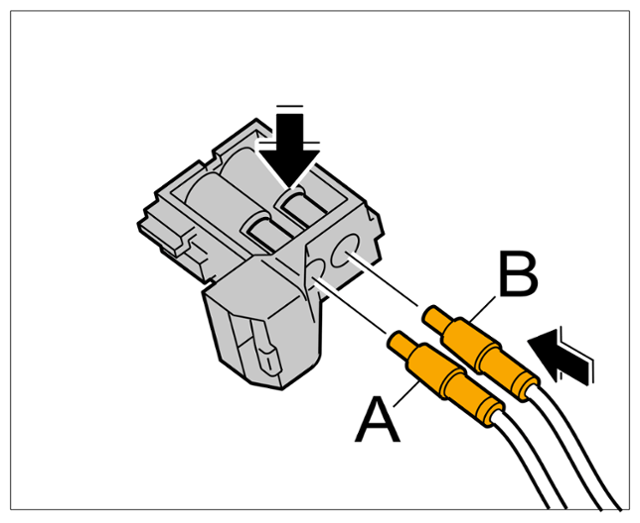

Push optical contacts -A and B-  into the connector housing until they engage securely and close the primary lock.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Primary lock

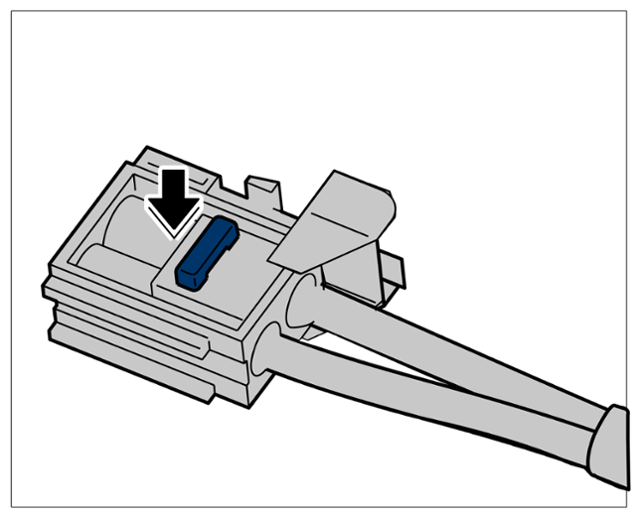

Close the secondary lock -Arrow-  and check that the optical contacts are fitted securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Secondary lock
