Removing Wire Harness For Rear Spoiler

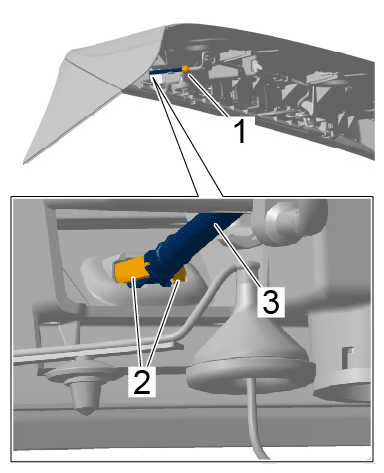

  1. Release and pull off hose on spray nozzle -1-  .
    G15261896Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose for spray nozzle

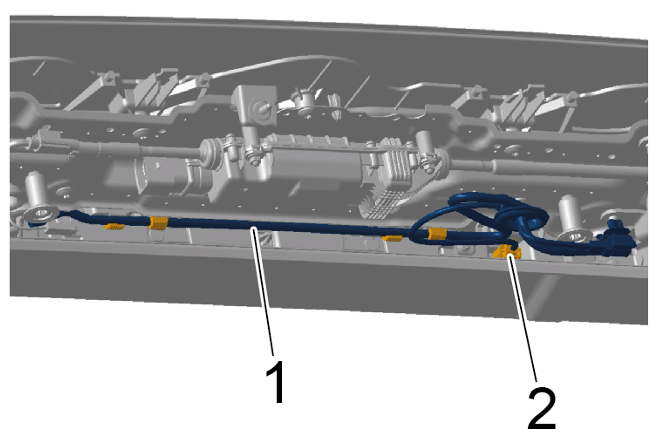

  2. Unclip windscreen-washer hose -1-  .
    G15261897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Windscreen-washer hose

  3. Release and disconnect electric plug connection for third brake light -2-  .
    G15261898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  4. Remove wire harness for rear spoiler.
